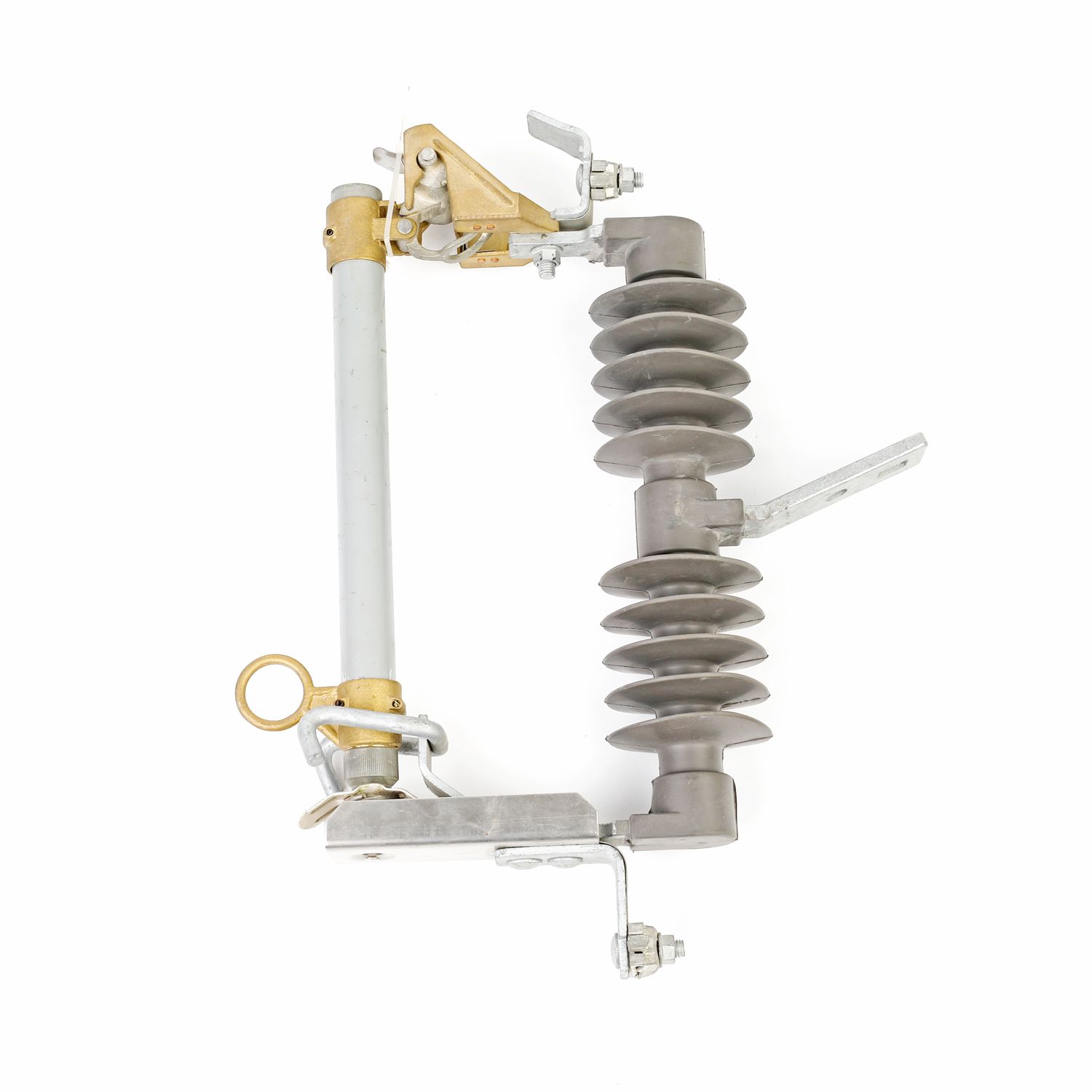

The 11–38kV High Voltage Fuse Cutout is designed to protect overhead distribution lines and electrical equipment such as transformers and capacitors from overloads and short circuits. Available in polymer or porcelain construction, this high voltage fuse cutout delivers reliable outdoor performance under various climates. The wide operating range of 11-38kV fuse cutout makes it suitable for utility companies and renewable energy systems requiring flexible protection and service continuity.
• Compatible with multiple voltage levels (11–38kV)
• Polymer or porcelain insulation options
• Strong arc-extinguishing performance
• UV-resistant and corrosion-resistant hardware
• Suitable for long-term outdoor installation
Overhead Distribution Line Protection：Installed inline to protect circuits from fault currents.
Pole-Mounted Transformer Safety：Mounted before transformer input for overload protection.
Capacitor Banks：Prevents damage from spikes and abnormal load conditions.
Renewable Power Grid Systems：Used in solar and wind power distribution networks.
Rural & Urban Utility Networks：Standard protection device for public distribution grids.
| Rated voltage(KV) | Rated current(A) | Rated interrupting current(KA) | Lightning impulse withstand voltage to ground (BIL KV) | Minimum power frequency withstand dry voltage to ground (KV) | Minimum creepage distance(mm) |
| 11-12 | 100/200 | 12 | 110 | 42 | 220 | |
| 12-15 | 100/200 | 12 | 120 | 5p | 320 | |
| 24-27 | 100/200 | 12 | 150 | 65 | 470 | |
| 33-38 | 100/200 | 8 | 170 | 70 | 660 |
Every high voltage fuse cutout undergoes mechanical endurance testing, high-voltage insulation verification, temperature cycling, and corrosion resistance evaluation before delivery.
Q1: Does this model support fuse link replacement?
A1: Yes, the fuse link can be easily replaced without removing the entire cutout.
Q2: Is it available in polymer and porcelain versions?
A2: Yes, both insulation types are available.
Q3: Can it be installed in coastal or polluted regions?
A3: Yes, corrosion-resistant hardware models are available.
Q4: Applicable voltage range?
A4: 11kV / 15kV / 24kV / 33kV / 38kV.
