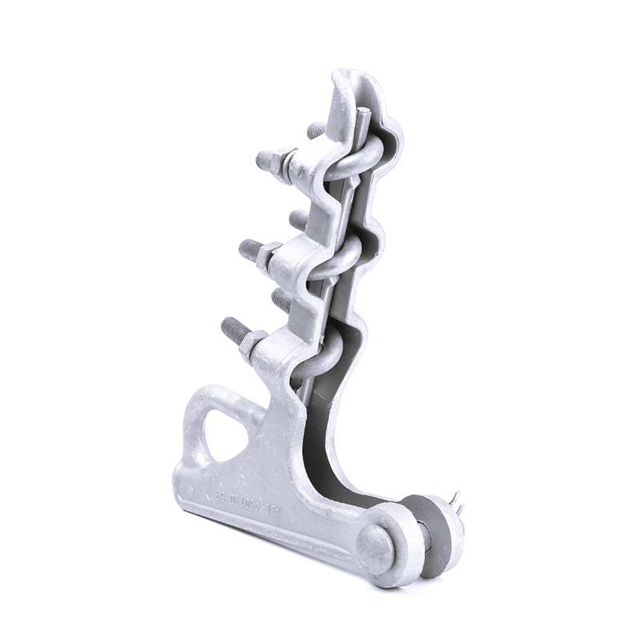

Our Tension clamp will be your reliable tool and companion.Our tension clamp is used to fix the conductor or lightning conductor to the non linear tower tension insulator string, for anchoring purposes, and also for fixing the stay wire of the stay wire tower.
Our advantages
1.Effectively prevent short circuit accidents caused by overlapping small animals or foreign objects such as birds and animals;
2.Preventing electrical accidents caused by climate issues;
3.Avoid personal injury or death accidents caused by pedestrians accidentally touching exposed electrical contacts;
4.The fully enclosed operation of the protective cover and measuring device can prevent illegal elements from stealing electricity;
5.Buckle structure, easy to install, reusable
Parameter
Stock No. | Connector Included | Conductor Dia.Inch | U-Bolt | Ultimate Strength Lbs. | Approximate Shipping Weight Kg./100Pcs | Strandard Pkg.Qty./Carton | |||
Type | Stock No. | Min. | Max. | No. | Size Inch | ||||
E2047-01 | Socket | E0212 | 0.20 | 0.47 | 2 | 1/2 | 7,000 | 153.00 | 25 |
E2047 | None | 100.00 | 25 | ||||||
E3060-01 | Socket | E0258 | 0.30 | 0.60 | 2 | 1/2 | 15,000 | 182.00 | 25 |
E3060 | None | 110.00 | 25 | ||||||
E2059-01 | Socket | E0258 | 0.20 | 0.59 | 3 | 1/2 | 15,000 | 191.00 | 25 |
E2059-02 | Clevis | E0613 | 191.00 | 25 | |||||
E2059 | None | 130.00 | 25 | ||||||
E4886-01 | Socket | E0234 | 0.48 | 0.86 | 4 | 1/2 | 23,000 | 380.00 | 12 |
E4886-02 | Clevis | E0614 | 380.00 | 12 | |||||
E4886 | None | 300.00 | 12 | ||||||
E5975-01 | Socket | E0225 | 0.71 | 1.20 | 5 | 5/8 | 30,000 | 740.00 | 6 |
E5975 | None | 580.00 | 6 | ||||||
