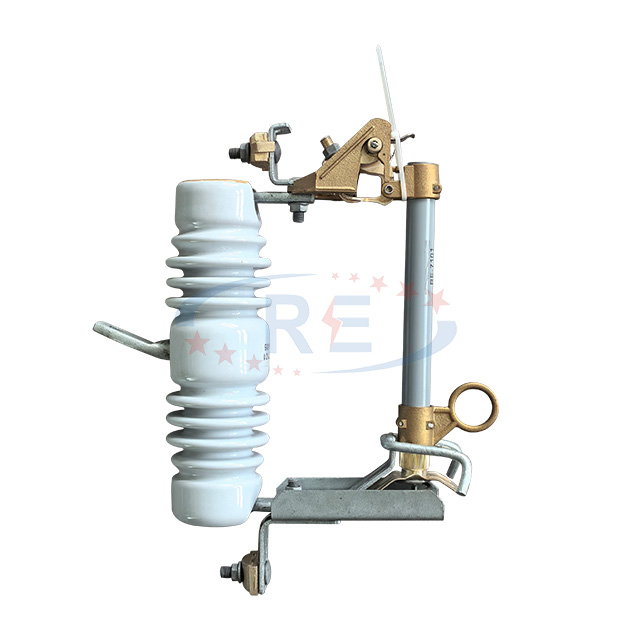

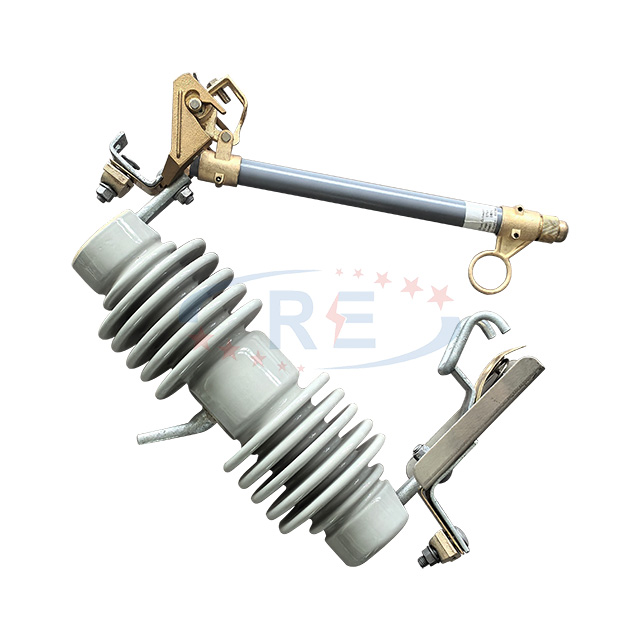

Drop-out fuse

The 10kV-15kV Fusibles with Load Break-Porcelain are engineered for reliable overcurrent and short-circuit protection in overhead distribution networks. Designed for safe load breaking under live operating conditions, this 10kV-15kV Fusible with Load Break-Porcelain ensures stable protection for transformers, reclosers, capacitor banks, and branch feeder circuits. With high-strength porcelain insulation and hot-dip galvanized steel hardware, this load break fuse delivers long-term electrical insulation, high mechanical endurance, and excellent resistance to UV, humidity, and corrosive outdoor environments. The visible break indication provides immediate confirmation of circuit isolation, improving operator safety and outage management efficiency.

Product Advantages:

• High mechanical and electrical endurance for distribution systems

• Porcelain insulation provides strong dielectric and environmental resistance

• Supports hot-stick load breaking for safe live-line operation

• Weatherproof structure suitable for harsh climates

• Fast and visible fuse dropout indication

Application Scenarios & Installation Method:

This 10kV-15kV Fusibles with Load Break-Porcelain is widely used in:

• Overhead distribution power lines

• Pole-mounted transformer protection

• Rural electrification and utility extension projects

• Branch feeder circuits and sectionalizing points

• Renewable energy grid connections (solar & wind)

How to Apply:

• Mount the fuse cutout on the pole crossarm or bracket

• Connect the incoming overhead conductor using crimped terminals

• Install the fuse link and close the operating arm

• Apply test operation using a hot-stick to confirm reliable movement

• Energize and inspect fuse tension before commissioning

Quality Assurance:

• Complies with IEC/IEEE/ANSI utility fuse standards

• 100% electrical, dielectric, load break and mechanical testing

• Hot-dip galvanized hardware undergoes salt-spray corrosion tests

• OEM and voltage customization available

FAQ:

Q1: Can this load break fuse be used in coastal or industrial areas?

A1: Yes, the porcelain insulation and galvanized hardware ensure long-term resistance.

Q2: Does it support live-line opening with a hot stick?

A2: Yes, it is specifically designed for live-line operation.

Q3: What fuse link types are compatible?

A3: Standard T-type and K-type links are supported.

Our advantages：

1. Zhejiang Reacon Electric Co.Ltd., is a professional manufacturer and seller of fuses

2. The copper parts are hot-dip galvanized, which has strong corrosion resistance and is safer and more reliable

3. Using high-quality contacts: with a long creepage distance, good waterproof performance, and reduced maintenance in the later stage

4. Stainless steel cover: The steel parts are hot-dip galvanized

5. High strength insulators: Ceramic insulator brackets have advantages such as high temperature resistance, smooth color, and strong hardness

Parameter：
