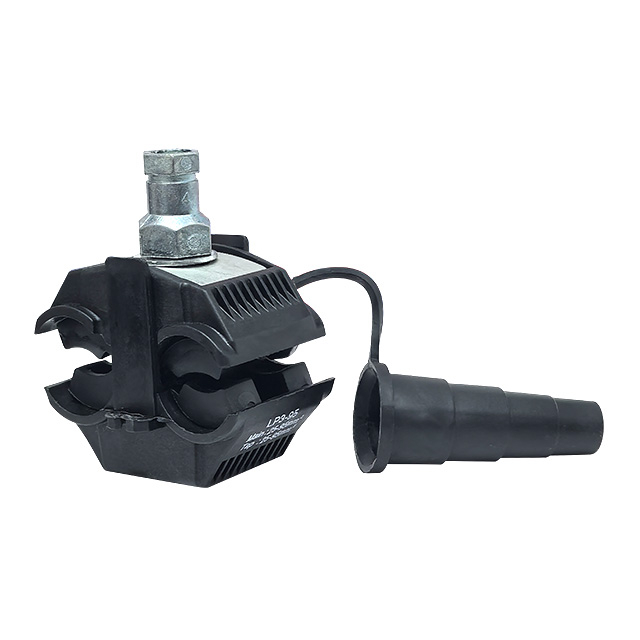

RE2-95 Insulation Piercing Connector

According to EN50483 standaed,Strong PA66 cover with 1.5 times torque force testing without problem.High hardness Al alloy or Cu teeth with tin plated.Stable shear head force keep±1Nm.Same hardness of nut and bolt thread,prevent form thread broken.UVprotected plastic.Hot dip,dacromet or chroming galvanization,prevent from oxidation and corrosion.Some type can be used for underwater of 6kV withstand voltage,and compact structure of PVC or rubber lining with teeth and body to prevent from leakage.

Availability:

Quantity:



Inquire Add to Basket

Piercing Connector Bolt Insulation

Product Description

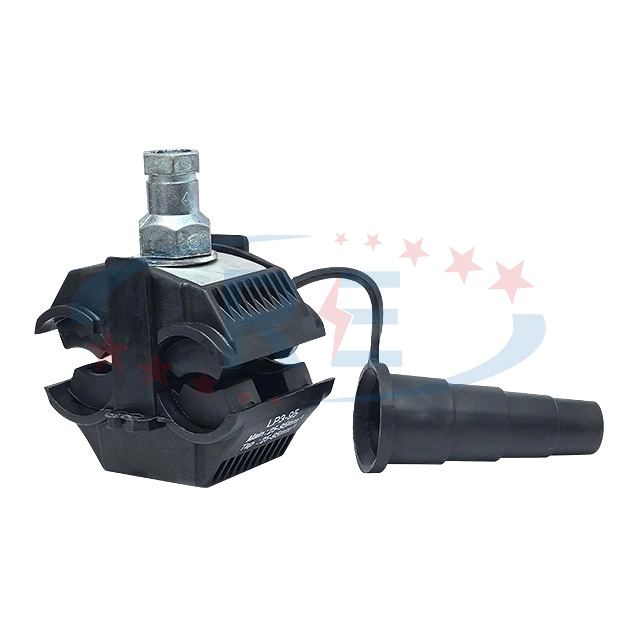

RE2-95 Insulation Piercing Connector

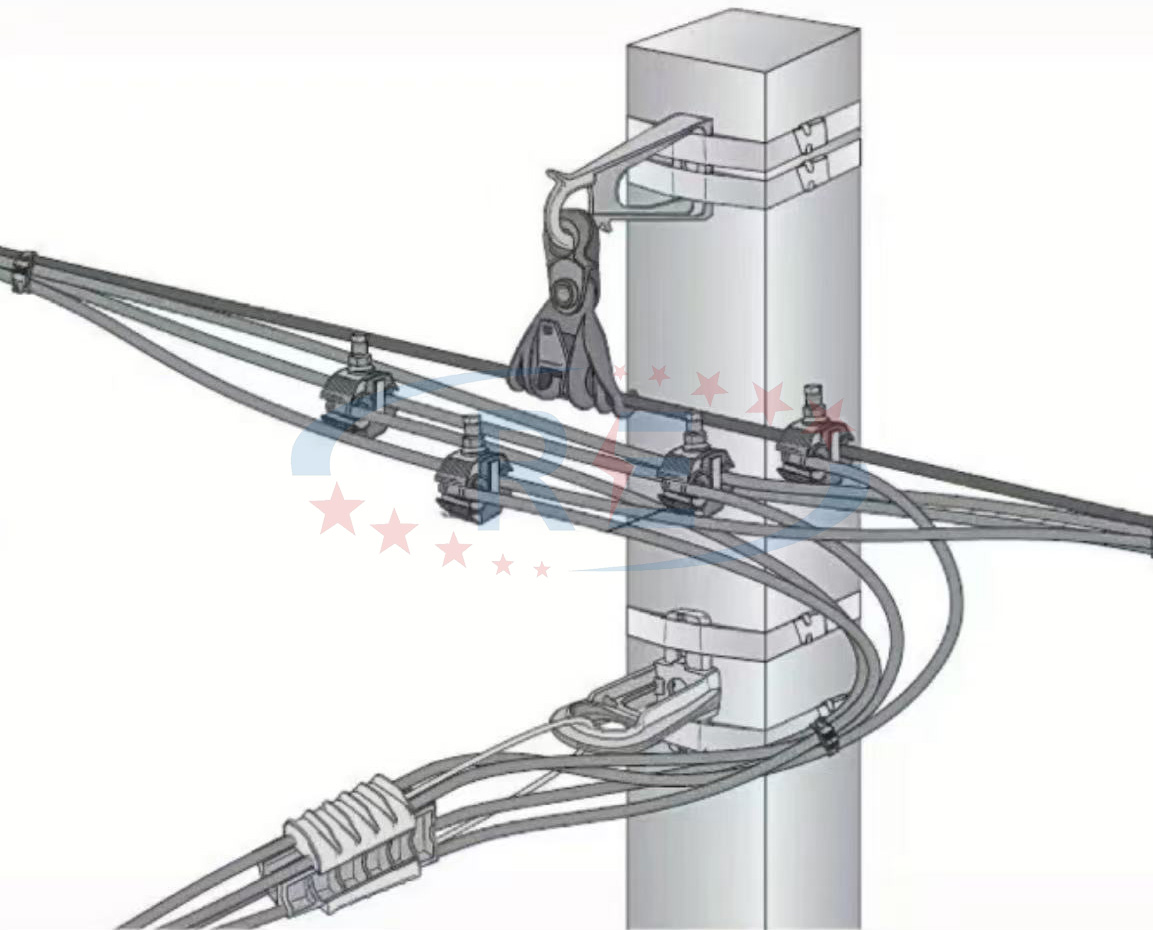

Insulation-piercing connectors use copper/aluminum alloy conductors, engineering plastic housings, and serrated piercing structures. Designed for low-voltage power distribution, overhead line branching, and underground cable connections, they eliminate insulation stripping, resist water/corrosion, enable quick installation, and suit renewable energy systems and emergency repairs.

Features:

They eliminate insulation stripping, resist water/corrosion, enable quick installation, and suit renewable energy systems and emergency repairs.

Type	Equivalent Type	Main Line Section (mm²)	Branch Line Section (mm²)	Nominal Current (mm²)	Tprque(Nm)
RE7556	JJC888	0.75-6	0.75-6	41	/
RE101	JJC-1	1.5-25	1.5-16	55	10
REEP	JJC-2	16-95	1.5-16	55	10
RE102	JJC-3(B)	6-70	4-25	157	15
RE2-95	JJC-3	16-95	4-35(50)	157	20
JBC-2	/	35-70	6-35	120	23-25
RE2-150	JJC-4	50-150	6-50	157	20
RE2-150T	/	16-150	4-50	/	15
RE3-95	JJC-5	25-95	25-95	214	20
RE4-150	JJC-6	35-150	35-150	316	26
RE4-150A	/	35-150	35-150	316	26
RE4-150B	/	16-150	16-150	316	26
RE6	/	120-240	25-120	276	35
RE7	/	150-240	10-25	102	35
