PA25 Plastic Anchor Clamp |Durable lv ABC Cable Tension Clamp for Ouedoor Use

Plastic Anchor Clamp

Product Description：

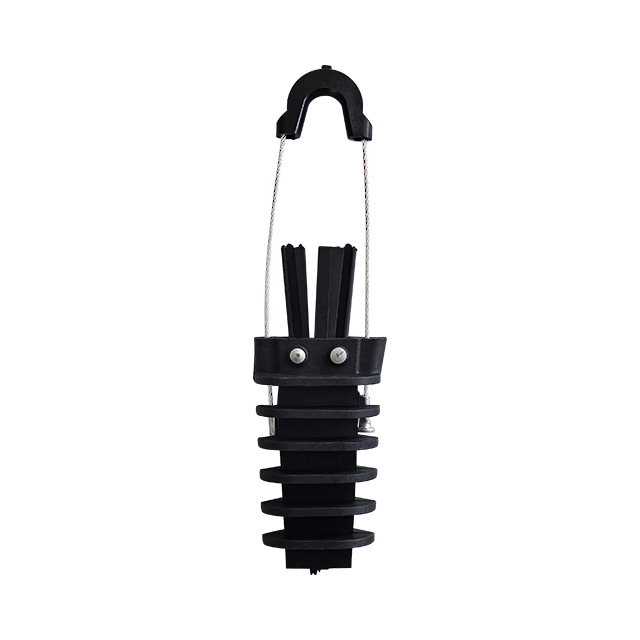

The PA25 Plastic Anchor Clamp is designed for securing and tensioning LV ABC (Aerial Bundled Cable) systems in outdoor distribution networks. It features a weather-resistant polymer body and high-strength wedge design that ensures firm clamping without damaging insulated conductors. The clamp provides stable mechanical support for dead-end sections and is widely used in pole-mounted and facade installations.

Product Advantages：

1. UV-resistant and corrosion-proof plastic body

2. Firm grip without stress damage to insulated cables

3. Lightweight design for fast installation

4. Stainless steel bail for stable support

5. Suitable for all weather outdoor applications

6. Compatible with LV ABC cables of various sizes

Application Scenarios：

1. LV ABC Dead-End Installation：The conductor is placed between the wedges, then tension pulls the cable to automatically lock the clamp in position.

2. Pole-Mounted Distribution Networks：The stainless-steel bail is hooked onto the pole bracket; the clamp holds the insulated cable at the dead-end or angle section.

3. Facade or Wall-Mounted Cable Routing：The clamp is anchored to wall hooks or support brackets to secure ABC cables along building surfaces.

4. Rural and Residential Distribution Lines：Used to terminate or tension short-span service lines from distribution poles to households.


Quality Assurance：

Each PA25 clamp is tested for tensile strength, wedge locking performance, UV resistance, and dimensional accuracy to ensure long-term outdoor reliability.

FAQ：

Q1: What cable sizes are supported?

A1: Compatible with standard LV ABC insulated conductors.

Q2: Is the clamp suitable for coastal or humid regions?

A2: Yes, the polymer body and stainless bail prevent corrosion.

Q3: Does it require tools for installation?

A3: No special tools required; wedges lock automatically.
