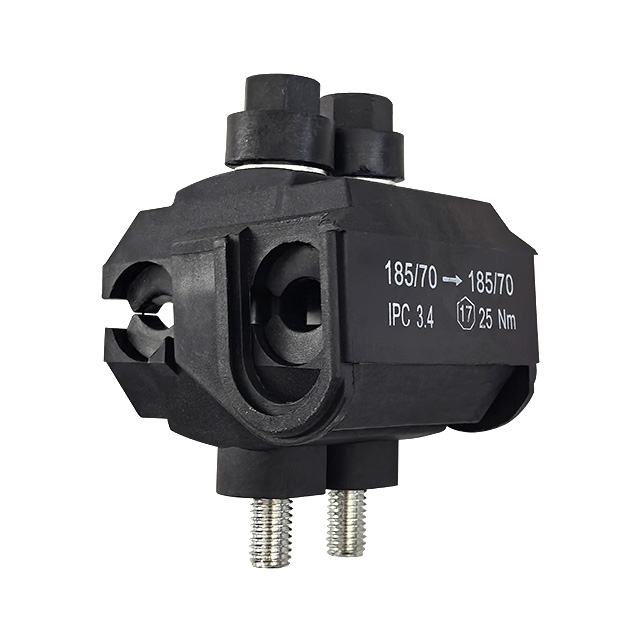

TTD401FJ Insulation Piercing Connector | Waterproof Low Voltage Cable Clamp for Outdoor BranchConnections

Insulation piecring connector prooerty:It is mainly used for branch connection,succession and grounding protection for 20kV,10kV and 1kV or below:

1.Simple installation:Put the main wire and the branch wire directly on the right place without wire stripping.Tighten the shear head evenly by wrench.

2.Low resistance and low temperature-rise:The spcial bolts can ensure equal piercing pressure for superior electric contact and less wire damage,so that make sure the normal service life of the pierced wire.

3.Sealing structure with good insulation:tight insulated lining and enough compound to ensure the insulation function in good control when connector used outdoors.

Availability:

Quantity:



Inquire Add to Basket

Insulation Piercing Connector Piercing Clamp Outdoor Power Accessories

Product Description

TD Series 1KV Insulation Piercing Connector

Insulation-piercing connectors is designed for safe and eddicient branching of low-voltages cables.It features a waterproof seal and is suitable for outdoor power distribution systems.Compatible with a variety of cable types,this connector ensures reliable performance without stripping the insulation.

Features:

Insulation Piecring Connector enables quick low-voltage cable branching without stripping insulation.Its waterproof seal and durable,UV-resistant construction ensure reliable performance outdoors.A torque-controlled bolt provides consistent contact pressure for safe,effective connections with both aluminum and copper conductors.

Type	Main Line (mm²)	Branch Line (mm²)	Max Current (A)	Bolt size		Torqup nut
Type	Main Line (mm²)	Branch Line (mm²)	Max Current (A)	Quantity	H(mm)	Torqup nut
TTD041FJ	6-35	1.5-10	86	1*M8	13	F1309
TTD051FJ	16-95	1.5-10	86	1*M8	13	F1309
TTD101FJ	6-50	2.5(6)-35	200	1*M8	13	F1314
TTD151FJ	25-95	2.5(6)-35	200	1*M8	13	F1314
TTD201FJ	35-95	25-95	77	1*M8	13	F1318
TTD251FJ	50-150	25-95	377	1*M8	13	F1318
TTD271FJ	35-120	35-120	377	1*M8	13	F1318
TTD281FJ	50-185	2.5(6)-35	200	1*M8	13	F1314
TTD401FJ	50-185	50-150	504	2*M8	13	F1318
TTD431FJ	70-240	16-95	377	2*M8	17	F1720
TTD441FJ	95-240	50-150	504	2*M10	17	F1725
TTD451FJ	95-240	95-240	530	2*M10	17	F1725
TTD551FJ	120-400	95-240	679	2*M10	17	F1737
