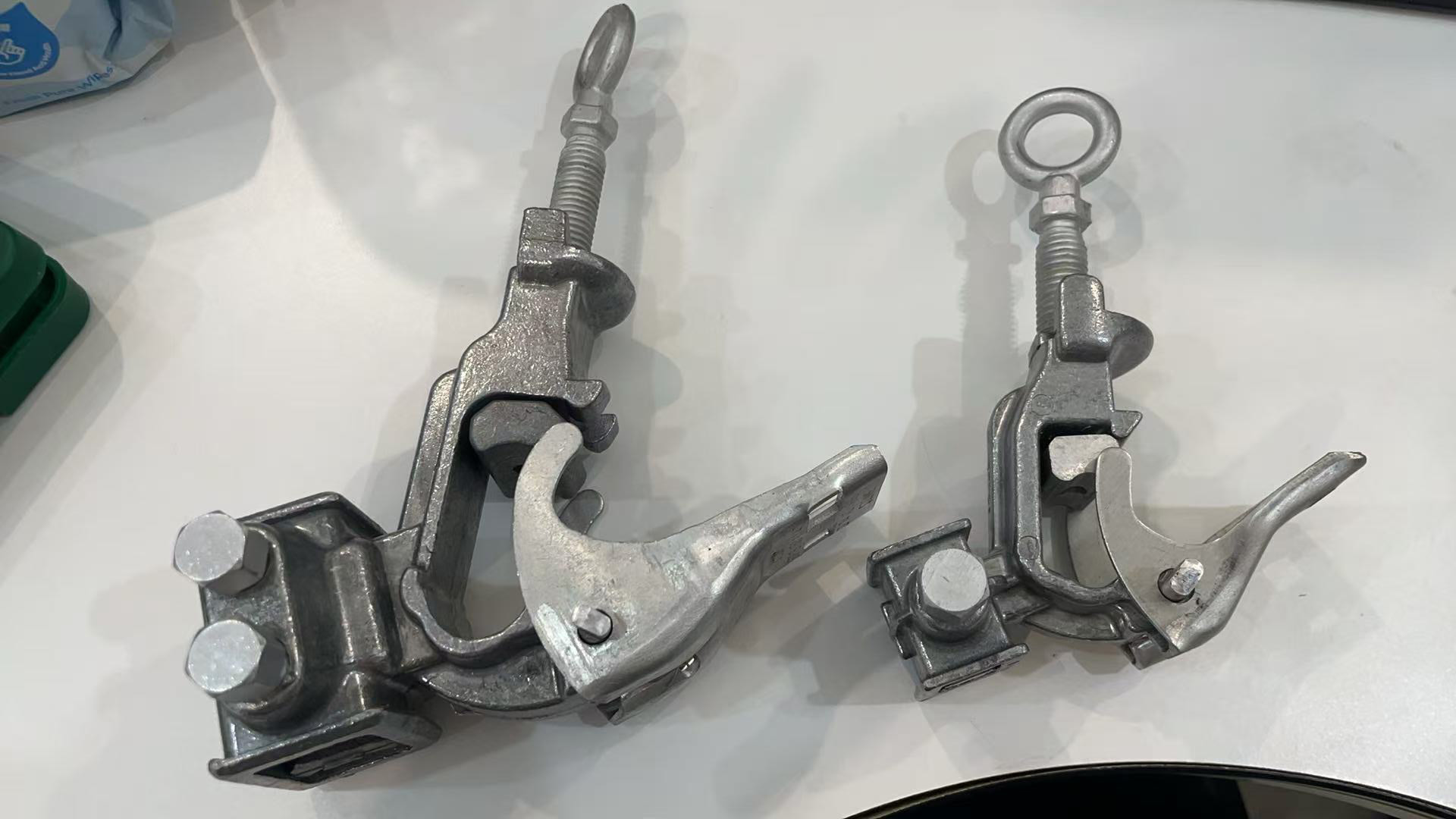

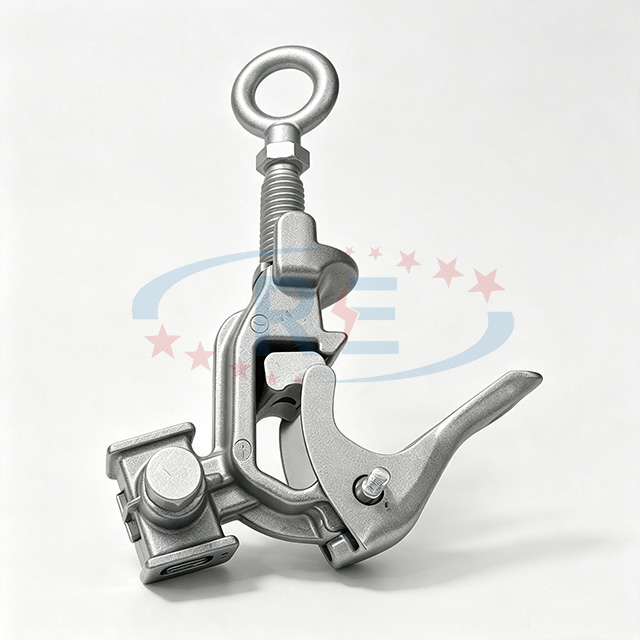

Reacon JSFST-P Quick-Install Live-Line Tap Clamp for Jumper Connections

A Specialized Connector for Live-Line Jumper Installation

Maintaining continuity of electrical service is an important consideration for utility distribution networks. During line extensions, branch connections, temporary service work, and network maintenance, utility crews may need to establish a connection between an energized overhead conductor and a jumper or branch lead without taking the entire circuit out of service.

The Reacon JSFST-P Live-Line Tap Clamp is designed for this type of field application. It provides a dedicated connection point for jumper and branch conductors while supporting installation through appropriate live-line operating procedures and insulated tools.

Compared with conventional conductor clamps that are primarily selected for permanent mechanical or electrical connections, this product focuses on quick installation, secure positioning, and live-line jumper connection.

The product is particularly suited to utility maintenance operations where reducing installation time and maintaining a stable connection are important considerations.

Developed Around Quick-Installation Requirements

Field installation conditions are often different from workshop assembly. Utility personnel may need to work at height, handle conductors from a distance, and complete a connection efficiently while following established electrical safety procedures.

The JSFST-P design is intended to make this type of operation more convenient.

Its application characteristics include:

• Quick installation and removal

• Designed for jumper connection work

• Anti-loosening structural design

• Suitable for overhead conductor applications

• Supports different connection orientations

• Suitable for vertical and parallel conductor arrangements

• Aluminum alloy construction, subject to model configuration

• Compatible with appropriate insulated operating tools

• Available for utility maintenance and line construction projects

The anti-loosening feature is particularly useful where the clamp needs to remain securely positioned during service conditions and mechanical movement.

Live-Line Tap Connection for Utility Maintenance

A live-line tap clamp is different from a standard compression connector or cable lug. Its purpose is not simply to terminate a cable; instead, it provides a practical connection between an existing overhead conductor and a jumper or branch conductor.

This makes the JSFST-P suitable for applications where the utility needs to add or modify a connection point while minimizing service interruption.

Typical applications can include:

• Jumper connection work

• Branch conductor connections

• Distribution line maintenance

• Temporary line modifications

• Overhead feeder work

• Utility service extension

• Live-line maintenance operations

• Electrical network upgrading

The exact working voltage, conductor range, and approved operating method should always be selected according to the product specification and the applicable utility work procedures.

Anti-Loosening Structure for More Stable Positioning

One of the important differences between this product and a conventional general-purpose line clamp is its focus on secure positioning during field installation.

An anti-loosening structure can help reduce the possibility of unintended movement after the clamp has been installed. This is particularly relevant to overhead conductors, where vibration, thermal expansion, wind loading, and conductor movement may occur during normal operation.

For utility maintenance teams, this feature can contribute to:

• More secure clamp positioning

• Reduced risk of connection movement

• Easier installation using an operating tool

• Better suitability for repeated field operations

• More consistent connection procedures

The exact mechanical performance should be evaluated according to the selected JSFST-P configuration and the relevant technical requirements.

Designed for Vertical and Parallel Connection Arrangements

The JSFST-P is not limited to a single conductor orientation.

Its design is intended to support connection arrangements where the jumper or branch conductor needs to be positioned vertically or in a parallel relationship with the main conductor.

This flexibility can be useful when working with existing overhead line structures where the available installation space, conductor direction, and branch routing vary from one project to another.

Potential installation arrangements include:

Parallel conductor connection

Used when the jumper or branch conductor follows the direction of the main conductor for a section of the connection.

Vertical conductor connection

Used where the branch conductor needs to leave the main conductor in a vertical direction.

This installation flexibility gives utility contractors more options when adapting the connection to an existing line structure.

Aluminum Alloy Construction for Overhead Line Applications

The clamp is manufactured using an aluminum alloy construction appropriate for overhead electrical connection applications.

Aluminum alloy is widely used in power line hardware because it offers a practical combination of electrical conductivity, relatively low weight, and suitability for outdoor line equipment.

For this type of product, material selection also needs to account for:

• Electrical contact performance

• Mechanical strength

• Weight during installation

• Outdoor environmental exposure

• Compatibility with the conductor material

• Long-term connection stability

The exact alloy grade, conductor compatibility, and surface treatment should be confirmed according to the specific product model before ordering.

Applications in Distribution Line Maintenance

The JSFST-P can be considered for projects where rapid conductor connection and field installation are important.

Typical users may include:

• Electric utility companies

• Distribution network operators

• Live-line maintenance contractors

• Electrical EPC contractors

• Power engineering companies

• Utility infrastructure maintenance teams

• Rural electrification contractors

• Overhead line construction companies

The product can be supplied for new installations as well as maintenance and network modification projects.

Product Specification

Note: Rated voltage, main conductor range, jumper conductor range, allowable current, applicable conductor type, and detailed dimensions should be confirmed according to the actual JSFST-P specification before publication.

Why Choose Reacon JSFST-P Live-Line Tap Clamp?

For utility contractors, the value of a specialized tap clamp is not simply its ability to connect two conductors. The design needs to fit the actual working conditions encountered during overhead line maintenance.

The JSFST-P focuses on several practical requirements:

Fast field installation

The quick-install design helps reduce the number of operations required during line work.

Secure positioning

The anti-loosening structure is intended to help maintain stable positioning after installation.

Flexible connection direction

Vertical and parallel connection arrangements provide greater flexibility for different jumper routing requirements.

Suitable for utility maintenance

The product is designed around field connection applications rather than general-purpose cable termination.

Lightweight aluminum construction

An aluminum alloy structure can help reduce handling weight during overhead installation.

FAQ

What is the JSFST-P live-line tap clamp used for?

The JSFST-P is designed for jumper and branch conductor connections on overhead electrical lines, particularly where quick field installation is required.

What is a live-line tap clamp?

A live-line tap clamp is a specialized conductor connector used to establish a branch or jumper connection during live-line maintenance work when the application and operating procedure permit it.

Is JSFST-P the same as a parallel groove clamp?

No. Although the product can support parallel conductor arrangements, the JSFST-P is designed specifically around quick-install jumper/branch connection applications and anti-loosening requirements.

What does “monkey head clamp” mean?

“Monkey head clamp” is a Chinese industry nickname for certain live-line tap/jumper clamps. It should generally not be translated literally into English for an international product page.

Can the JSFST-P be installed on energized lines?

It is intended for live-line applications, but actual use must follow the product’s rated voltage, conductor range, approved operating method, and applicable electrical safety procedures. Do not publish a specific voltage rating unless it has been confirmed for your exact model.

Can it be used for vertical and parallel conductor connections?

Yes, the product description indicates vertical and parallel connection arrangements. The exact applicable conductor configurations should be confirmed against the manufacturer’s technical drawing.

Is the product made from aluminum alloy?

The product is described as an alloy clamp. If your actual JSFST-P uses aluminum alloy, the English page can specify Aluminum Alloy; otherwise, I recommend keeping the material field as Alloy until you confirm the exact grade.

Can Reacon manufacture customized versions?

Yes. Conductor ranges, connection configurations, dimensions, and other project-specific requirements can be discussed for OEM production.
