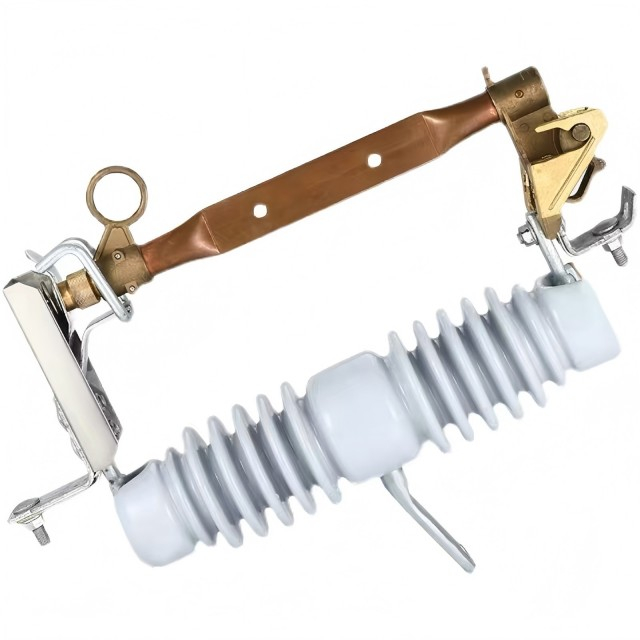

33kv Fusibles with Load Break-porcelain
Offer safeguard for the distribution line network and its equipment like transformers and capacitor banks. Additionally, it can serve as a tool for dividing the network into sections. By utilizing a portable loadbreak instrument, it can work similarly to an overhead line disconnect switch.
The highest acceptable voltage ranges is 33kv, while the maximum rating current is 100-200A.
| Rated voltage(KV) | Rated current(A) | Rated interrupting current(KA) | Lightning impulse withstand voltage to ground (BIL KV) | Minimum power frequency withstand dry voltage to ground (KV) | Minimum creepage distance(mm) |
| 11-15 | 100/200 | 12 | 125 | 50 | 320 |
| 24-27 | 100/200 | 12 | 150 | 65 | 470 |
| 33-38 | 100/200 | 8 | 170 | 70 | 660 |
| 33-38 | 100/200 | 8 | 170 | 70 | 900 |
