13kv Distribution Type Disconnect Switch

Isolation switch is a switch device mainly used for isolating power supply, switching operation, connecting and cutting off small current circuits.

Availability:

Quantity:



Inquire Add to Basket

isolated Ceramic switch Ceramic Switch 13kv

Product Description

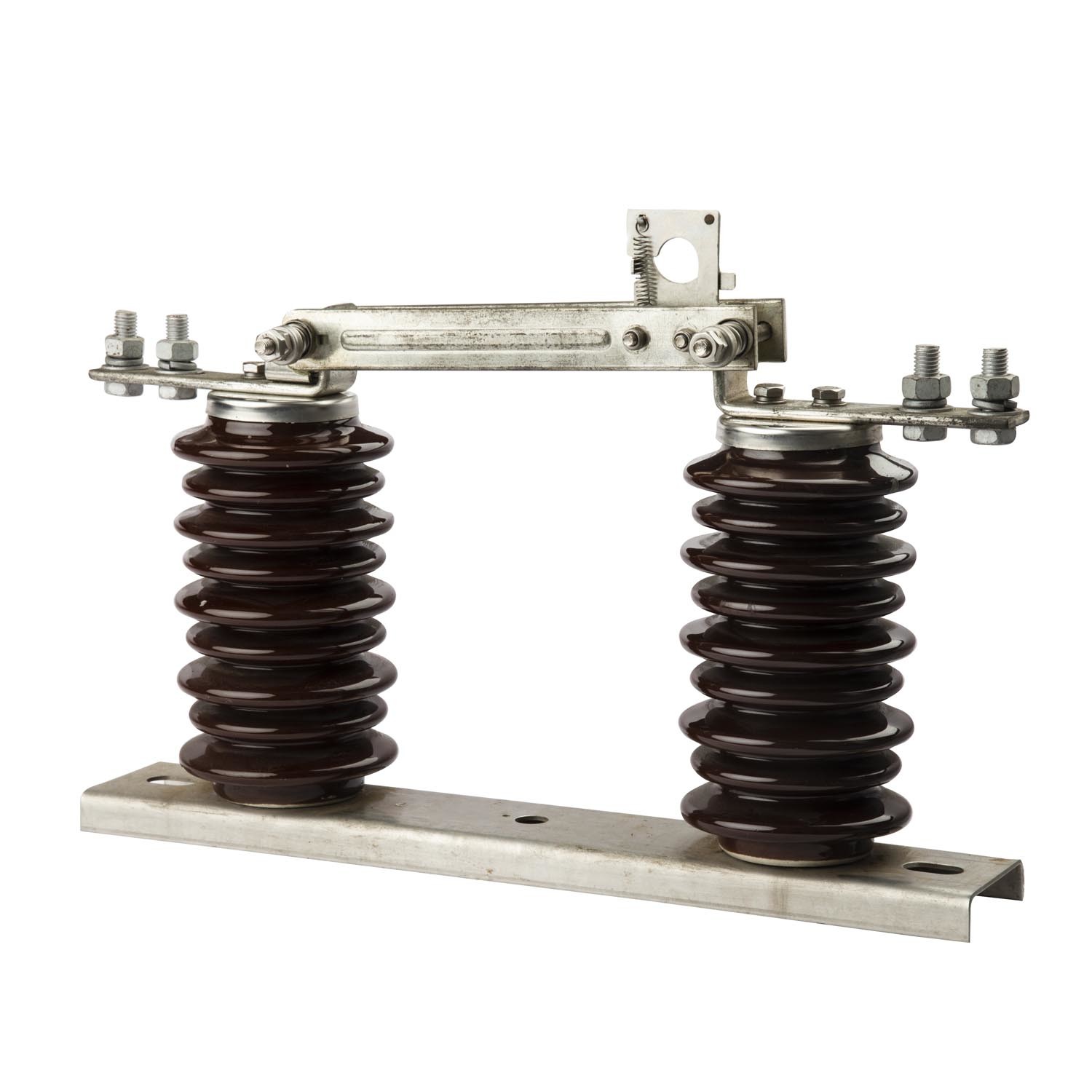

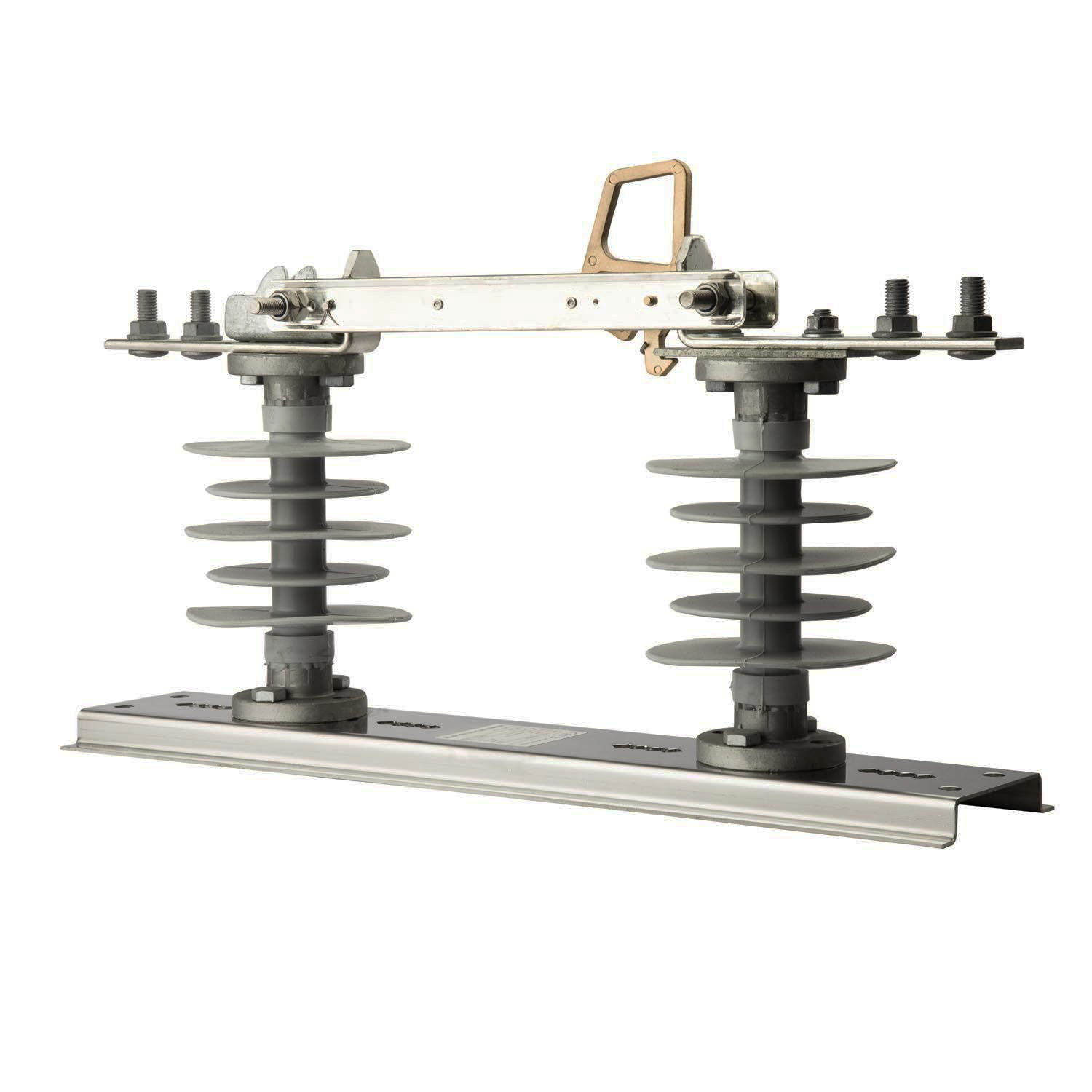

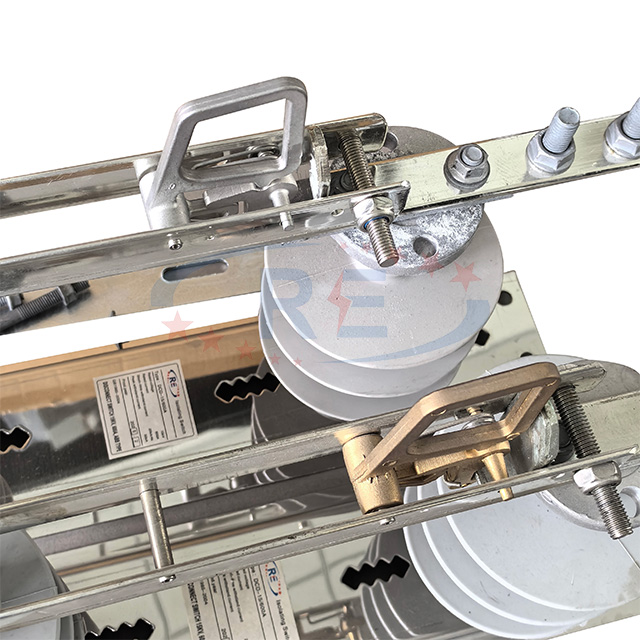

13kv Outdoor Disconnect Switch

Isolation switch is a switch device mainly used for isolating power supply, switching operation, connecting and cutting off small current circuits. It should be noted that it does not have arc extinguishing function, so it can only open and close circuits without load current, and cannot cut off load current and short-circuit current.

Isolation switch legend

Parameter：

Technical Specification
Technical Specification
Kv			Amperes	(kA/Is)	Dimensions
Nominal voltage	Maximum voltage	BIL	Nominal Current	Transient Current	A	B	C	D
Nominal voltage	Maximum voltage	BIL	Nominal Current	Transient Current	(mm)
13.8	15	95	200/630	16	305	270	580	186
		95	630	25	305	313	595	230
		110	200/630	16	381	270	650	186
		110	630	25	381	313	670	230
24.2	27	125	200/630	16	381	310	650	228
24.2	27	125	630	25	381	340	670	260
34.5	38	150	630	25	381	368	670	290
34.5	38	170	630	25	381	400	670	316
