Al-Cu Bimetal PG Clamp

Product Description

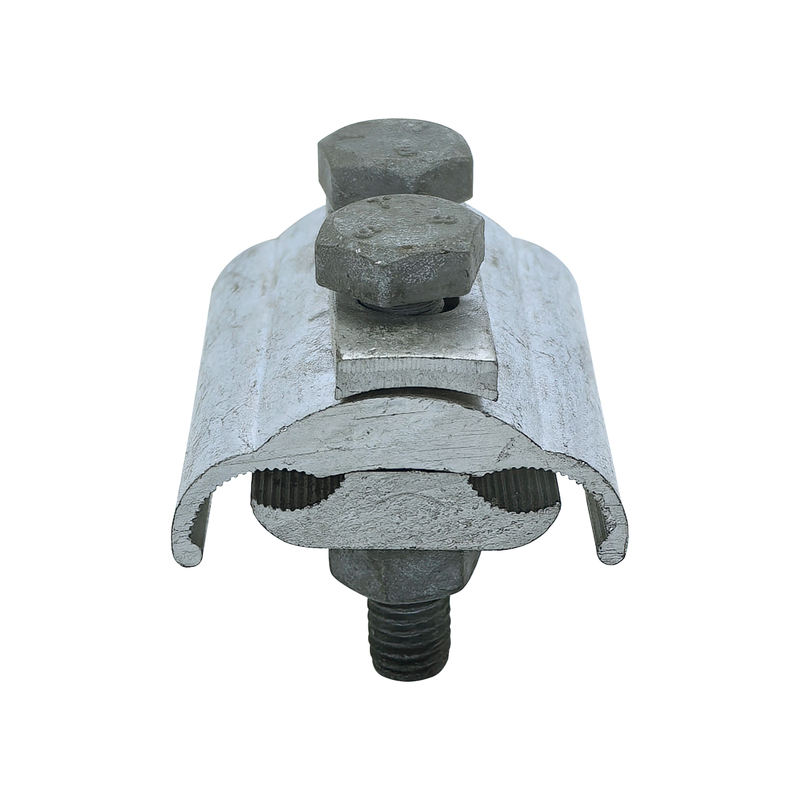

The CAPG-B Bimetal Parallel Groove Clamp (PG Clamp) is designed for secure and reliable electrical connection between aluminum and copper conductors in overhead power distribution systems. This bimetal PG clamp adopts a special aluminum-copper bimetal structure, effectively reducing galvanic corrosion while ensuring low contact resistance and stable current transmission. It is widely used for tap connections and parallel conductor bonding in utility power networks.

1.Aluminum alloy clamp body with copper insert

2.Designed for Al-Cu conductor connections

3.Galvanic corrosion-resistant construction

4.Strong mechanical grip with stainless steel bolts

5.Suitable for overhead power lines and grounding systems

Product Advantages

1. Bimetal design for aluminum-to-copper conductor connection

2. Effectively reduces galvanic corrosion

3. Low contact resistance ensures stable current flow

4. Strong clamping force for secure conductor bonding

5. Designed for parallel groove tap connections

6. Corrosion-resistant surface for outdoor use

7. Easy installation with standard tools

8. Compatible with various aluminum and copper conductors

9. Utility-grade quality for distribution networks

10.Long service life with minimal maintenance

Applications & How to Apply

• Overhead power distribution lines

• Aluminum-to-copper conductor tap connections

• Parallel bonding of conductors

• Utility pole line installations

• Urban and rural distribution networks

How to Apply :

• Select the CAPG-B bimetal PG clamp according to the conductor material and size.

• Place the aluminum and copper conductors into the parallel grooves correctly.

• Ensure proper alignment to maximize contact area.

• Tighten the bolts evenly to achieve secure clamping force.

• Inspect the connection to confirm firm bonding and electrical continuity.

Quality Assurance

• Manufactured according to utility and industry standards

• 100% inspection of material, dimensions, and clamping performance

• Strict control of bimetal interface quality

• Corrosion resistance tested for outdoor environments

• Stable quality for long-term power distribution use

Our advantages

1.High Load Capacity: Rigorously tested to provide reliable support for heavy-duty equipment in demanding environments.

2. Corrosion Resistance: The specialized aluminum alloy construction offers effective protection against moisture and chemical corrosion.

3. Eco-Friendly & Energy Saving: Lightweight design minimizes transportation and installation energy consumption, contributing to a greener solution.

4.Cost-Effective: Offers excellent cost-performance ratio, making it ideal for large-scale custom orders and installations.

5.Wide Application: Designed to cater to both indoor and outdoor mounting scenarios, meeting diverse industry requirements.

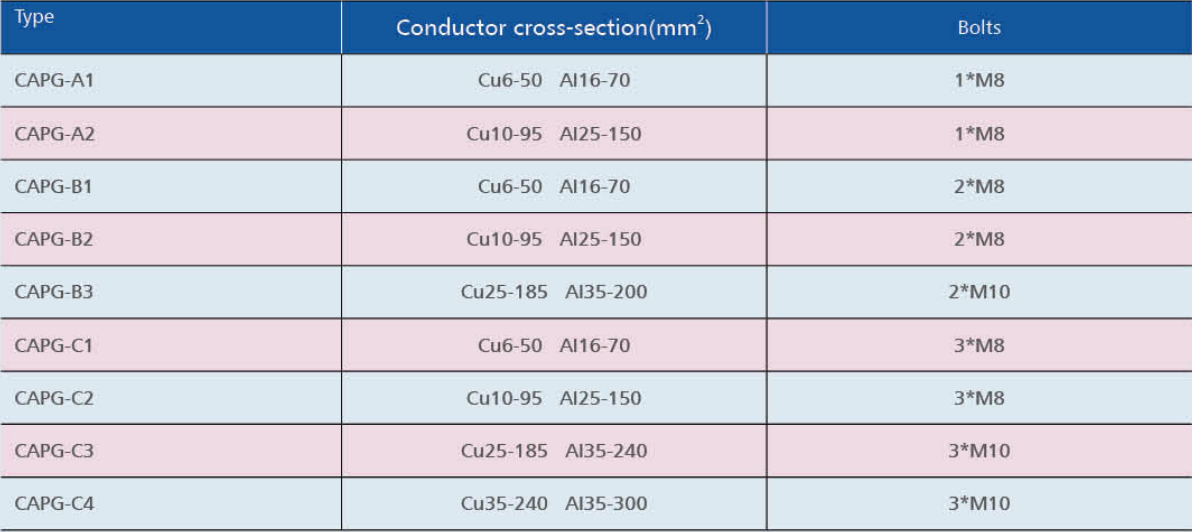

Parameter

FAQ

Q1: What is the main function of a CAPG-B bimetal PG clamp?

A1: It connects aluminum and copper conductors securely in overhead lines.

Q2: Can this clamp be used outdoors?

A2: Yes, it is designed for outdoor power line environments.

Q3: Does it reduce aluminum-copper corrosion?

A3: Yes, the bimetal structure minimizes galvanic corrosion.

Q4: Is special installation equipment required?

A4: No, standard tools are sufficient.

Q5: Is it suitable for distribution networks?

A5: Yes, it is widely used in utility power distribution systems.
