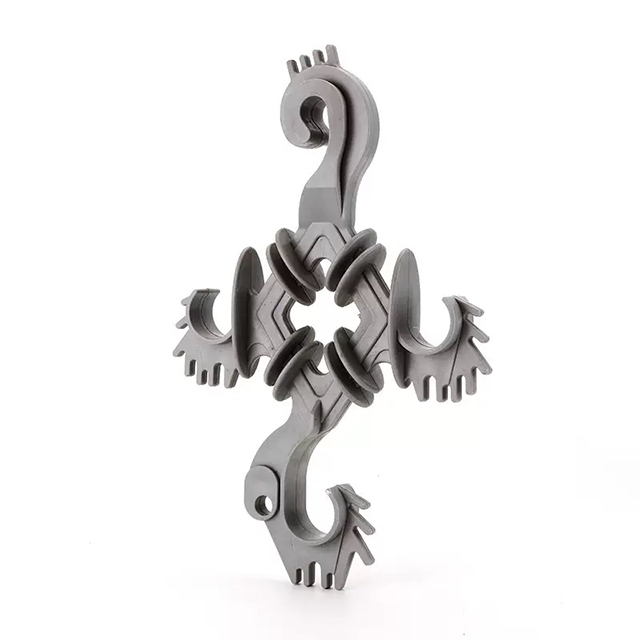

10-15kv Polyethylene Cable Spacer

Density polyethylene cable spacer.It's a new material for transmission line cable spacer.It's suits for polluted area or salty coastal area in tropical zone.Mainly applied in electrical syetem of 15kV,22kV and 35kV.
Availability:
Quantity:
Inquire Add to Basket

10-15kv Polyethylene Cable Spacer
Cable Spacer Polyethylene HDPE Insulator 10-15kv
Product Description

Characteristics:

1.Unbreakable and light weight

2.Easiest handing and transportation

3.Water repelling surface

4.Long service life

5.Non-toxic,non-standing and recyclable


Main Dimensions and Standard Particulars:

Rated Voltage of system Line to Line up to15kV
Electrical CharacteristicsUnder Rain Frequency34kV
Dry Atmosphere110kV
Mechanical CharacteristicsUltimate mechanical strength4500N
Main Dimensions(mm)D180
H300
h145
C1170.7
Weight(kg)0.5
Qty(pcs)/Ctn11
Qty(pcs)/20FT4620
Product Description
