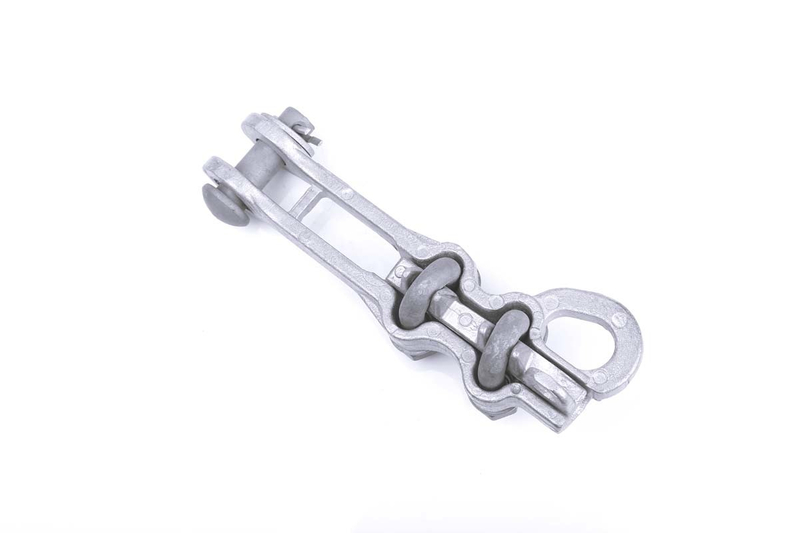

The RE Tension clamp body and keepers are cast iron material, the cotter-pin is stainless steel, the other parts are hot-DIP galvanized steel.
Features:
Material: Body and Keeper-356-T6 aluminum alloy
Hardware: Galvanized Steel
Sockets and Cleaises-ductile iron,galvanized
Cotter Pin--#302 stainless steel
Parameter
Type | Diameter of stranded wire | Ubolt | U.T.S(KN) | |
Nos | Dia | |||
NLL-1 | 5.0-10.0 | 2 | M10 | 40 |
NLL-2 | 10.1-14.0 | 2 | M12 | 40 |
NLL-3 | 14.1-18.0 | 3 | M12 | 70 |
NLL-4 | 18.1-23.0 | 3 | M12 | 90 |
NLL-5 | 23.1-29.0 | 5 | M12 | 120 |
