REACON
| Quantity: | |
|---|---|

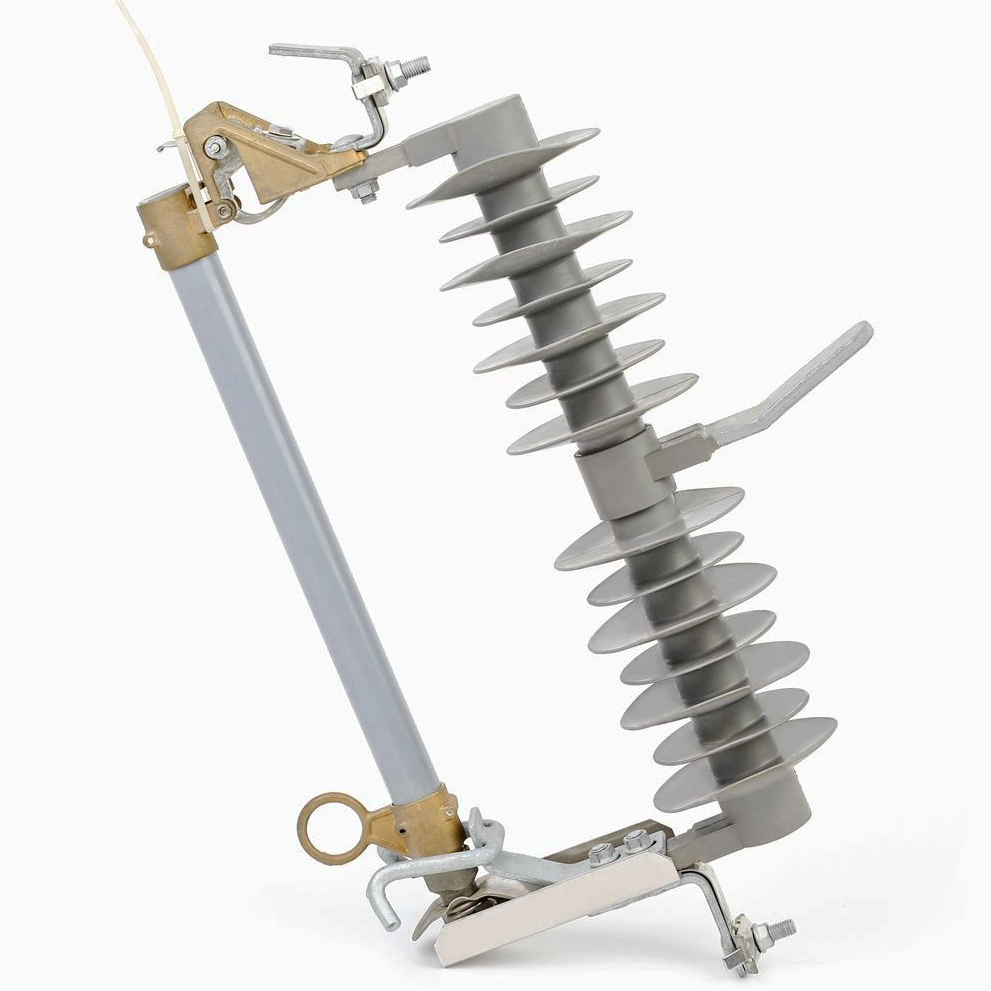

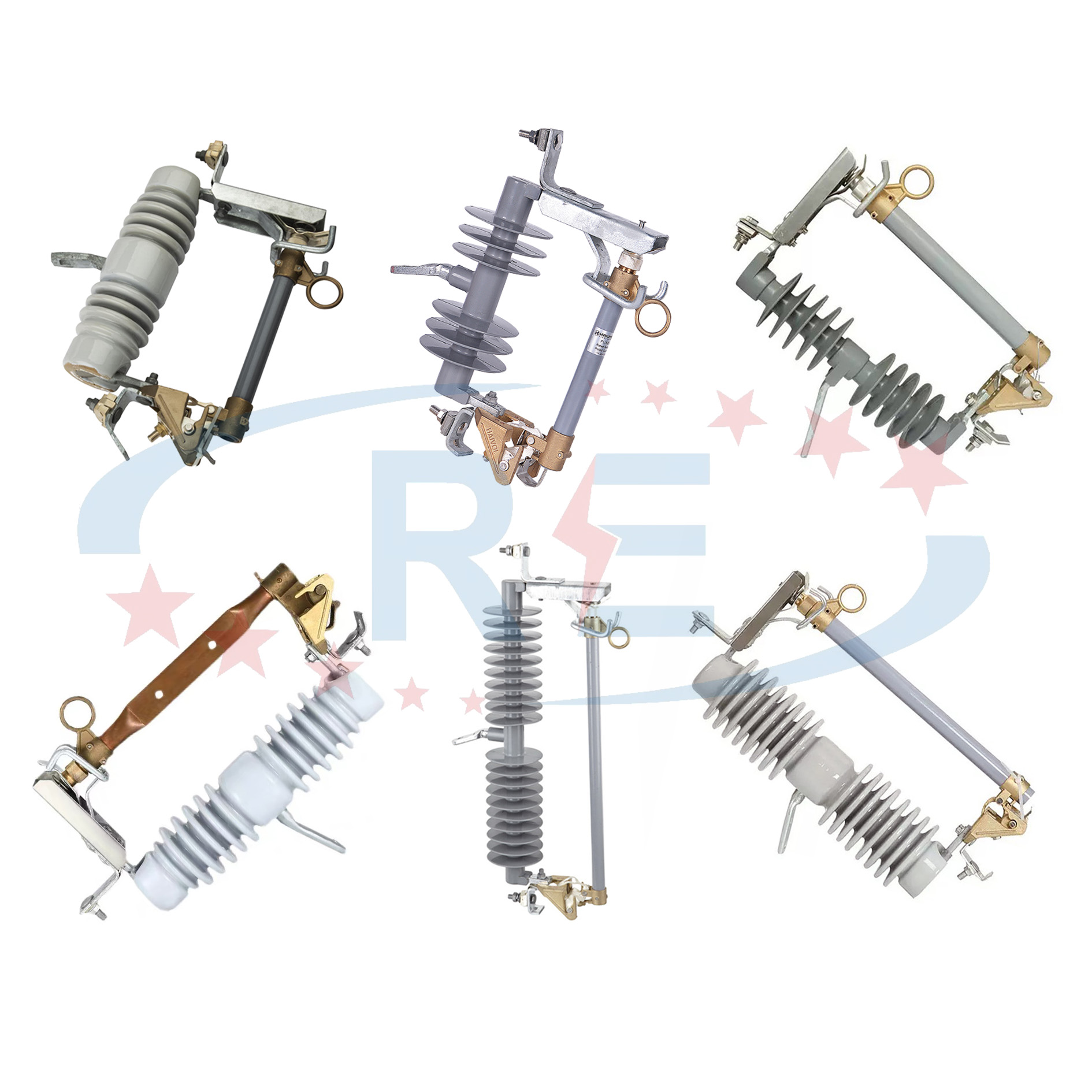

A fuse is an electrical device that uses the heat generated by itself to melt the fuse and disconnect the circuit when the current exceeds a specified value.REACON produces various types of fuses to cope with different situations. Low melting point materials such as lead and lead alloys have low melting points and are easy to melt, making them suitable for fuses with low breaking capacity; High melting point materials such as copper and silver have high melting points and are not easy to melt, but can be made into smaller cross-sectional sizes, suitable for high breaking capacity fuses.
| Rated voltage(KV) | Rated current(A) | Rated interrupting current(KA) | Lightning impulse withstand voltage to ground (BIL KV) | Minimum power frequency withstand dry voltage to ground (KV) | Minimum creepage distance(mm) |
| 24-27 | 100/200 | 12 | 150 | 65 | 470 | |
| 33-38 | 100/200 | 8 | 170 | 70 | 660 | |
| 33-38 | 100/200 | 8 | 170 | 70 | 720 | |
| 33-38 | 100/200 | 8 | 170 | 70 | 900 |
