Copper Aluminum Bimetal Parallel Groove Clamp for Conductor Transition Connections

Product Overview

Overhead power networks frequently require the interconnection of copper conductors and aluminum conductors. Because the two materials have different electrical and mechanical characteristics, a dedicated transition connector is often used to establish a suitable conductor joint.

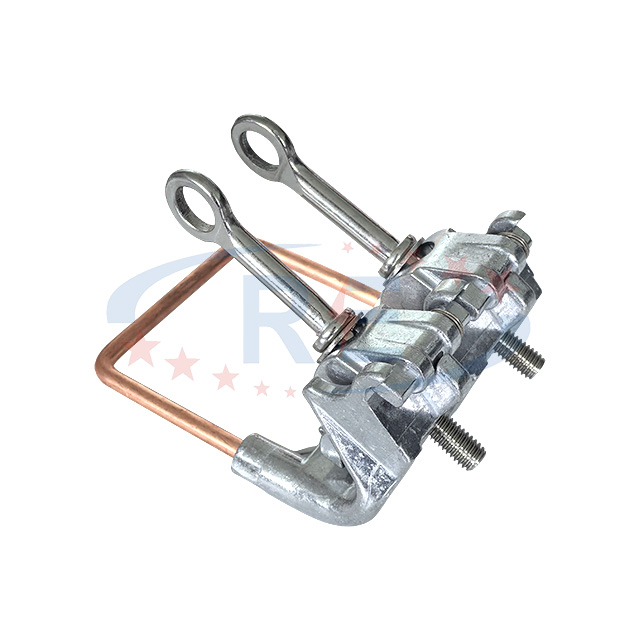

The Reacon Copper Aluminum Bimetal Parallel Groove Clamp is designed for conductor transition connections in distribution and transmission systems. The clamp combines copper and aluminum contact surfaces within a single assembly, allowing conductors of different materials to be joined in overhead line installations.

The product is commonly used in utility networks, substation conductor connections, and electrical infrastructure projects where copper-to-aluminum transitions are required.

Key Features

• Copper and aluminum bimetal construction

• Designed for conductor transition joints

• Suitable for overhead line installations

• Compatible with copper and aluminum conductors

• Parallel groove connection structure

• Suitable for distribution and transmission systems

• Available in multiple conductor ranges

• Suitable for outdoor utility applications


Typical Applications

• Copper to aluminum conductor connections

• Overhead distribution networks

• Transmission line projects

• Utility infrastructure construction

• Substation conductor installations

• Electrical network upgrades


Focus on Dissimilar Conductor Connections

Unlike ordinary parallel groove clamps used for identical conductor materials, a bimetal clamp is specifically designed to connect copper conductors with aluminum conductors.

This application helps:

• Create transition connections between different conductor materials

• Support conductor continuity

• Simplify overhead line installations

• Facilitate utility maintenance activities


Because of these characteristics, bimetal clamps are widely used in mixed-conductor electrical systems.

FAQ

Q1: What is a copper aluminum bimetal clamp used for?

A1: It is used to connect copper conductors and aluminum conductors within overhead electrical systems.

Q2: Why use a bimetal clamp instead of a standard clamp?

A2: A bimetal clamp is specifically designed for conductor transition applications involving different conductor materials.

Q3: Can the clamp be used in transmission lines?

A3: Yes. It is suitable for both distribution and transmission network applications.

Q4: Is it suitable for outdoor installations?

A4: Yes. The clamp is designed for utility infrastructure and outdoor service environments.

Q5: Does Reacon provide customized conductor ranges?

A5: Yes. Customized specifications can be supplied according to project requirements.
