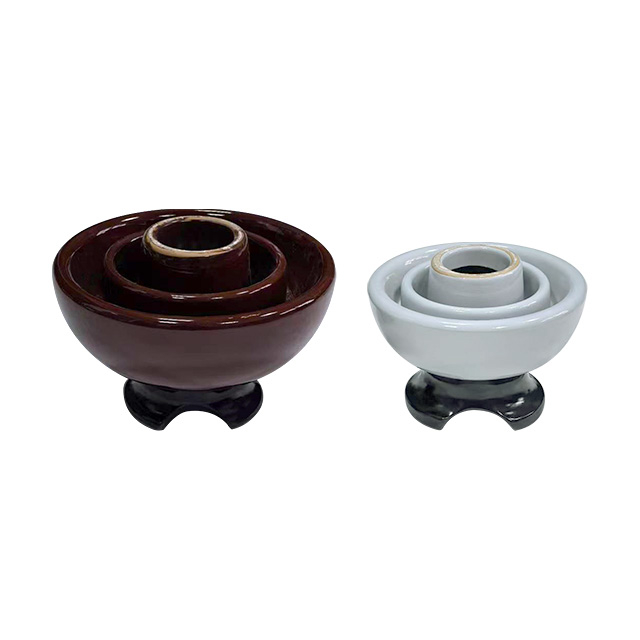

15kv Pin Type Porcelain Insulator for Overhead Line

Availability:

Quantity:



Inquire Add to Basket

15kv Pin Type Porcelain Insulator for Overhead Line 15kv Pin Type

Product Description

15kv Pin Type Porcelain Insulator for Overhead Line

Insulators are a special insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telegraph poles. Slowly, a lot of disk-shaped insulators were hung on one end of the high-voltage wire connection tower. It was used to increase the creepage distance. It was usually made of glass or ceramics and was called an insulator. Insulators should not fail due to various electromechanical stresses caused by changes in the environment and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.

Features:

Pin Porcelain Insulators (ANSI BS)

1.voltage:23-69kv

2.creepage distance:330-865mm

3.weight:3.7-13.5kg

4.good use-best price

详情页

Parameter

Main dimensions and standard particulars
Main dimensions and standard particulars
Fig			1	1	2	3
Class BS			P-11-Y	P-15-Y	P-20-Y	P-33-Y
Main Dimensions (mm)	H		133	137	195	244
	h		48	48	52.63	52.63
	D		140	152	230	279
	d		18.29	18.29	27.78	27.78
	R1		13	13	19	19
	R2		9.5	12.7	14.3	13
Nominal Voltage (kV)			11	15	22	33
Creepage Distance (mm)			240	298	432	630
Minimum Flashover Voltage	Power-frequency	Dry (kV)	75	80	100	135
	Power-frequency	Wet (kV)	45	55	60	85
	50% Impulse	Positive (kV)	100	130	160	185
	50% Impulse	Negative (kV)	110	175	205
Withstand Voltage	One minute power- frequency	Dry (kV)	65	70	90	110
	One minute power- frequency	Wet (kV)	40	50	55	75
	mpulse (kV)			110	150
Radio- Inﬂuence- Voltage Data	Test Voltage to Ground (kV)		15	15	22	30
Radio- Inﬂuence- Voltage Data	Maximum RIV at 1000kHz (uV)		8000	8000	12000	16000
Power-frequency puncture Voltage(kV)			135	135	145	185
Cantilever Failing Load(kN)			11	11	11	13
Weight (kg)			1.8	-	-	11.5
