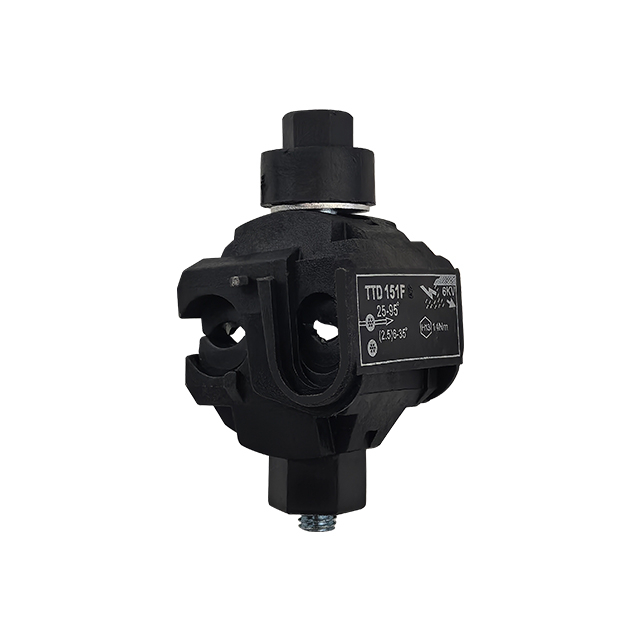

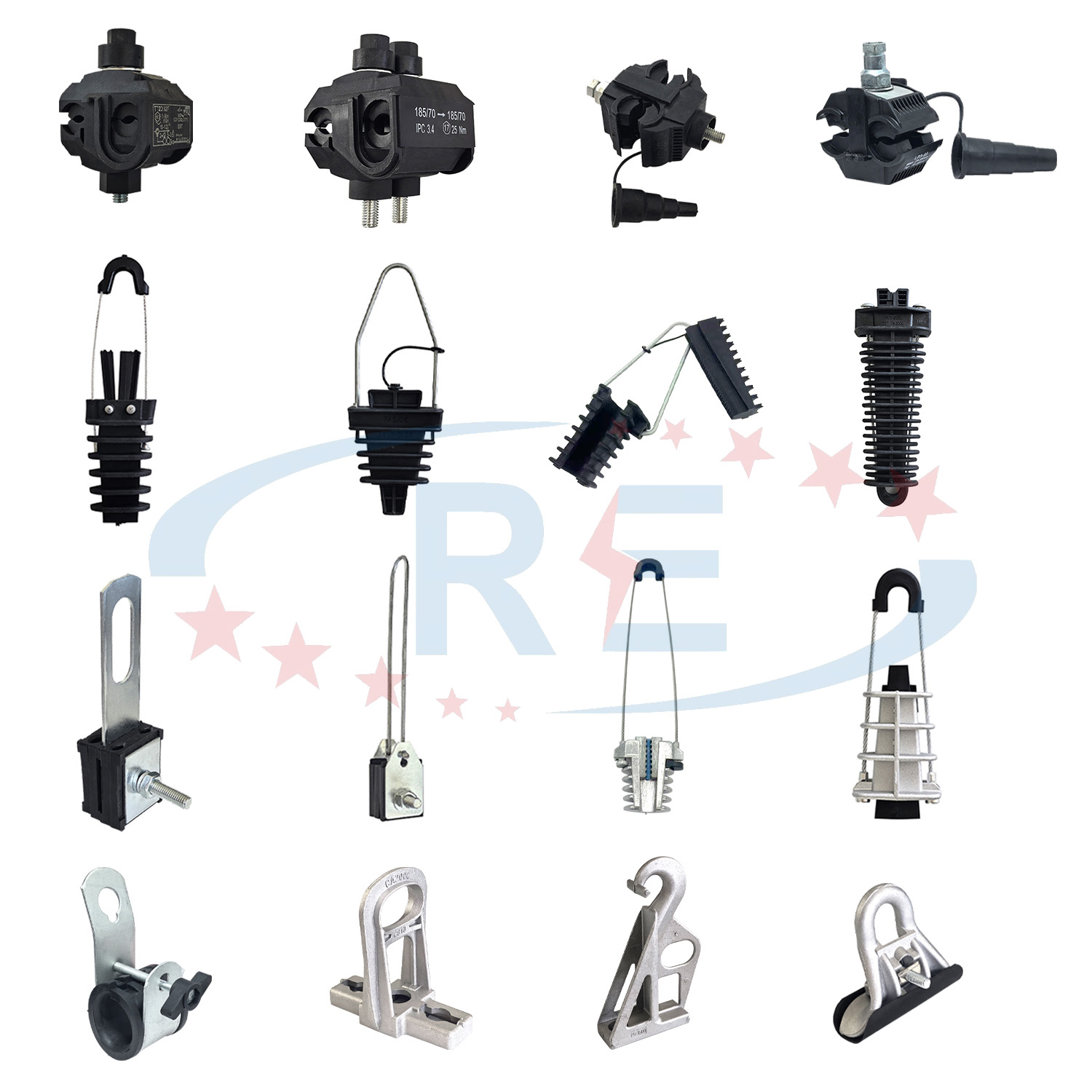

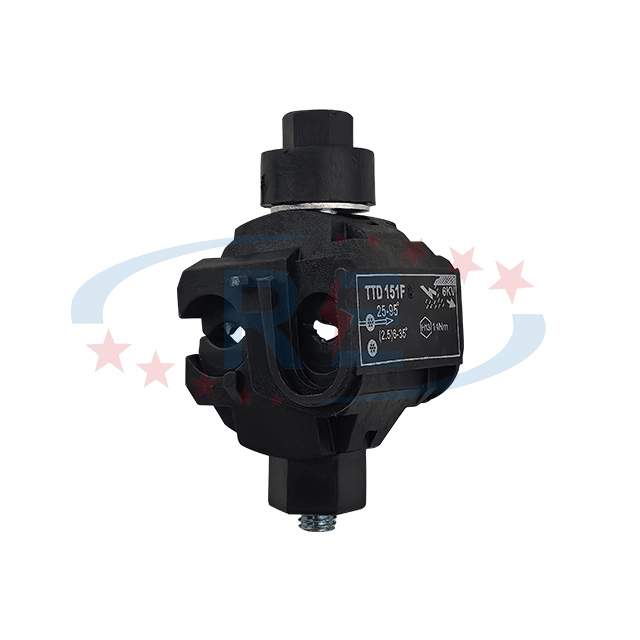

The TTD151FJ Insulation Piercing Connector is designed for safe, fast, and reliable branching of low-voltage ABC cables, copper cables, and aluminum conductors without stripping insulation. With a fully sealed structure and stainless-steel piercing teeth, the TTD151FJ insulation piercing connector ensures secure electrical contact while maintaining waterproof performance and corrosion resistance, making it ideal for outdoor power distribution networks. This connector supports stable current flow, minimizes installation errors, and reduces field maintenance in harsh environments including rain, humidity, UV exposure, temperature fluctuations, and coastal corrosion.
• Waterproof, sealed design (IP67)
• No insulation stripping required
• Stainless steel piercing teeth ensure conductivity
• Flame-retardant and UV-resistant body
• Compatible with copper and aluminum cables
• Quick installation using torque control bolt
| Type | Main Line (mm²) | Branch Line (mm²) | Max Current (A) | Bolt size | Torqup nut | |
| Quantity | H(mm) | |||||
| TTD041FJ | 6-35 | 1.5-10 | 86 | 1*M8 | 13 | F1309 |
| TTD051FJ | 16-95 | 1.5-10 | 86 | 1*M8 | 13 | F1309 |
| TTD101FJ | 6-50 | 2.5(6)-35 | 200 | 1*M8 | 13 | F1314 |
| TTD151FJ | 25-95 | 2.5(6)-35 | 200 | 1*M8 | 13 | F1314 |
| TTD201FJ | 35-95 | 25-95 | 77 | 1*M8 | 13 | F1318 |
| TTD251FJ | 50-150 | 25-95 | 377 | 1*M8 | 13 | F1318 |
| TTD271FJ | 35-120 | 35-120 | 377 | 1*M8 | 13 | F1318 |
| TTD281FJ | 50-185 | 2.5(6)-35 | 200 | 1*M8 | 13 | F1314 |
| TTD401FJ | 50-185 | 50-150 | 504 | 2*M8 | 13 | F1318 |
| TTD431FJ | 70-240 | 16-95 | 377 | 2*M8 | 17 | F1720 |
| TTD441FJ | 95-240 | 50-150 | 504 | 2*M10 | 17 | F1725 |
| TTD451FJ | 95-240 | 95-240 | 530 | 2*M10 | 17 | F1725 |
| TTD551FJ | 120-400 | 95-240 | 679 | 2*M10 | 17 | F1737 |
The TTD151FJ Insulation Piercing Connector is suitable for:
1. Low Voltage ABC Cable Networks
Used to create branch connections without cutting the main conductor.
2. Public Lighting and Utility Power Projects
Ideal for street lighting, rural grid expansion, and municipal energy systems.
3. Residential and Industrial Electrical Networks
Provides safe branching for load extension or equipment connection.
4. Smart Grid and Metering Systems
Supports signal and power distribution for smart energy meters.
1. Select the correct cable size within the TTD151FJ range
2. Place the connector on the main cable and insert the branch cable
3. Tighten the torque shear bolt until it breaks at preset torque
4. Ensure the sealing cover is fully locked
5. Perform a final check for firm installation and waterproof sealing
Complies with IEC 61238, EN 50483, and utility standards
100% electrical performance and waterproofing test
Salt fog corrosion test applied for coastal environments
Q1: Does it work with copper and aluminum conductors?
A1: Yes, the connector is compatible with both.
Q2: Can it be reused?
A2: No, the connector is single-use due to torque shear design.
Q3: Is it suitable for underground use?
A3: Yes, if installed with appropriate waterproof accessories.
