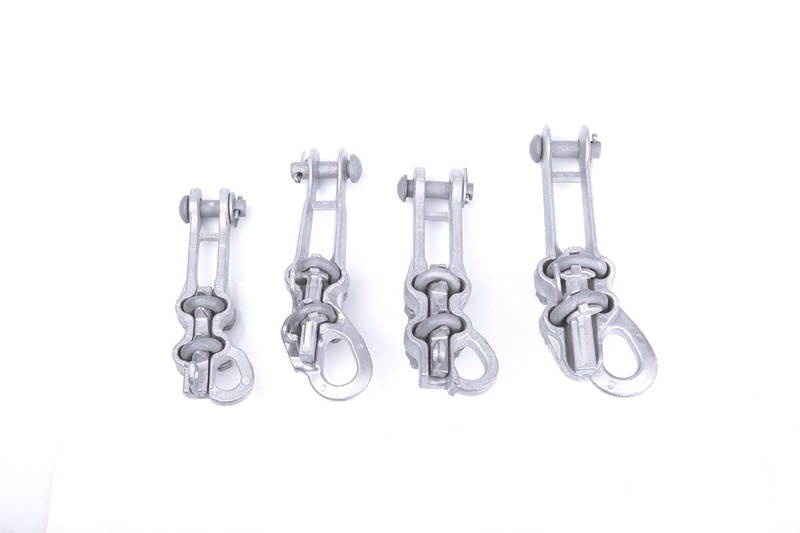

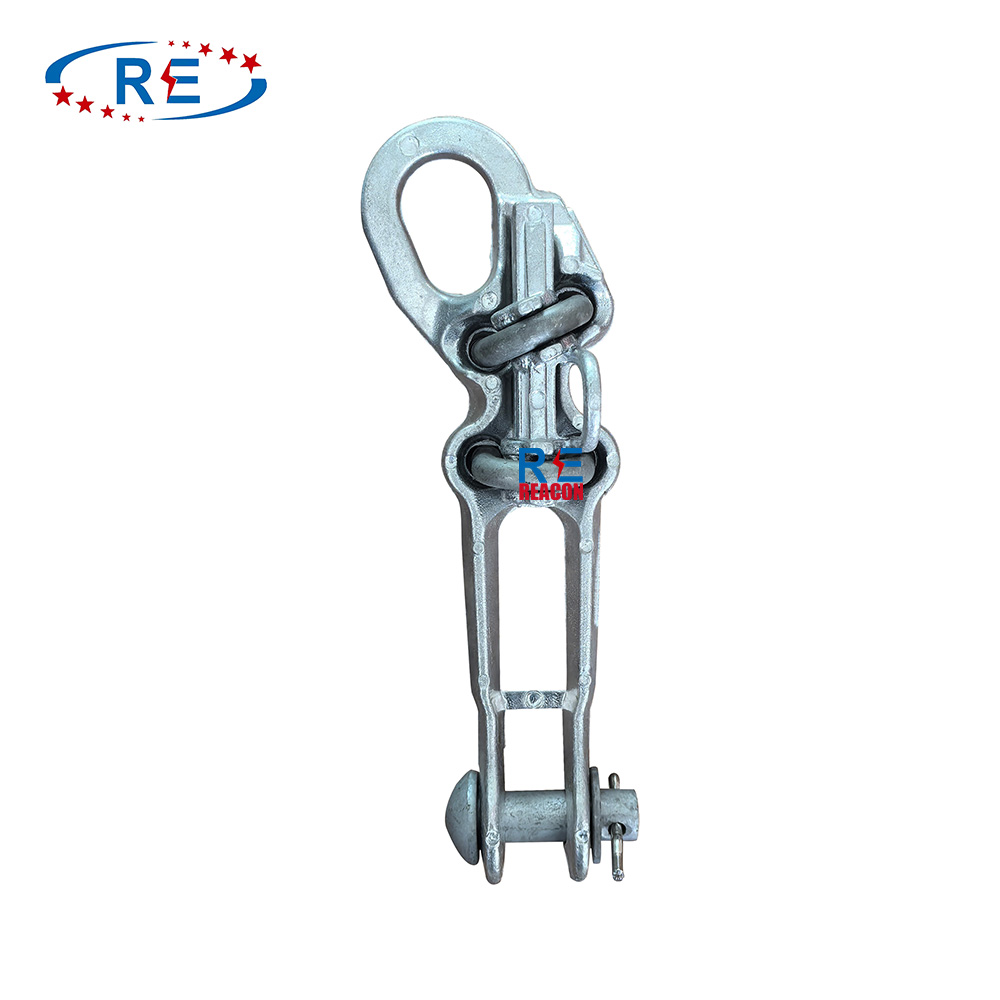

RE Straight Line Strain Clamp are for distribution and light transmission construction with all Aluminum, ACSR or aluminum alloy conductor. These clamps have high holding power and large range taking ability.
Features:
- Convenient installation: Don't need to use special tools, do not need to cut the wire.
- We do not need to cute the wire, reduced the electrical contact point, low loss, energy-saving effect of transmission line is more significant.
- Safety and reliability for greatly increased.

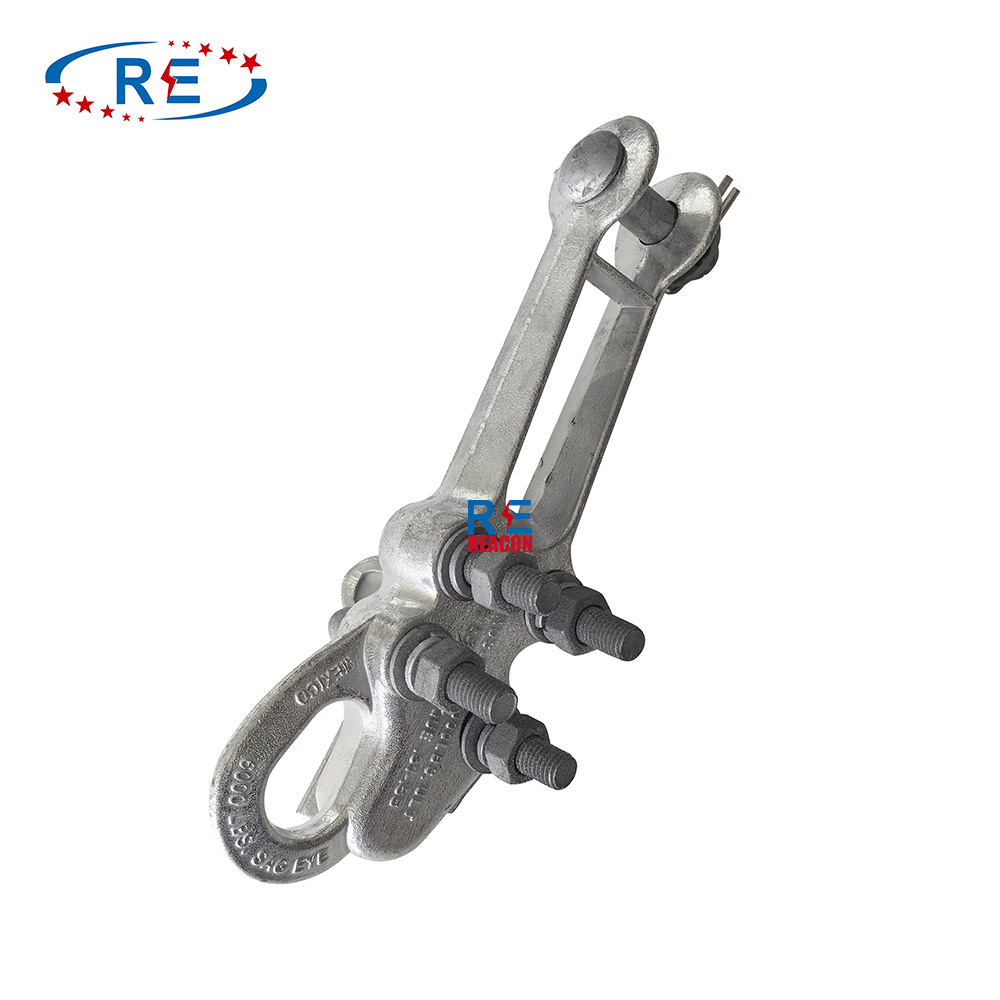

- The body and the wedge core of Bolt Type Strain Clamp is made of high strength aluminum alloy materials, can provide more grip and failure load.
- Have self-locking function, the wire is pulled tight trend. The product can be reused after removal.
Parameter
| Catalog No. | Conductor Dia. (mm) | Dimensions (mm) | Breaking Load (KN) | Weight (kg) | |||
| M | C | L1 | L2 | ||||
| NLL-1 | 5.1-11.5 | 16 | 19 | 140 | 120 | 40 | 1.0 |
| NLL-2 | 8.9-18.5 | 16 | 24 | 176 | 187 | 40 | 1.6 |
| NLL-3 | 5.0-15.0 | 16 | 18 | 310 | 160 | 70 | 1.9 |
| NLL-4 | 12.1-21.8 | 16 | 30 | 298 | 284 | 90 | 4.1 |
| NLL-5 | 18.0-30.0 | 22 | 36 | 446 | 342 | 120 | 7.0 |
| NLL-6 | 27.0-38.0 | 22 | 44 | 560 | 360 | 120 | 8.1 |
| NLL-2A | 7.0-16.0 | 16 | 20 | 111 | 137 | 40 | 1.6 |
| NLL-4A | 12.0-21.8 | 16 | 30 | 298 | 292 | 102 | 3.9 |
| NLL-5A | 18.0-30.0 | 16 | 32 | 190 | 235 | 70 | 3.9 |
| NLL-6A | 27.0-38.0 | 16 | 36 | 296 | 255 | 70 | 4.0 |
