Every power distribution or telecommunication project depends on strong, upright poles. Without proper stability, poles can tilt, collapse, or cause dangerous service interruptions. Guy attachments and anchors are the unseen heroes of pole line hardware that prevent these failures. Together with guy wires, they ensure that utility poles, transmission towers, and telecommunication structures remain secure even under the stress of high winds, conductor tension, and unstable soil.
Before exploring their uses, it is important to understand what these devices are:

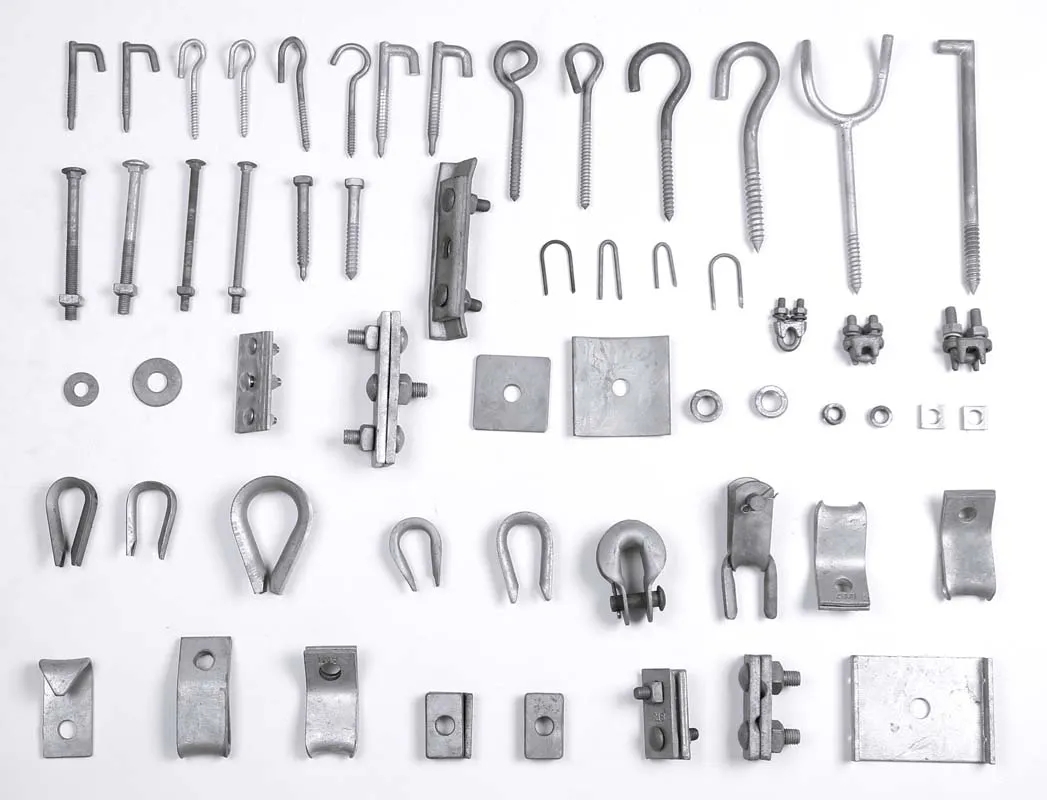

• Guy Attachments: Hardware fixed on the pole to connect and hold the guy wires. Common forms include guy hooks, guy clamps, thimbles, eye bolts, and straps.
• Guy Anchors: Devices buried or screwed into the ground to hold the opposite end of the guy wire. Types include screw anchors, rod anchors, cross-plate anchors, and expanding anchors.
Together, they form a pole line guying system—the connection between pole and ground—that resists mechanical forces and ensures long-term stability.
Not all poles need the same attachment hardware. Some common designs include:
• Guy Hooks and Guy Clamps – Secure the wire to the pole while allowing for proper tension adjustment.
• Eye Bolts and Eye Nuts – Provide a durable anchor point for guy wires without cutting into the cable.
• Guy Thimbles and Guy Straps – Prevent abrasion and extend the life of the guy wire, especially under heavy loads.
These guy wire attachments are usually made of hot-dip galvanized steel to withstand outdoor weathering and corrosion.
Common Anchor Designs for Pole Line Systems
Anchors differ based on soil condition and load requirements:
• Screw Anchors – With helical blades, they are twisted deep into the soil for maximum holding strength.

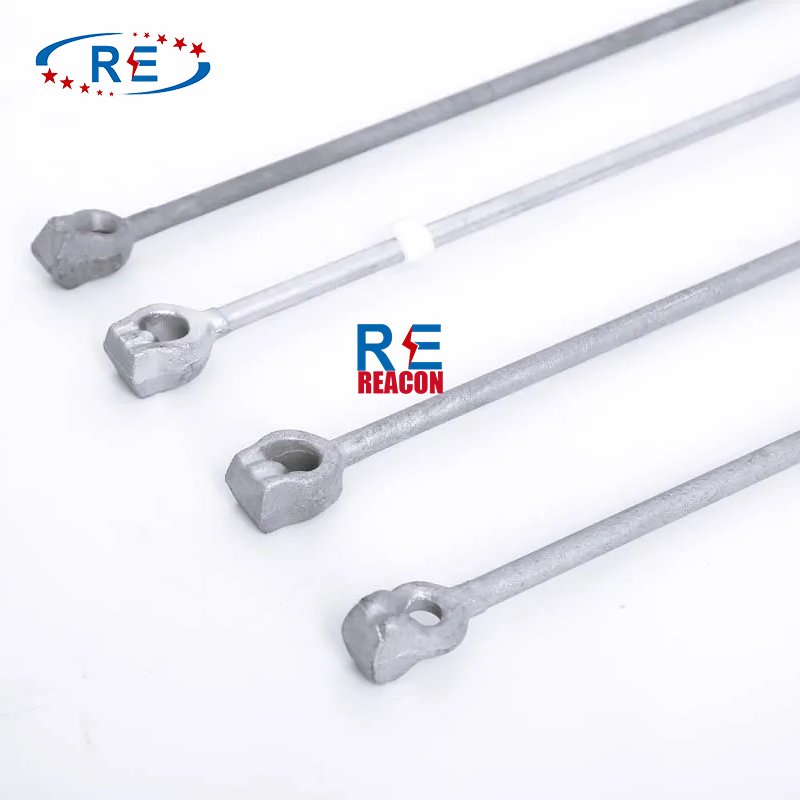

• Rod Anchors – Simple rods driven into the ground, ideal for lighter loads or temporary setups.
• Cross-Plate Anchors – Flat plates buried underground that resist pullout forces, widely used in transmission line guy anchor systems.
• Expanding Anchors – Expand once in place, making them suitable for sandy or loose soil.
These utility pole ground anchors are engineered to work in both rural and urban projects, providing versatility across applications.
1. Prevents Pole Tilting or Collapse – Ensures upright stability in challenging conditions.
2. Distributes Load Evenly – Reduces strain on poles and crossarms, extending equipment life.
3. Reliable and Long-Lasting – Built from galvanized steel to resist corrosion.
4. Flexible Use – Adaptable to different soil types, from clay to sand.
5. Safety First – Protects infrastructure and the public from hazards linked to unstable poles.
For engineers, contractors, and utility companies, these advantages make guy attachment and anchor systems an indispensable investment.
Power Distribution Poles
Every utility pole carrying overhead conductors relies on guy anchors and attachments to remain balanced, especially at corners or end-of-line poles.
Transmission Towers
Heavy transmission lines create enormous pulling forces. Cross-plate anchors and screw anchors ensure that towers stand firm against storms and seismic activity.
Telecommunication Infrastructure
Tall telecom masts and mobile towers require telecommunication pole anchors to resist wind sway and guarantee signal stability.
Street Lighting and Railways
Poles used for street lighting or railway electrification often employ guy wire attachments to handle vibrations and uneven loads.
Renewable Energy Sites
In solar farms and wind projects, renewable energy anchoring systems keep structures stable and safe under fluctuating weather conditions.
Industrial and Mining Facilities
Heavy-duty electrical poles in factories or mines often use pole stability hardware to ensure reliable power delivery.
Built for Strength and Longevity
High-quality guy anchors and attachments are engineered for decades of service. Most products are manufactured from forged steel or hot-dip galvanized steel, tested for tensile strength, and certified under ASTM, ANSI standards.
• Corrosion Resistance: Coatings extend product life even in coastal or industrial regions.
• Mechanical Integrity: Designed to withstand extreme pullout forces.
• Versatility: Works seamlessly with other pole line hardware anchor systems.
Q1: Which type of guy anchor is best for utility poles?
A: Screw anchors are the most common, offering high holding power and easy installation.
Q2: Can guy anchors be reused?
A: Some anchors, like screw anchors, can be removed and reused if soil conditions allow.
Q3: Are guy attachments and anchors only used in power lines?
A: No, they are also widely used in telecommunication towers, renewable energy poles, and street lighting systems.
Q4: How long do galvanized guy anchors last?
A: With proper installation, hot-dip galvanized guy hardware can last decades in normal soil conditions.
Q5: Do all poles require guy anchors?
A: Not all. Straight-line poles carrying light loads may not need them, but end poles, angle poles, and tall towers almost always do.
The strength of any pole line hardware system depends not only on conductors and insulators, but also on the unseen support of guy attachments and anchors. These components keep poles upright, distribute mechanical stress, and protect infrastructure from environmental forces.
From utility pole anchors to telecommunication guying systems and renewable energy pole hardware, their applications are broad and indispensable. By selecting the right type—whether screw anchors, cross-plate anchors, or expanding anchors—engineers can ensure safe, stable, and long-lasting pole installations.
As power and communication networks expand globally, guy anchors and attachments remain the backbone of pole stability and safety worldwide.
