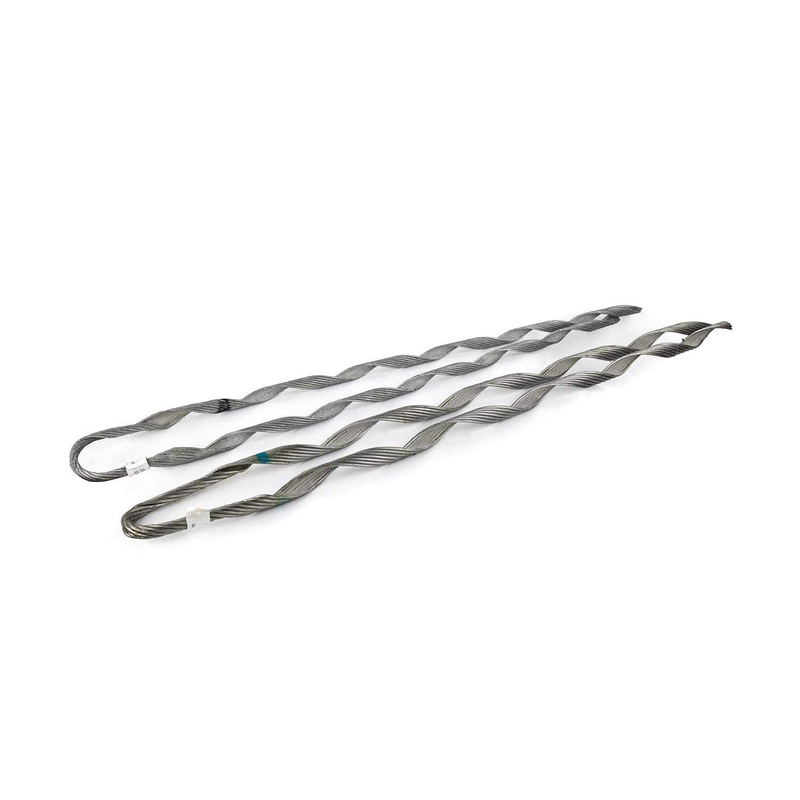

Pre twisted wire is used as a connecting hardware for overhead power conductors and power overhead optical cable terminals, suspensions, joints, etc.
Features:
Pre twisted wire is a product made by pre twisting several single stranded spiral metal wires. According to the cross-sectional size of the wire, rotate the spiral metal wire with the specified inner diameter in the spiral direction to form a tubular cavity. The pre twisted wire is wrapped in a spiral around the outer layer of the wire. Under the tension of the wire, the spiral rotates, forming an anchoring force and grip force on the wire. The greater the tension of the wire, the tighter the spiral rotates, and the greater the grip force on the wire.
Our advantages：
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.
Parameter
| Catalogue Number | Conductors GBT117199/83LGJ/LGJF | Length | Pieces | |
| Section(mm2) | O.D(mm) | |||
| TNL-16/3 | 16/3 | 5.55 | 444 | 3 |
| TNL-25/4 | 25/4 | 6.96 | 546 | 3 |
| TNL-35/8 | 35/8 | 8.16 | 622 | 3 |
| TNL-50/8 | 50/8 | 9.60 | 685 | 3 |
| TNL-70/10 | 70/10 | 11.4 | 736 | 3 |
| TNL-95/15 | 95/15 | 13.61 | 876 | 4 |
| TNL-95/20 | 95/20 | 13.87 | 876 | 4 |
| TNL-120/7 | 120/7 | 14.5 | 876 | 4 |
| TNL-120/20 | 120/20 | 15.07 | 889 | 4 |
| TNL-120/25 | 120/25 | 15.74 | 889 | 4 |
| TNL-150/8 | 150/8 | 16.00 | 889 | 4 |
| TNL-150/20 | 150/20 | 16.67 | 1016 | 5 |
| TNL-150/25 | 150/25 | 17.10 | 1016 | 5 |
| TNL-150/35 | 150/35 | 17.5 | 1016 | 5 |
| TNL-185/10 | 185/10 | 18.00 | 1016 | 5 |
| TNL-185/25 | 185/25 | 18.88 | 1155 | 6 |
| TNL-185/30 | 185/30 | 18.90 | 1155 | 6 |
| TNL-185/45 | 185/45 | 19.00 | 1155 | 6 |
| TNL-210/10 | 210/10 | 19.60 | 1155 | 6 |
| TNL-210/25 | 210/25 | 19.98 | 1155 | 6 |
| TNL-210/35 | 210/35 | 20.38 | 1155 | 6 |
| TNL-210/50 | 210/50 | 20.86 | 1155 | 6 |
| TNL-240/30 | 240/30 | 21.60 | 1270 | 8 |
| TNL-240/40 | 240/40 | 21.66 | 1270 | 8 |
| TNL-300/15 | 300/15 | 23.04 | 1270 | 8 |
| TNL-300/20 | 300/20 | 23.43 | 1270 | 8 |
| TNL-300/25 | 300/25 | 19.76 | 1442 | 10 |
| TNL-300/40 | 300/40 | 26.94 | 1442 | 10 |
| TNL-300/50 | 300/50 | 24.26 | 1442 | 10 |
