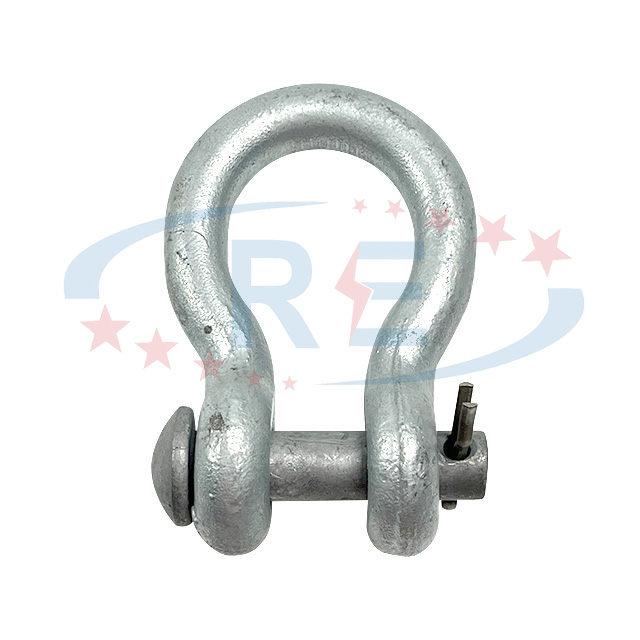

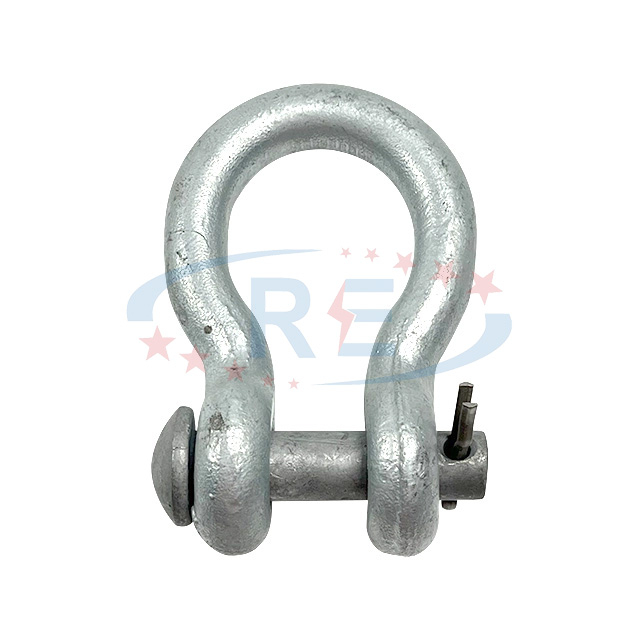

Anchor Shackle

Product Description：

The Hot Dip Galvanized ASTM A153 Anchor Shackle is a heavy-duty connection fitting designed for securing conductors, guy wires, anchor rods, and pole line components in overhead distribution systems. Its A153 hot-dip galvanized coating provides exceptional corrosion resistance, ensuring reliable long-term performance in outdoor, coastal, and industrial environments.

Product Advantages：

1. ASTM A153 Standard Coating for Superior Corrosion Resistance

2. High Mechanical Strength for Heavy Load Applications

3. Reliable Connection for Anchor Rods & Guy Wires

4. Weatherproof & Long Service Life

5. Smooth Surface Reduces Wear on Conductors and Hardware

6. Suitable for Harsh Outdoor Environments

7. Easy Installation with Standard Tools

8. Secure Pin Design to Prevent Accidental Release

9. Compatible with a Wide Range of Pole Line Fittings

10. Excellent Stability Under Vibration and Wind Load


Application Scenarios：

• Overhead distribution and transmission line hardware

• Guy wire and stay wire termination

• Pole line hardware connection systems

• Substation structural support fittings

• Anchor rod and eye nut assemblies

• Outdoor installations in coastal, industrial, or polluted regions

How to Apply ：

• Attach the anchor shackle to anchor rods, eye bolts, or pole hardware through the pin connection.

• Insert the pin fully and tighten to ensure secure mechanical locking.

• Connect guy wires, conductors, or suspension hardware directly to the shackle body.

• For overhead lines, ensure the shackle is installed vertically to reduce vibration wear.

• Perform periodic inspections to confirm coating integrity and pin tightness.

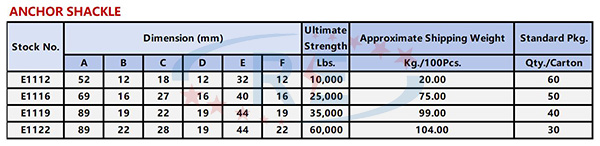

Parameter：

Safety & Quality Assurance：

• Manufactured according to ASTM A153 hot-dip galvanizing standards

• 100% mechanical load test before delivery

• Corrosion-resistant coating tested for salt spray and weather aging

• Strict dimensional and threading inspection

• Guaranteed long-term stability in outdoor environments

Frequently Asked Questions：

Q1: What is the purpose of an anchor shackle?

A1: It provides a secure mechanical connection for guy wires, anchor rods, and pole line hardware.

Q2: Does this anchor shackle meet ASTM A153 standards?

A2: Yes, it uses hot-dip galvanization strictly meeting A153 requirements.

Q3: Can the shackle be used in coastal or corrosive environments?

A3: Yes, the hot-dip galvanized coating is corrosion-resistant and ideal for such environments.

Q4: What is the load capacity of the anchor shackle?

A4: Depends on size, but all models are rated for heavy-duty mechanical loads.

Q5: Is installation complicated?

A5: No, it can be installed using standard tools within minutes.
