Insulation Piercing Connector: A Smarter Way to Connect Power Lines

The Problem It Solves

Traditional line connections often require stripping conductor insulation, which increases labor time and exposes wires to potential faults. The Insulation Piercing Connector (IPC) was designed to solve this issue by allowing secure, low-resistance connections without removing insulation. This innovation has made it one of the most widely used fittings in low and medium voltage distribution networks.

What Makes an IPC Different?

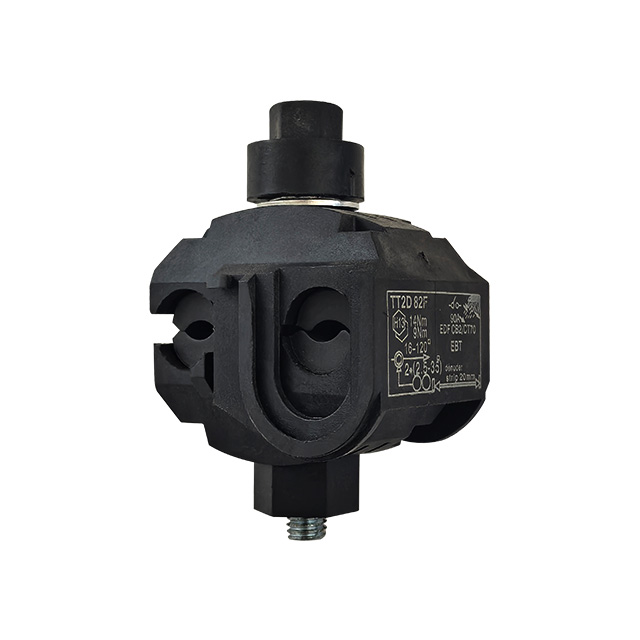

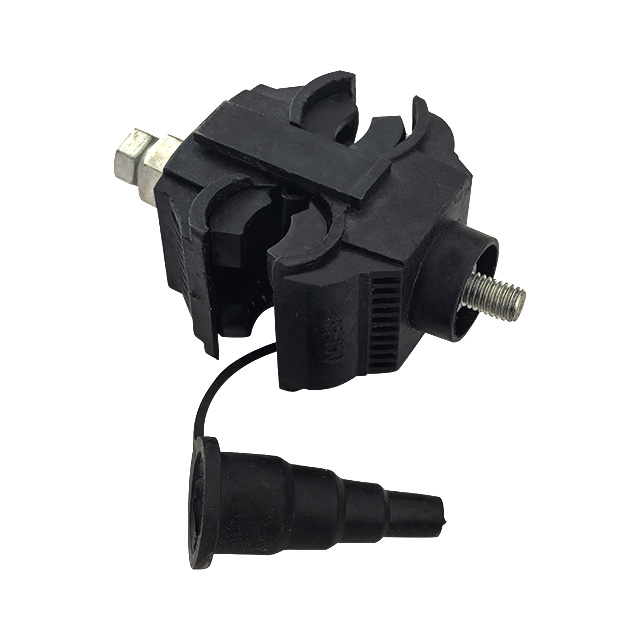

The Insulation Piercing Connector uses sharp, hardened teeth that pierce through insulation when the connector is tightened. Once installed, it establishes a strong, sealed connection between main and branch conductors.

Key design features include:

• Waterproof Sealing: Prevents moisture ingress, ensuring long-term reliability.

• Corrosion Resistance: Usually made with aluminum alloy conductors and hot-dip galvanized bolts.

• Ease of Use: Requires only a wrench to install, no special tools.

• Versatility: Compatible with aluminum and copper conductors.

Benefits That Utilities Can Rely On

1. Quick Installation

The Insulation Piercing Connector reduces installation time dramatically by eliminating stripping and crimping.

2. Enhanced Safety

Since the insulation is never removed, workers face fewer risks of electrical contact.

3. Reliable Performance

Sealed design protects against water, dust, and corrosion.

4. Cost-Effective

Reduces labor costs and maintenance requirements in distribution line hardware systems.

5. Adaptability

Works equally well for overhead lines, street lighting systems, and renewable energy connections.

Where Insulation Piercing Connectors Are Used

Instead of simply listing “applications,” here we’ll look at real-world scenarios where IPC fittings are essential:

• Urban Power Distribution: In cities, IPC connectors simplify branch connections to buildings, reducing installation time and space.

• Street Lighting Circuits: Insulation Piercing Connectors are widely used to connect service wires to main conductors in lighting poles.

• Renewable Energy Grids: In solar and wind farms, IPC fittings provide safe branch connections without complex tooling.

• Rural Electrification Projects: Their ease of use makes them ideal for low-cost electrification projects in remote areas.

• Industrial Power Networks: IPC connectors deliver reliable connections in factories and plants where wiring must remain secure under harsh conditions.

What Sets a High-Quality IPC Apart

Not all Insulation Piercing Connectors are built the same. The best designs have:

• Hot-Dip Galvanized Steel Bolts for tightening strength

• Aluminum Alloy Contact Plates for compatibility with copper and aluminum conductors

• Weatherproof Seals that meet IP54 or higher standard

• International Compliance with IEC and ANSI standards

These measures ensure that an IPC fitting delivers reliable performance over 20+ years in the field.

Questions You Might Have

Q1: Does an Insulation Piercing Connector damage the conductor?

A: No. The piercing teeth are designed to penetrate insulation without harming conductor strands.

Q2: Can IPC fittings be reused?

A: They are generally single-use connectors to ensure reliable sealing and performance.

Q3: Are IPCs safe for outdoor use?

A: Yes. Waterproof insulation piercing connectors are built for outdoor environments and can withstand rain, dust, and UV exposure.

Q4: What conductor sizes are supported?

A: IPC connectors are available in a wide range of sizes for both main and branch conductors in distribution networks.

Q5: Why choose IPC over traditional connectors?

A: Faster installation, improved safety, sealed performance, and cost savings make IPC fittings the superior choice.

Final Word

The Insulation Piercing Connector has transformed how utilities, contractors, and renewable energy providers manage electrical connections. By combining ease of installation, durability, and safety, it has become a standard in modern pole line hardware and distribution systems.

Whether in urban grids, rural projects, or solar and wind farms, investing in high-quality Insulation Piercing Connectors ensures efficient, long-lasting, and secure connections.
