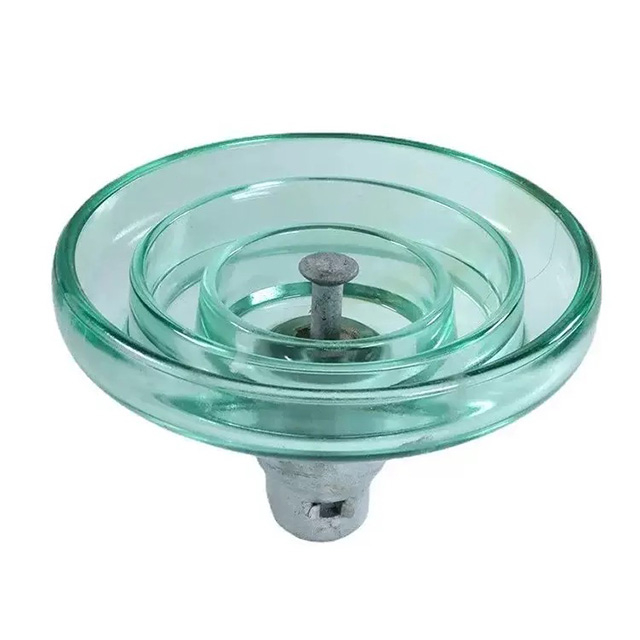

Features
(1) Compared with porcelain, it has a very high dielectric strength;
(2) High electrical resistivity;
(3) Compared with porcelain insulators, it has higher tensile strength;
(4) Due to its transparent nature, it will not be heated in sunlight like porcelain;
(5) The impurities and bubbles inside the glass insulator body are easily detected due to their transparency;
(6) The service life of glass is very long because its mechanical and electrical properties are not affected by aging; (8) Glass is cheaper than porcelain.
Parameter
Type | IEC Class | D mm | Hmm | Creepage Distance mm | Coupling Size | Min.Mechanical Failing Load KN | Min.Impact Failing Load KN | Min.Lighting Impulse Withstand Volt .KV | Power Frequency Withstand Volt.KV | Approx.Net Weight kg | |
Min.Wet One Minute | Min.Puncture volt. | ||||||||||
LXY-100 | U100BL | 255 | 146 | 320 | 16 | 100 | 678 | 100 | 40 | 110 | 4.1 |
