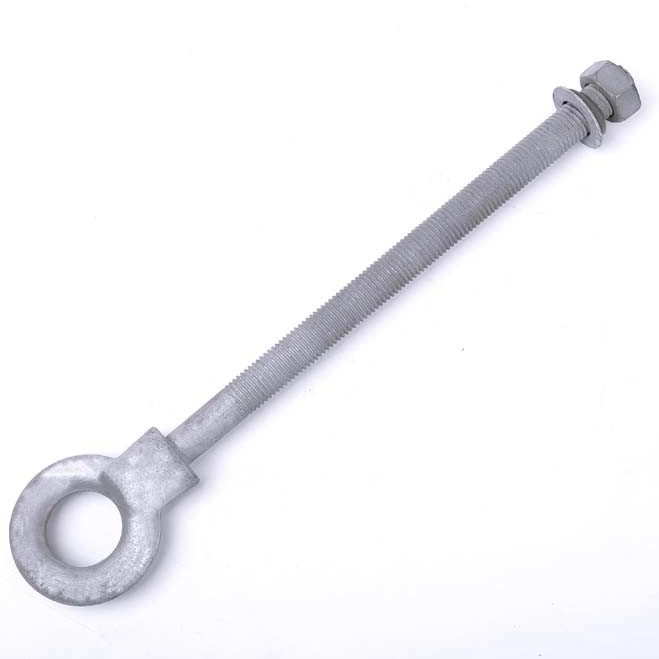

The Hot-Dip Galvanized Eye Bolt and Nut Stay Assembly Accessories are essential pole line hardware components designed for securing stay wires and stabilizing utility poles in overhead distribution systems. Manufactured with high-carbon steel and coated with ASTM A153 hot-dip galvanization, these components offer superior corrosion resistance, mechanical strength, and long-term durability in harsh outdoor electrical environments. This stay assembly provides a reliable connection for guy wires, ensuring pole line stability even under heavy wind load, tension, or vibration.
Heavy-duty construction suitable for long-term pole line tension
ASTM A153 hot-dip galvanized coating ensures rust-proof performance
Compatible with various guy wires and pole attachment systems
High mechanical strength with secure locking nut design
Easy installation and replacement in field maintenance
This Hot-Dip Galvanized Eye Bolt and Nut Stay Assembly is widely used in:
Utility power poles in overhead distribution networks
Telecom towers and communication pole structures
Street lighting supports and roadway poles
Rural electrification and transmission expansion projects
How it is used:
• The eye bolt is inserted through a pre-drilled hole in the pole or bracket
• The nut is tightened to secure the eye loop in place
• Guy wire is connected through the eye hole and tensioned using strain clamps
• Final tightening ensures mechanical stability and long-term tension performance
• Manufactured under ISO/IEC utility hardware standards
• 100% torque, tensile load and coating thickness tested
• Rust-proof and high-weather-resistance verified
• OEM specifications available upon request
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.
DOUBLE ARMING EYE BOLT
| Stock No. | Dimension mm | Approximate Shipping Weight kg./100 Pcs. | Standard Pkg. Qty./ Carton | |||||
| E1502-12 | A | B | C | D | L | T | ||
| E1502-14 | 5/8 | 1-1/2 | 2 | 5/8 | 12 | 10 | 75 | 30 |
| E1502-16 | 5/8 | 1-1/2 | 2 | 5/8 | 14 | 12 | 80 | 30 |
| E1502-12 | 5/8 | 1-1/2 | 2 | 5/8 | 16 | 14 | 86 | 30 |
| E1503-14 | 3/4 | 1-1/2 | 2 | 5/8 | 14 | 12 | 117 | 25 |
| E1503-16 | 3/4 | 1-1/2 | 2 | 5/8 | 16 | 14 | 127 | 25 |
Q1: Can the assembly be customized based on pole type?
A1: Yes, length, diameter, and thread type can be customized.
Q2: Is the coating long-lasting in coastal environments?
A2: Yes, ASTM A153 galvanization ensures long-term protection.
Q3: Does it support heavy-duty grid tension applications?
A3: Yes, it is designed for high tension and grid reinforcement.
