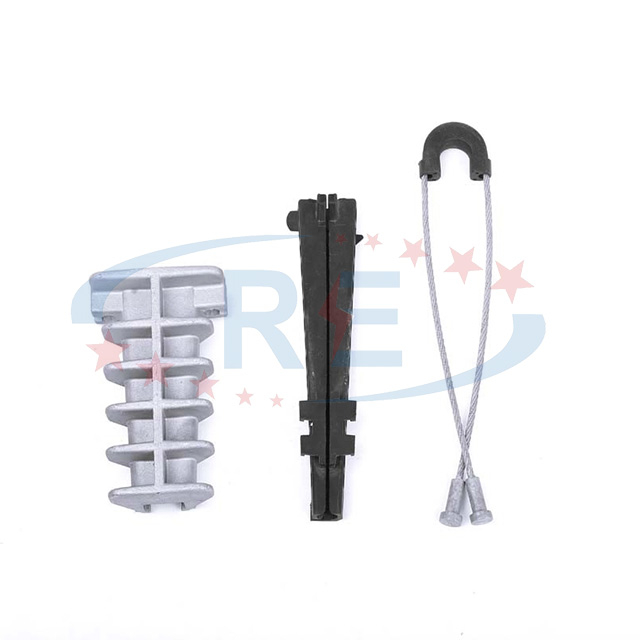

Plastic Dead End Clamp PA16~95W for LV Aerial Bundled Cable Systems

The Dead End Clamp (Tension clamps, Anchor Clamp) are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. they are in accordance with NFC 33-041.

Availability:

Quantity:



Inquire Add to Basket

Plastic Dead End Clamp PA16~95W Weatherproof Plastic Dead End Clamp PA16~95W for ABC cables PA16~95W tool-free plastic dead end clamp for LV lines Plastic Dead End Clamp PA16~95W for insulated conductors Durable PA16~95W plastic tension clamp for overhead service lines Corrosion-resistant Plastic Dead End Clamp PA16~95W PA16~95W anchoring clamp for low-voltage aerial bundled cable High-grip Plastic Dead End Clamp PA16~95W for outdoor installations UV-resistant PA16~95W dead end clamp for distribution networks Easy-install Plastic Dead End Clamp PA16~95W for ABC systems

Product Description

Tension Clamp Metal Fitting Dead End Clamp

The Plastic Dead End Clamp PA16~95W is a reliable anchoring device designed for low-voltage aerial bundled cable (ABC) systems. Made from weatherproof and UV-resistant polymer, the Plastic Dead End Clamp PA16~95W provides strong mechanical grip, long-term outdoor durability, and safe conductor termination. It allows tool-free installation, making it ideal for service lines, pole mounting, and building connections.

The tension clamp is designed for service line with 1 conductors.
- Clamp body is made of high mechanical strength and weather resistant insulation material.
- Standard: NFC33-042

Product Benefits

• High Mechanical Grip

Ensures stable anchoring for 16–95 mm² insulated conductors.

• Weatherproof & UV-Resistant

Polymer body resists sunlight, humidity, rain, and aging.

• Tool-Free Installation

Fast and simple for field crews and service connections.

• Corrosion-Free Material

Suitable for coastal, industrial, and polluted areas.

• Lightweight & Safe

Reduces construction labor intensity.

Application Scenarios & How to Apply

The Plastic Dead End Clamp PA16~95W is widely used in low-voltage aerial bundled cable systems, residential service line connections, pole-mounted LV distribution lines, building façade wiring, and rural electrification projects.

How to Apply：

1. Select the correct size according to conductor cross-section.

2. Insert the insulated conductor into the clamp body.

3. Engage the wedge until it locks automatically.

4. Hook the clamp onto pole brackets, hooks, or building eyes.

5. Check the grip strength and tension.

Quality Assurance

• Manufactured under IEC & EN standards for ABC accessories

• 100% mechanical grip test & wedge locking test

• UV resistance, temperature aging, and salt-fog tested

• Strict material inspection with batch traceability

• Optional third-party test report available

Technical Specification

Dimension
Weight:	139g
Cable Size:	4-120mm²
Mechanical
Breaking Load	2.5kN / 1.5kN
Specification
Use:	For dead-ending of cables with round shape.
Construction	Component	Material
	Body and Wedge	Weather and UV-radiation resistant thermoplastic
	Bail	Hot-dip galvanized steel
Installation	The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained.
Standard	NFC 33-042; EN 50-483
