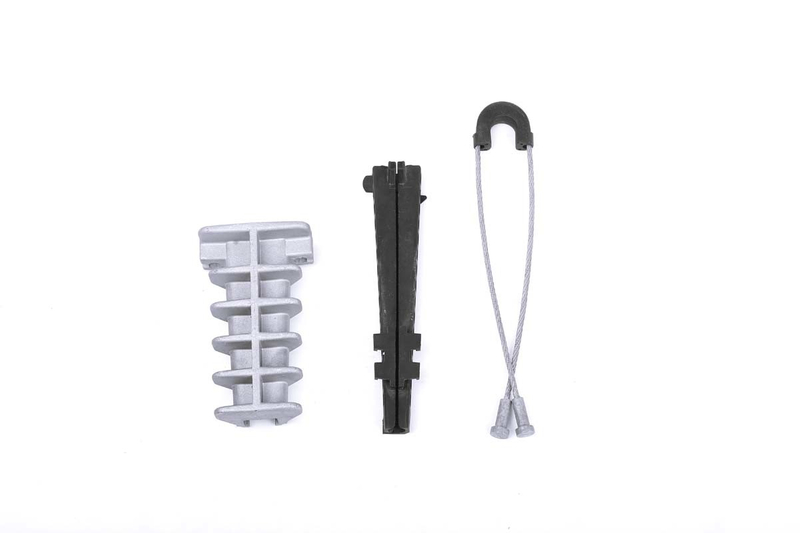

Tension Clamp Metal Fitting Dead End Clamp
The Dead End Clamp (Tension clamps, Anchor Clamp) are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. they are in accordance with NFC 33-041.
The tension clamp is designed for service line with 1 conductors.
- Clamp body is made of high mechanical strength and weather resistant insulation material.
- Standard: NFC33-042
Technical Specification
Dimension | ||
Weight: | 139g | |
Cable Size: | 4-120mm² | |
Mechanical | ||
Breaking Load | 2.5kN / 1.5kN | |
Specification | ||
Use: | For dead-ending of cables with round shape. | |
Construction | Component | Material |
Body and Wedge | Weather and UV-radiation resistant thermoplastic | |
Bail | Hot-dip galvanized steel | |
Installation | The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained. | |
Standard | NFC 33-042; EN 50-483 | |
