In the field of electrical power transmission and distribution, the reliability of every component plays a crucial role in ensuring stable energy delivery. Among the many overhead line fittings used in line systems, the suspension clamp is one of the most essential. It is designed to suspend conductors and ground wires on towers or poles while minimizing mechanical stress and electrical damage.
Whether in medium-voltage distribution networks or high-voltage transmission systems, the conductor suspension clamp is widely adopted due to its strength, durability, and ability to protect conductors from excessive bending or wear.

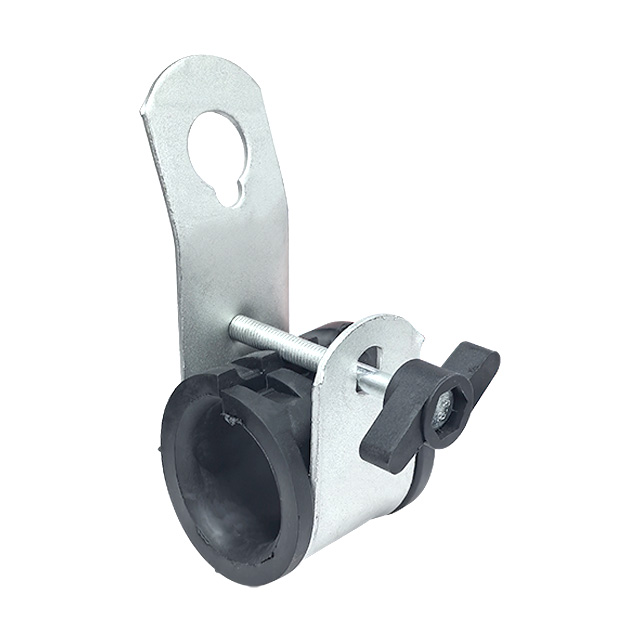

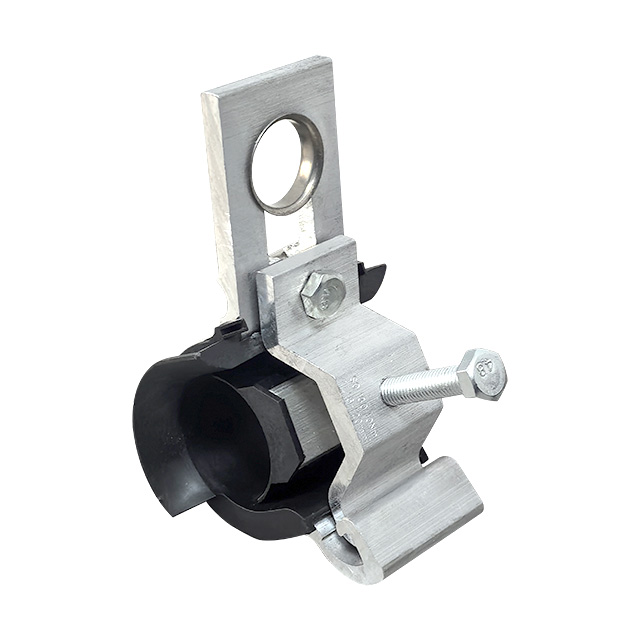

A suspension clamp is a mechanical device used to suspend or fix conductors on transmission line accessories. It is usually installed at poles or towers to support the conductor while allowing free movement to reduce mechanical stress.
Key characteristics include:
• Designed to support the conductor without causing damage.
• Provides flexibility for the conductor to move slightly under wind or thermal expansion.
• Manufactured from corrosion-resistant materials like aluminum alloy clamp or galvanized suspension clamp designs.
Types of suspension clamps include:
•Single suspension clamp – typically used for straight-line towers.
• Double suspension clamp – applied where higher mechanical strength is required.
• Armor rod reinforced suspension clamp – provides extra protection against abrasion.
Strong Mechanical Support
Suspension clamps are engineered to withstand significant tensile and mechanical loads, ensuring the conductor remains secure under harsh weather.
Conductor Protection
The conductor suspension clamp distributes pressure evenly across the conductor surface, minimizing mechanical fatigue.
Vibration Resistance
Many designs function as vibration resistant suspension clamp types, reducing damage from aeolian vibration or galloping.
Corrosion Resistance
Using hot-dip galvanized suspension clamp and aluminum alloy clamp materials, manufacturers guarantee long service life in harsh environments.
Easy Installation
Suspension clamp installation is straightforward, requiring only basic tools.
Long Service Life
Due to quality materials, a suspension clamp can last decades with minimal maintenance.
Applications of Suspension Clamps
1.Transmission Lines
Suspension clamps are widely applied as power line hardware in high-voltage systems.
2.Distribution Lines
Used as distribution line fittings in 10kV–35kV networks.
3.Railway Electrification Systems
Special railway suspension clamp designs ensure safe catenary conductor support.
4.Communication Lines
They are essential for OPGW suspension clamp applications in telecom systems.
5.Renewable Energy Projects
From wind farms to solar power, suspension clamps are part of modern electrical fittings.
High-quality suspension clamps comply with ANSI standard clamp requirements. Manufacturers ensure:
• Material testing – confirming aluminum alloy clamp and galvanized steel strength.
• Load testing – proving each suspension clamp withstands designed stress.
• Corrosion resistance testing – ensuring long-term durability.
Installation Guidelines
1. Choose the right suspension clamp according to conductor size.
2. Ensure correct suspension clamp installation torque.
3. Use protective rods when installing conductor suspension clamp models.• Standard Compliance: Must meet IEC, ANSI, and ASTM standards.
Maintenance Tips
• Inspect power line hardware for corrosion.
• Replace damaged suspension clamps immediately.
• Apply protective coating in coastal areas.
Q1: What materials are used?
A1:Most suspension clamps are made from aluminum alloy clamp or galvanized suspension clamp designs.
Q2: Can they be reused?
A2: While some transmission line accessories can be reused, new clamps are recommended.
Q3: How do they protect conductors?
A3:Conductor suspension clamps distribute pressure evenly.
Q4: What is the difference between suspension clamp and strain clamp?
A4: A suspension clamp supports the conductor; a strain clamp anchors under full tension.
Q5: Do they require special tools?
A5: In most suspension clamp installation projects, basic tools are sufficient.
The suspension clamp is a vital element in power line hardware. By offering reliable support, vibration resistance, and corrosion protection, suspension clamps ensure the safe operation of overhead line fittings in transmission, distribution, and communication networks.
Partnering with a trusted suspension clamp supplier guarantees high-quality transmission line accessories, long-term reliability, and compliance with ANSI standard clamp requirements.
As demand for energy grows, the role of the suspension clamp in building resilient electrical infrastructure becomes even more essential.
