What Is A Porcelain Insulator?

Have you ever wondered how power lines stay connected and safe? Porcelain insulators play a crucial role in electrical systems. These components provide essential electrical insulation and mechanical support for power transmission.

In this article, we will explore what porcelain insulators are and their importance in the electrical industry. You'll also learn about Zhejiang Reacon Electric Group Co., Ltd., a leading manufacturer dedicated to quality in this field.

Composition and Manufacturing of Porcelain Insulators

Materials Used

Porcelain insulators are crafted from a unique blend of natural materials, primarily clay, quartz, and feldspar. Each component plays a critical role in the insulator's performance.

● Clay provides plasticity, allowing for easy shaping before firing. It contributes essential aluminosilicate compounds.

● Quartz offers strength and thermal stability, ensuring the final product can withstand high temperatures.

● Feldspar acts as a flux, lowering the melting temperature during firing. This helps create a dense, glass-like structure.

The significance of high-temperature firing cannot be overstated. This process, typically occurring between 1200°C and 1400°C, transforms the raw materials into a robust ceramic. This transformation is crucial for achieving the desired mechanical strength and electrical insulation properties.

Manufacturing Process

The manufacturing of porcelain insulators involves several key steps:

1.  Forming: The raw materials are mixed and shaped using methods like slip casting or extrusion. This creates the basic form of the insulator.

2.  Drying: After forming, the insulators undergo a careful drying process. This prevents uneven moisture loss, which could lead to cracks.

3.  High-Temperature Firing: The dried insulators are fired at high temperatures. This step is essential for bonding the materials together, resulting in a strong, durable product.

4.  Glazing: Finally, a smooth glaze is applied. This not only enhances the aesthetic appeal but also protects against moisture and contamination.

Importance of Glazing

Glazing serves multiple functions:

● It creates a smooth surface, reducing dirt accumulation.

● The glaze prevents moisture absorption, making insulators suitable for outdoor environments.

● It enhances the mechanical strength of the insulator, ensuring longevity and reliability.

Reacon's Innovation

Zhejiang Reacon Electric Group Co., Ltd. stands out in the insulator manufacturing industry. They continuously optimize their processes to improve product quality.

For instance, Reacon employs advanced glazing techniques that enhance the insulator's resistance to environmental factors. They also focus on rigorous quality control measures, ensuring each insulator meets international standards like ISO 9001:2015.

This commitment to innovation not only boosts durability but also reinforces Reacon's reputation as a leading manufacturer of porcelain insulators.

As a result, Reacon's porcelain insulators are trusted in critical applications, ensuring safety and performance in electrical systems worldwide.

Core Functions of Porcelain Insulators

Electrical Insulation

Porcelain insulators play a vital role in preventing current leakage in electrical systems. They create a strong barrier between energized conductors and grounded structures. This insulation is crucial for maintaining safety and efficiency in power transmission.

The dielectric strength of porcelain insulators typically exceeds 10 kV/mm, which means they can withstand high voltages without breaking down. This property is essential for preventing electrical failures and ensuring the reliability of power lines. The ability to isolate electrical currents helps protect both infrastructure and personnel from hazards.

Mechanical Support

In addition to electrical insulation, porcelain insulators provide essential mechanical support. They are designed to bear the weight of conductors, which can be significant, especially in high-voltage applications.

These insulators must also resist various environmental stresses, including wind, ice, and thermal expansion. The robust design of porcelain insulators ensures they maintain structural integrity under these conditions. For example, during heavy winds or ice storms, the insulators remain stable, ensuring the safety of the entire electrical system.

Reacon's Products

Zhejiang Reacon Electric Group Co., Ltd. offers a range of porcelain insulators tailored for different voltage levels and applications. Here are a few notable models:

These models are engineered to provide superior insulation and mechanical support, meeting international standards for safety and performance. Reacon's commitment to quality ensures that their porcelain insulators deliver reliability in critical applications, making them a trusted choice for utility companies worldwide.

Types of Porcelain Insulators

Porcelain insulators come in various designs, each tailored for specific applications in electrical systems. Understanding these types helps in selecting the right insulator for different environments and voltage levels.

Disc Insulators

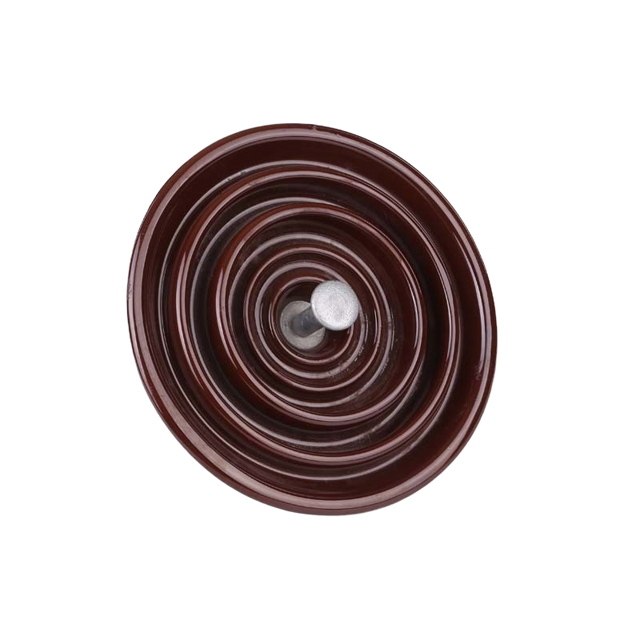

Disc insulators are circular in shape and primarily used in high-voltage transmission lines. They are stacked together to form an insulator string, enhancing their mechanical strength and electrical insulation. This design allows them to withstand extreme weather conditions and high voltage levels, making them ideal for overhead power lines.

The versatility of disc insulators means they can be used in various configurations, depending on the voltage requirements. Their robust design ensures reliable performance, even in challenging environments.

Pin-Type Insulators

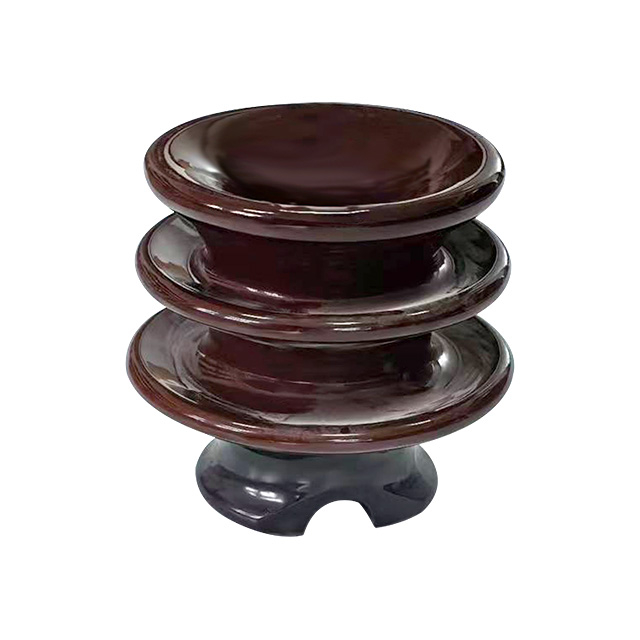

Pin-type insulators are commonly found in low to medium voltage distribution systems. They are mounted on poles and support the electrical conductors directly. These insulators are designed to handle the weight of the wires while providing effective insulation.

Due to their simple design and ease of installation, pin-type insulators are widely used in residential and commercial areas. They are an economical choice for utility companies, making them a frequent selection for overhead distribution lines.

Post-Type Insulators

Post-type insulators are utilized primarily in substations for busbars and switchgear. Their vertical design allows them to support heavy electrical components while providing excellent insulation.

These insulators are essential in maintaining the integrity of electrical connections in substations. Their robust construction ensures they can handle high mechanical loads and electrical stresses, making them a reliable choice for critical infrastructure.

Stay Insulators

Stay insulators serve a unique function in providing tension support for wires. They are used to stabilize overhead lines, especially in areas where the lines experience significant tension due to wind or weight from ice.

By anchoring the wires securely, stay insulators prevent sagging and maintain the proper clearance from the ground. This functionality is crucial for safety and reliability in power distribution networks.

Hollow Bushings

Hollow bushings are specialized insulators used in transformers and circuit breakers. They allow electrical conductors to pass through a grounded barrier while maintaining insulation.

These insulators are critical in preventing short circuits and ensuring safe operation within electrical equipment. Their design accommodates both electrical and mechanical requirements, making them essential components in high-voltage applications.

Reacon's Product Range

Zhejiang Reacon Electric Group Co., Ltd. offers a comprehensive range of porcelain insulators tailored for various applications. Here’s a brief overview of some key products:

Reacon's commitment to quality ensures that each insulator meets stringent safety and performance standards, making them a trusted choice for electrical utilities worldwide. Their diverse product line caters to the varying needs of the electrical industry, ensuring reliability and efficiency in power distribution systems.

Advantages of Using Porcelain Insulators

When it comes to electrical insulation, porcelain insulators offer numerous advantages. Their unique properties make them a popular choice in various applications. Let’s explore some of the key benefits.

Durability and Longevity

One of the standout features of porcelain insulators is their durability. These insulators have an expected lifespan often exceeding 50 years, making them a long-term investment for utility companies. Their resistance to environmental degradation ensures they can withstand harsh weather conditions, including high temperatures, humidity, and UV radiation.

This longevity means fewer replacements and reduced maintenance costs over time, allowing utilities to focus resources elsewhere.

Mechanical Properties

Porcelain insulators boast impressive mechanical properties, including high compressive strength and rigidity. This strength allows them to support heavy electrical conductors without deforming or breaking.

The ability to withstand mechanical stresses, such as wind and ice load, is crucial for maintaining the integrity of power lines. For example, during storms, porcelain insulators remain stable, ensuring continuous service and safety.

Chemical Resistance

Another significant advantage is their chemical resistance. Porcelain insulators are immune to damage from acid rain and various industrial pollutants. This immunity helps maintain their performance over time, even in polluted environments.

Their resistance to chemical degradation means they can be installed in a wide range of locations without fear of deterioration. This reliability is essential for utilities operating in urban areas with high pollution levels.

Cost-Effectiveness

While the initial costs of porcelain insulators may be higher than some alternatives, their cost-effectiveness becomes apparent over time. The long-term reliability and minimal maintenance needs often outweigh the initial investment.

Utilities can save significantly on replacement and repair costs, making porcelain insulators a smart choice for sustainable and economical operations.

Reacon's Commitment

Zhejiang Reacon Electric Group Co., Ltd. emphasizes quality in every porcelain insulator they produce. Their commitment to quality management systems, such as ISO 9001:2015, ensures that all products meet stringent performance and safety standards.

By focusing on quality, Reacon enhances the durability and reliability of their porcelain insulators, making them a trusted choice for electrical utilities around the globe.

These features collectively contribute to the widespread use of porcelain insulators in the electrical industry, ensuring safety and efficiency in power distribution.

Future Trends in Porcelain Insulator Technology

As the electrical industry evolves, so too does the technology surrounding porcelain insulators. Innovations and trends are shaping the future, making these insulators more efficient, sustainable, and integrated into modern power systems.

Advancements in Design

Recent advancements in design focus on improving both materials and manufacturing processes. New composite materials are being explored to enhance the performance of porcelain insulators. These innovations aim to increase durability while reducing weight, making installation easier and more efficient.

Additionally, advanced manufacturing techniques, such as 3D printing, are being considered. This could lead to more precise designs and lower production costs. These advancements not only improve the functionality of insulators but also open doors to custom solutions tailored for specific applications.

Smart Grid Integration

The integration of smart grid technologies is another significant trend impacting porcelain insulators. Sensors and monitoring technologies are being embedded within insulators to provide real-time data on their condition.

This capability allows for proactive maintenance, reducing the risk of failures and outages. By continuously monitoring factors like temperature and electrical stress, utilities can make informed decisions about maintenance schedules and replacements. This shift towards data-driven management enhances the reliability of power systems, ensuring a seamless energy supply.

Sustainability Considerations

Sustainability is becoming increasingly important in the production and disposal of porcelain insulators. Eco-friendly practices are being adopted to minimize environmental impact.

Manufacturers are exploring ways to reduce waste during production and utilize recycled materials. Additionally, the end-of-life disposal of porcelain insulators is being addressed, with initiatives aimed at recycling and repurposing materials. This commitment to sustainability not only benefits the environment but also aligns with consumer demand for greener products.

Reacon's Vision

Zhejiang Reacon Electric Group Co., Ltd. is at the forefront of these trends, demonstrating a strong commitment to advancing technology and sustainability in the electrical industry. Their focus on innovative designs and smart technologies ensures that their porcelain insulators meet the demands of modern power systems.

Reacon's adherence to quality management systems, such as ISO 9001:2015, guarantees that their products not only perform reliably but also contribute to a sustainable future. By prioritizing eco-friendly practices and integrating smart technologies, Reacon is shaping the future of porcelain insulators.

These trends reflect the ongoing evolution of porcelain insulators, positioning them as vital components in the future of electrical infrastructure.

Conclusion

Porcelain insulators are crucial for electrical systems. They provide durability, mechanical support, and chemical resistance. Their longevity often exceeds 50 years, making them cost-effective.

As technology advances, innovations in design and smart grid integration enhance their performance. Consider choosing porcelain insulators from trusted brands like Reacon for reliability and superior performance in your electrical applications.

FAQ

Q: What are the main functions of porcelain insulators?

A: Porcelain insulators provide electrical insulation, mechanical support, and protection against environmental degradation.

Q: How long do porcelain insulators typically last?

A: They often have a lifespan exceeding 50 years, ensuring long-term reliability.

Q: What maintenance is required for porcelain insulators?

A: Minimal maintenance is needed, primarily involving periodic inspections for damage or wear.

Q: Are porcelain insulators suitable for all environments?

A: Yes, they are resistant to chemicals, moisture, and temperature variations, making them versatile.

Q: What innovations are being made in porcelain insulator technology?

A: Innovations include advanced materials, smart grid integration, and eco-friendly production practices.

Q: How does Reacon ensure the quality of its porcelain insulators?

A: Reacon adheres to ISO 9001:2015 standards, ensuring superior performance and reliability.
