What is the difference between porcelain and polymer insulators

Electric power systems rely heavily on insulators to maintain safety and efficiency. Historically, porcelain insulators have been the backbone of power transmission, valued for their robustness and reliability. However, with technological advancements, polymer insulators have emerged as a modern alternative offering distinct benefits. Utilities and engineers are now evaluating these options to optimize performance under various conditions.

Understanding the differences between porcelain and polymer insulators is crucial for making informed decisions in power infrastructure development and maintenance.

Porcelain and polymer insulators differ in material composition, mechanical and electrical properties, environmental performance, and maintenance requirements.

Material Composition and Properties

Porcelain insulators are crafted from ceramic materials fired at high temperatures, resulting in a hard, brittle product with high mechanical strength and excellent electrical insulation properties. Their rigidity and weight are characteristic features, and they are known for enduring significant compressive forces.

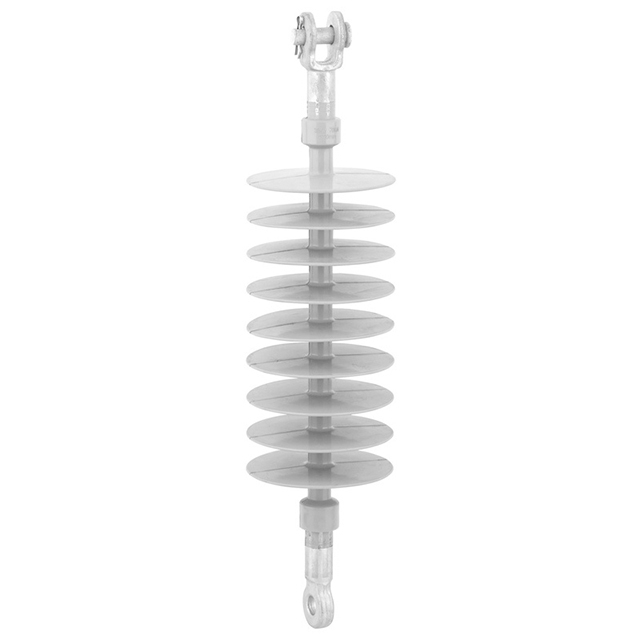

In contrast, polymer insulators consist of a fiberglass core rod enveloped in a polymeric housing made from materials like silicone rubber. This composition results in a lightweight and flexible insulator with good mechanical strength and hydrophobic surface properties that improve performance in wet conditions.

Environmental Performance

Porcelain insulators are resistant to UV radiation and temperature extremes but can accumulate contaminants like dust and pollution on their surfaces. This contamination can reduce their insulating effectiveness and necessitate regular cleaning. Their hydrophilic surfaces allow water to form conductive films, increasing leakage currents.

Polymer insulators excel in polluted and wet environments due to their hydrophobic surfaces, which repel water and reduce contamination effects. This property minimizes maintenance needs and improves reliability in adverse conditions. However, polymers may degrade over time when exposed to UV radiation and pollutants, although modern materials have improved resistance.

Maintenance and Lifespan

The rigid nature of porcelain insulators means that any mechanical damage often leads to replacement. They require periodic cleaning to maintain performance, increasing maintenance efforts over time. Porcelain insulators typically have a long service life, often exceeding several decades.

Polymer insulators generally require less maintenance due to their self-cleaning surfaces and resistance to contamination. Their flexibility reduces the risk of mechanical damage from impacts or vibrations. While early polymer insulators had concerns about longevity, advancements have extended their expected service life to be competitive with porcelain.

In summary, the choice between porcelain and polymer insulators depends on various factors, including environmental conditions, maintenance capabilities, and specific application requirements. Porcelain insulators offer proven durability and strength but may demand more upkeep in polluted environments. Polymer insulators provide advantages in weight, contamination resistance, and ease of handling, making them suitable for challenging conditions and modern installations.

Evaluating the differences enables power system designers and operators to select the most appropriate insulator type, ensuring safety, reliability, and efficiency in electric power transmission.

FAQ

1. Which insulator type is better for coastal areas?
   Polymer insulators are often preferred in coastal areas due to their superior performance in high humidity and salt-rich environments.

2. Do porcelain insulators have a longer lifespan than polymer insulators?
   Porcelain insulators traditionally have a longer proven service life, but modern polymer insulators are designed to offer comparable longevity.

3. Can polymer insulators be used in high-voltage applications?
   Yes, polymer insulators are suitable for high-voltage applications and are increasingly used across various voltage levels due to their excellent insulating properties.
