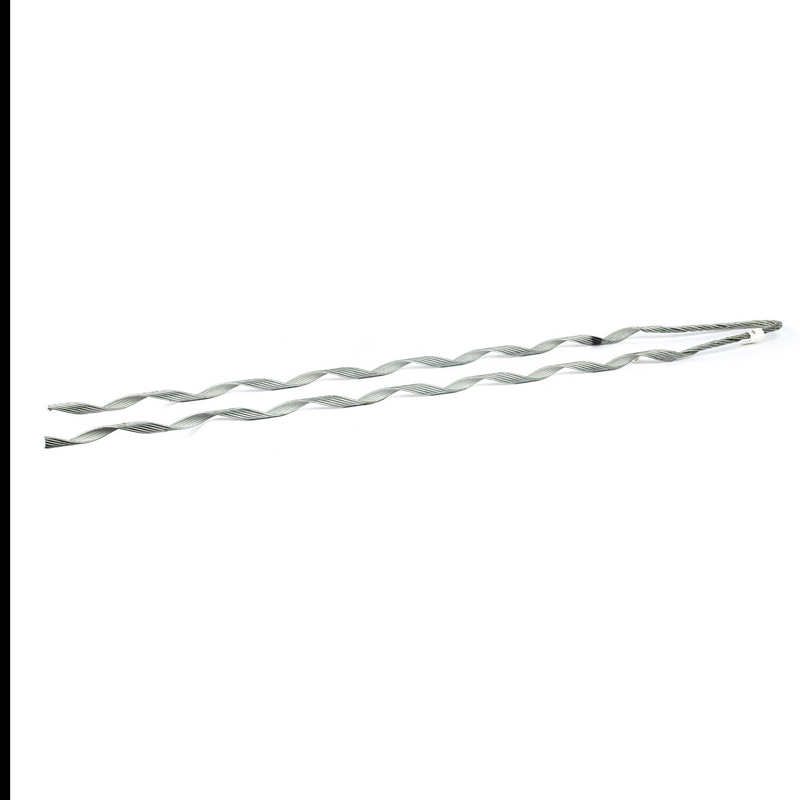

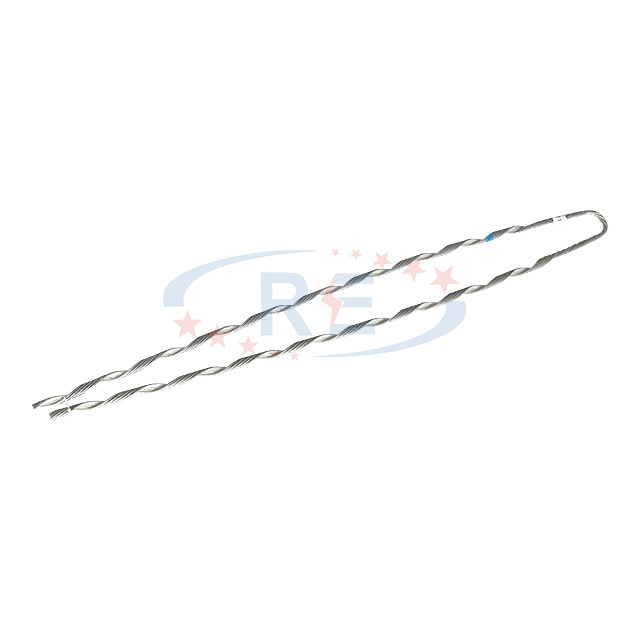

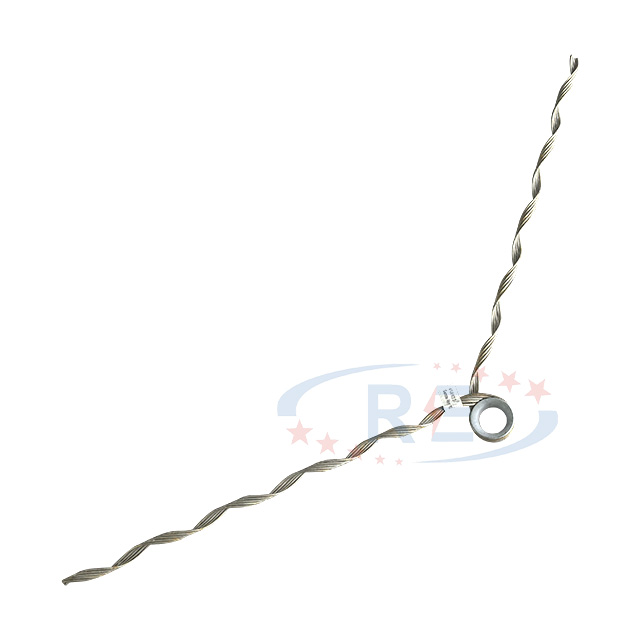

Galvanized Steel Preformed Guy End Guy Grips

Dead end guy grips, installed at the top, the breaker and the anchor, provide today's most effective method for

securing guy strand. This unique, one-piece dead-end is neat in appearance and free from bolts or high-stress

holding devices. The dead end guy grips was the first to offer the cabled loop, a feature that provides more

durability, easier tensioning and adaptability to multiple guying.

Dead end guy grips are made of the same material as the strand to which they are applied. They should be used

on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the

strand. They should not be used as tools; that is, come-along, pulling-in grips, etc.

Features:

Pre twisted wire is a product made by pre twisting several single stranded spiral metal wires. According to the cross-sectional size of the wire, rotate the spiral metal wire with the specified inner diameter in the spiral direction to form a tubular cavity. The pre twisted wire is wrapped in a spiral around the outer layer of the wire. Under the tension of the wire, the spiral rotates, forming an anchoring force and grip force on the wire. The greater the tension of the wire, the tighter the spiral rotates, and the greater the grip force on the wire.

Parameter

Breaking force:20kN,30kN,40kN,50kN,60kN,70kN,80kN,100kN
