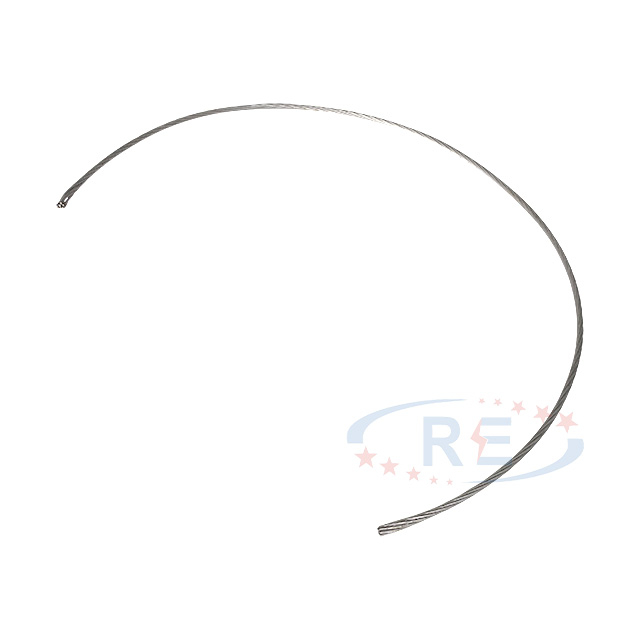

Preformed Guy Grip is designed to secure stay wires to utility poles. Made of high-strength steel, it features easy installation, strong tension performance, and excellent corrosion resistance.
Our advantages
1.Professional responsibility
2. Good quality and affordable price
3. Good after-sales service
4. One on one dedicated person to answer your questions
5. Tight packaging
6.Flash shipment
Application Scenarios
1.Conductor fixation in overhead transmission lines
2. Tensioning and connection in power lines
3. Support for communication lines
4. Rural distribution projects
Parameter
Catalogue Number | Conductors GBT117199/83LGJ/LGJF | Length | Pieces | |
Section(mm2) | O.D(mm) | |||
TNL-16/3 | 16/3 | 5.55 | 444 | 3 |
TNL-25/4 | 25/4 | 6.96 | 546 | 3 |
TNL-35/8 | 35/8 | 8.16 | 622 | 3 |
TNL-50/8 | 50/8 | 9.60 | 685 | 3 |
TNL-70/10 | 70/10 | 11.4 | 736 | 3 |
TNL-95/15 | 95/15 | 13.61 | 876 | 4 |
TNL-95/20 | 95/20 | 13.87 | 876 | 4 |
TNL-120/7 | 120/7 | 14.5 | 876 | 4 |
TNL-120/20 | 120/20 | 15.07 | 889 | 4 |
TNL-120/25 | 120/25 | 15.74 | 889 | 4 |
TNL-150/8 | 150/8 | 16.00 | 889 | 4 |
TNL-150/20 | 150/20 | 16.67 | 1016 | 5 |
TNL-150/25 | 150/25 | 17.10 | 1016 | 5 |
TNL-150/35 | 150/35 | 17.5 | 1016 | 5 |
TNL-185/10 | 185/10 | 18.00 | 1016 | 5 |
TNL-185/25 | 185/25 | 18.88 | 1155 | 6 |
TNL-185/30 | 185/30 | 18.90 | 1155 | 6 |
TNL-185/45 | 185/45 | 19.00 | 1155 | 6 |
TNL-210/10 | 210/10 | 19.60 | 1155 | 6 |
TNL-210/25 | 210/25 | 19.98 | 1155 | 6 |
TNL-210/35 | 210/35 | 20.38 | 1155 | 6 |
TNL-210/50 | 210/50 | 20.86 | 1155 | 6 |
TNL-240/30 | 240/30 | 21.60 | 1270 | 8 |
TNL-240/40 | 240/40 | 21.66 | 1270 | 8 |
TNL-300/15 | 300/15 | 23.04 | 1270 | 8 |
TNL-300/20 | 300/20 | 23.43 | 1270 | 8 |
TNL-300/25 | 300/25 | 19.76 | 1442 | 10 |
TNL-300/40 | 300/40 | 26.94 | 1442 | 10 |
TNL-300/50 | 300/50 | 24.26 | 1442 | 10 |
Frequently Asked Questions：
Q1: Is the preformed wire difficult to install?
A1: Very easy, can be installed manually without special tools.
Q2: Is it compatible with various conductors?
A2: Yes, it fits a wide range of standard conductor sizes.
Q3: Will it damage the conductor?
A3: No, its design ensures even pressure and surface protection.
Detail 1
