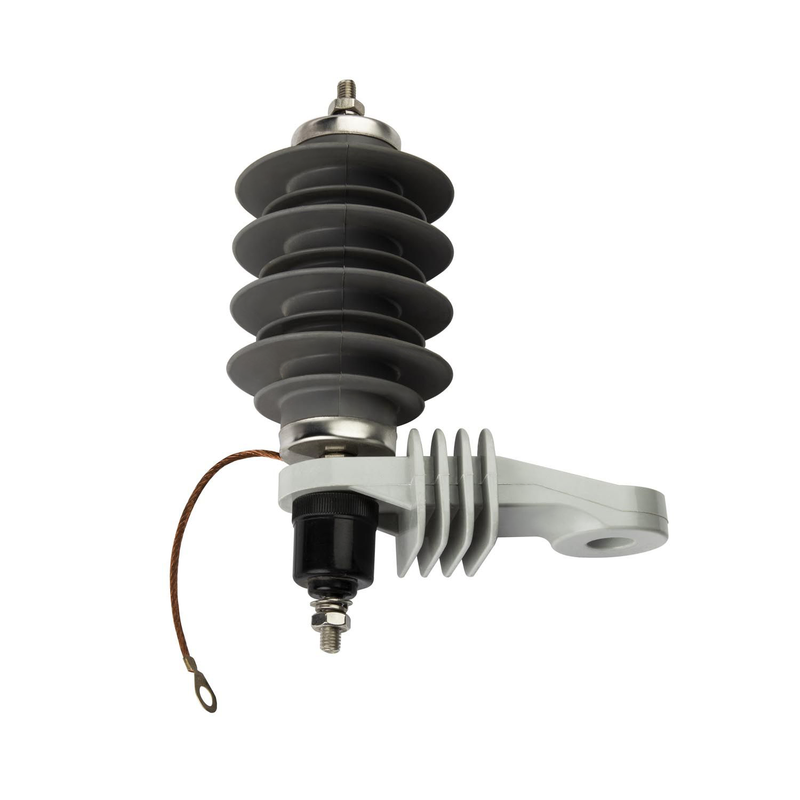

Polymeric Housed Zinc Oxide Surge Arrester Without Gaps

Availability:

Quantity:



Inquire Add to Basket

Lightning Surge Arreste

Product Description

9kv Heavy Duty Lightning Arrester

Surge arrester is mainly used to protect distribution transformer, cable connector and electric equipment from being damaged by lighting impulse voltage and operated over-voltage.

Features:

1. The Core column applied winding structure, Polymer Housed core pillar molded on the core column, with almost no internal air gap, and outstanding sealing performance Simple in structure, small in size and light in weight.
2. Polymer Housed with silicone rubber, explosion-proof ZnO varistor as the core component is large
in flow capacity.
3. International standard IEC 60099-4 and ANSI 62.22, and with high reliability. With fully insulated tops, the product can be applied to the complete cabinet installation, which can reduce the designing size of cabinet.
4. Products with detachment device can provide signals for quitting operation when failure occurs,
avoiding arrester explosion, and it is maintenance-free.
5. Polymer housed products with a six CTI level, creepage distance meets the requirements of IV level in heavy pollution areas.

Parameter

Type	Nominal System Voltage KV	Rated voltage KV	Continuous operating voltage KV	MRV under 1/5μs steep discharge current KV		MRV under 8/20μs lightning discharge current		MRV under 30/60μs operating discharge current KV		Minimum reference voltage under 1 mA DC	4/10μs high current impulse twice(KA)	2mS SW through-flow capacity A/18
Type	Nominal System Voltage KV	Rated voltage KV	Continuous operating voltage KV	5KA	10KA	5KA	10KA	0.1KA	0.25KA	Minimum reference voltage under 1 mA DC	4/10μs high current impulse twice(KA)	2mS SW through-flow capacity A/18
YH10W5-96/250	110	96	75		280		250		213	140	100	600
YH10W5-100/250	110	100	78		291		260		221	145	100	600
YH10W5-102/266	110	102	79.6		297		266		226	148	100	600
YH10W5-108/281	110	108	84		315		281		239	157	100	600
