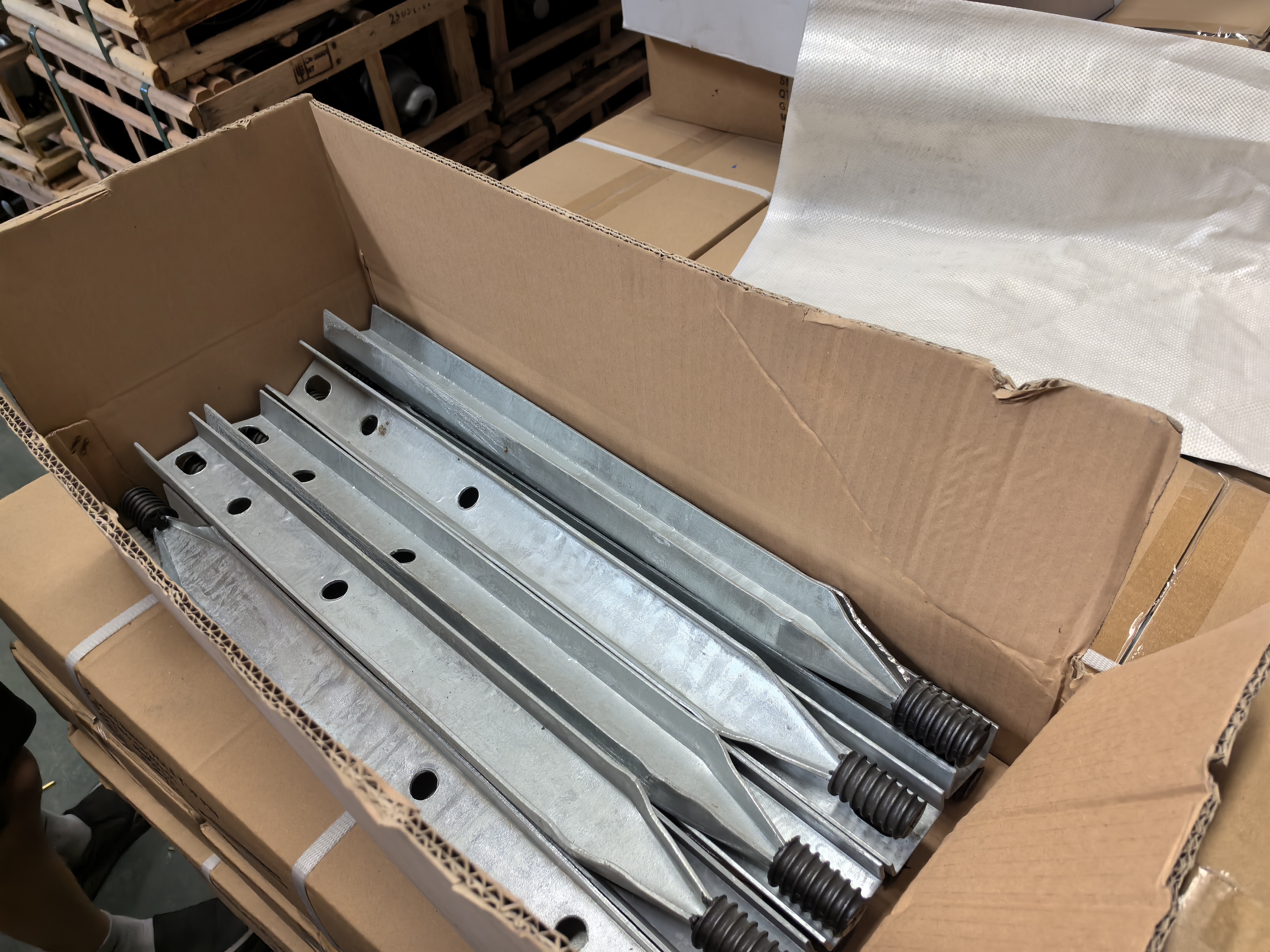

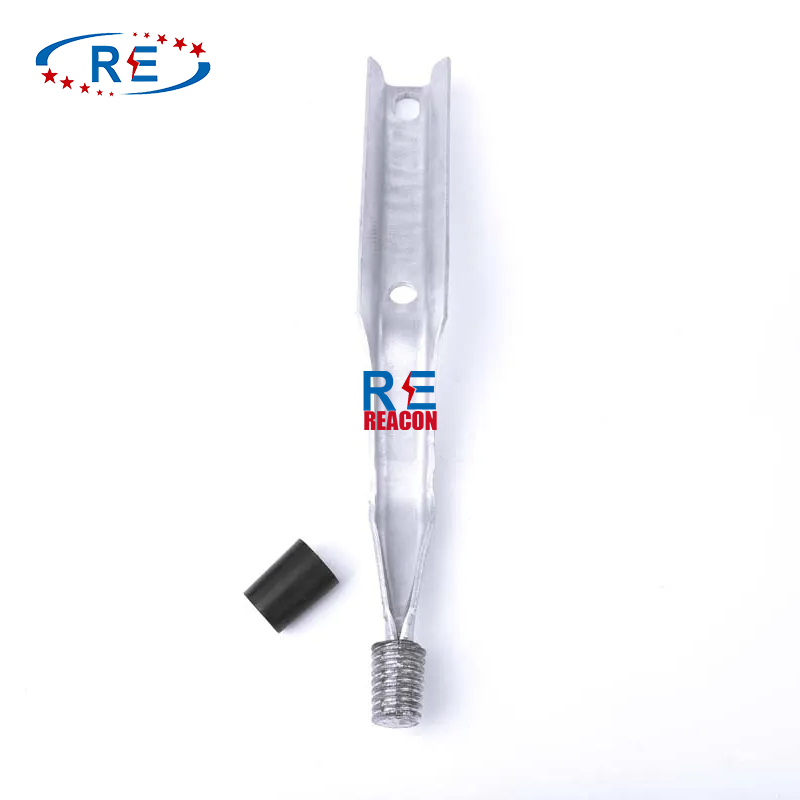

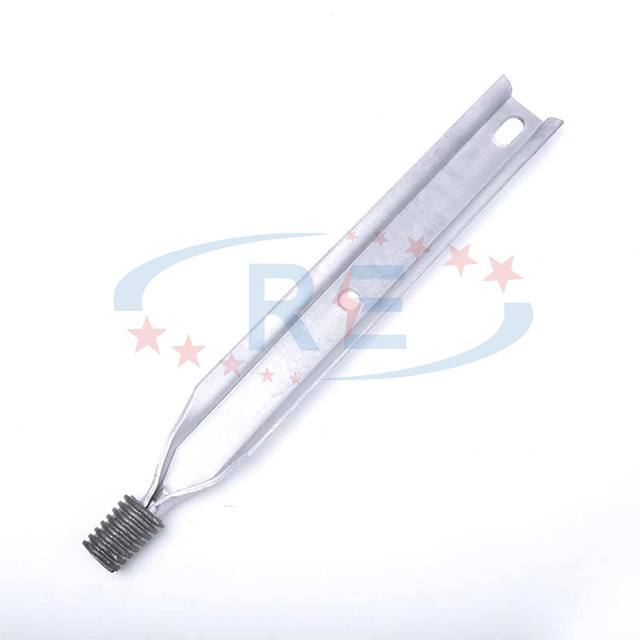

Standard Pole Line Hardware Galvanized Pole Top Pin

The Standard Pole Line Hardware Galvanized Pole Top Pin is engineered for supporting insulators in overhead power distribution systems and transmission networks. Manufactured from high-strength forged steel and coated with ASTM A153 hot-dip galvanization, this Galvanized Pole Top Pin provides long-term corrosion resistance, mechanical durability, and stable load-bearing performance under tension, wind pressure, vibration, and continuous outdoor exposure. With standardized threading and universal insulator compatibility, the Galvanized Pole Top Pin ensures reliable installation and alignment of porcelain or composite insulators in 11kV–69kV power line applications.

Product Advantages:

1. Heavy-duty forged steel construction for long service life

2. ASTM A153 hot-dip galvanized coating ensures anti-rust and weather resistance

3. Compatible with multiple insulator types and line configurations

4. High load-bearing capability for tension and suspension applications

5.Simple installation with standard mounting hole alignment

Application Scenarios & How to Use:

The Galvanized Pole Top Pin is widely applied in:

1. Overhead Distribution Systems (11–38kV)

Installed on pole crossarms to secure insulators for primary conductors.

2. Transmission Line Towers (Up to 69kV)

Used to mount top-mounted pin insulators for tension and suspension lines.

3. Rural Electrification and Utility Upgrades

Ideal for long-distance feeder extensions with harsh environments.

4. Renewable Grid Integration (Solar/Wind)

Stabilizes conductor support in new or hybrid networks.

Installation Method：

• Position the Galvanized Pole Top Pin onto the crossarm mounting hole

• Secure fasteners (nut, washer, locking hardware)

• Install the porcelain/composite insulator onto the threaded pin

• Tighten with torque tools for secure alignment

• Complete conductor attachment using appropriate clamps

Quality Assurance:

• Meets IEC/IEEE/ANSI standard pole line hardware requirements

• 100% load test, coating thickness test, and thread accuracy inspection

• Designed for long-term outdoor exposure without corrosion failure


Our advantages：

1. High end quality

2. High cost-effectiveness: direct sales from manufacturers without intermediaries

3. Exquisite workmanship, controlling every detail

4. Select high-quality materials

Parameter:

FAQ：

Q1: Can this pole top pin be customized in size or thread type?

A1: Yes, OEM customization is available.

Q2: Is the galvanization suitable for coastal humidity or salty environments?

A2: Yes, ASTM A153 hot-dip galvanizing ensures long-term rust resistance.

Q3: Which insulator types are compatible?

A3: Porcelain pin type and composite insulators are fully compatible.
