Tension Clamp | Reliable and High-Strength Power Line Fitting

Introduction

A Tension Clamp is one of the most critical components in the world of power line hardware. It plays a vital role in terminating and anchoring conductors on poles or towers in overhead transmission lines. By providing a secure grip and superior tensile strength, the Tension Clamp ensures that electrical conductors remain stable even under heavy mechanical loads, wind pressure, or ice accumulation.

As part of transmission line accessories, a Tension Clamp is specifically designed to withstand high levels of tension while maintaining the integrity of the conductor. This makes it a preferred Power Line Fitting for modern electrical networks, whether in high-voltage transmission, railway electrification, industrial systems, or renewable energy projects.

Product Overview

The Tension Clamp, also known as a Dead End Tension Clamp or Overhead Line Clamp, is engineered to provide reliable end anchoring of conductors. It is commonly used at terminal points of lines, angle poles, or where mechanical stress is concentrated.

Common Types of Tension Clamp

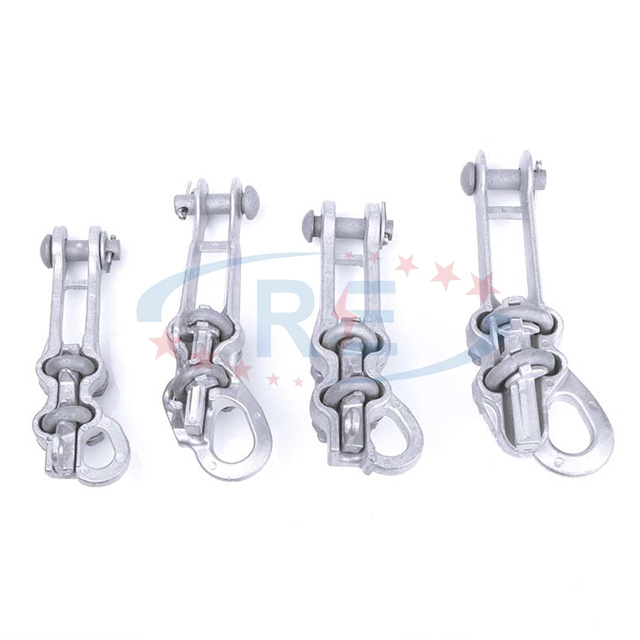

1. Bolted Tension Clamp – Designed with bolts for fastening; widely used across various voltage levels.

2. Compression Tension Clamp – Installed using compression technology to provide a permanent and highly reliable connection.

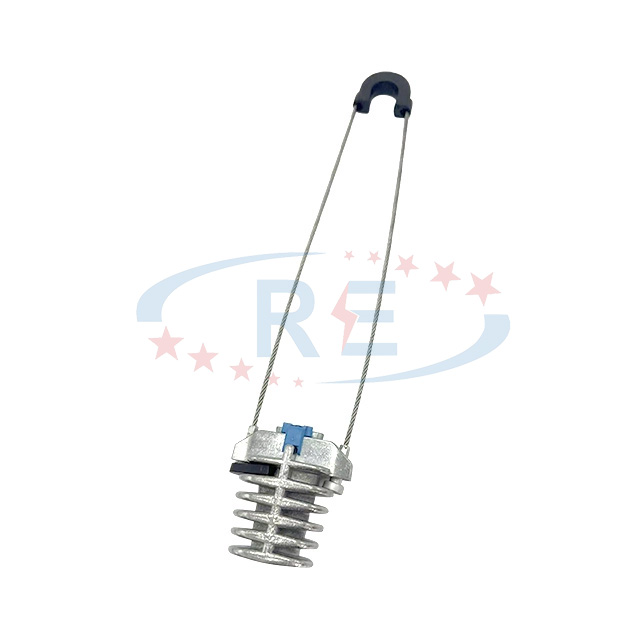

3. Wedge-Type Tension Clamp – Features a self-gripping wedge mechanism that simplifies installation and enhances efficiency.

Material Options

•Galvanized Steel Clamp – Offers strong corrosion resistance and durability.

• Aluminum Alloy Clamp – Lightweight with excellent mechanical strength.

• Stainless Steel Clamp – Ideal for highly corrosive environments or coastal installations.

Advantages of Tension Clamp

1. High Mechanical Strength

The Tension Clamp is designed to endure extreme stress and mechanical loads. Whether used in high voltage power fittings or standard distribution systems, it provides a secure and stable grip on the conductor.

2. Excellent Corrosion Resistance

With hot-dip galvanized steel or aluminum alloy construction, a Tension Clamp resists rust, moisture, and chemical corrosion, ensuring long service life in outdoor environments.

3. Safe and Reliable Grip

Unlike other conductor fittings, the Tension Clamp distributes pressure evenly, preventing surface damage and minimizing the risk of conductor breakage. This reliability is why it is one of the most trusted transmission line accessories.

4. Ease of Installation

Many Tension Clamps are designed for quick installation. A wedge-type Cable Tension Hardware clamp, for example, allows fast assembly with minimal tools, reducing labor costs.

5. Versatility

A Tension Clamp can be applied in multiple scenarios, from overhead line clamps in urban grids to dead end tension clamps in large-scale transmission projects.

6. Extended Service Life

When installed properly, a Tension Clamp can last more than 20 years, making it a cost-effective investment for power utilities.

Application Scenarios

• Overhead Transmission Lines

The Tension Clamp secures conductors at terminal towers, ensuring mechanical stability in high-voltage systems.

• Power Distribution Networks

As a reliable Power Line Fitting, it anchors low and medium-voltage lines in both rural and urban distribution grids.

• Railway Electrification

In railway systems, the Electrical Tension Clamp provides secure anchoring for electrified railway conductors, ensuring safety and operational stability.

• Industrial Power Infrastructure

Industrial substations, plants, and factories use Tension Clamps for anchoring heavy-duty conductors in demanding conditions.

• Renewable Energy Projects

Cable Tension Hardware is also essential in wind farms and solar power systems, where long-span conductors must be reliably anchored.

Quality Assurance

Every Tension Clamp undergoes strict quality inspections to ensure compliance with international standards such as ASTM, and ANSI.

Quality checks include:

• Mechanical Load Testing – Confirms tensile strength and maximum load capacity.

• Corrosion Resistance Testing – Ensures durability in outdoor and coastal environments.

• Conductor Grip Performance – Verifies secure installation without damaging the conductor surface.

• Long-Term Durability Testing – Simulates decades of use to guarantee product reliability.

By adopting advanced manufacturing technologies and premium raw materials, manufacturers ensure that each Tension Clamp delivers consistent performance and safety.

FAQ

Q1: What is a Tension Clamp used for?

A1: A Tension Clamp anchors and secures electrical conductors at the end or angle of overhead transmission lines.

Q2: What materials are Tension Clamps made of?

A2: Common materials include galvanized steel, aluminum alloy, and stainless steel, depending on environmental needs.

Q3: Can a Tension Clamp be reused?

A3: Most Dead End Tension Clamps are designed for permanent installation, so reusing is not recommended.

Q4: How long does a Tension Clamp last?

A4: With proper installation and quality materials, a Tension Clamp can last 20–30 years.

Conclusion

The Tension Clamp is an indispensable Power Line Fitting that provides secure anchoring, high mechanical strength, and long-term reliability in overhead line systems. From transmission lines to renewable energy projects, the Tension Clamp plays a vital role in ensuring the safety, stability, and efficiency of power networks.

With its proven advantages—strength, corrosion resistance, and ease of installation—the Electrical Tension Clamp continues to be the preferred choice for engineers, contractors, and utilities worldwide. Investing in high-quality Tension Clamps means investing in the long-term stability of modern electrical infrastructure.

YUEQING REACON ELECTRIC CO., LTD. is committed to providing top-quality power fittings that meet global standards, supporting customers with professional solutions and long-term reliability.Click here to get the quotation.
