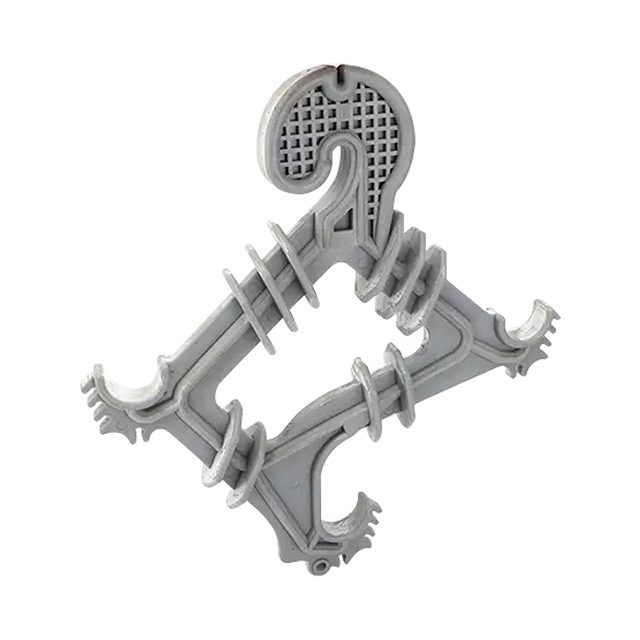

22-33kv Polyethylene Cable Spacer

Density polyethylene cable spacer.It's a new material for transmission line cable spacer.It's suits for polluted area or salty coastal area in tropical zone.Mainly applied in electrical syetem of 15kV,22kV and 35kV.
Availability:
Quantity:
Inquire Add to Basket

22-33kv Polyethylene Cable Spacer
Cable Spacer Polyethylene HDPE Insulator 22-33kv
Product Description

Characteristics:

1.Unbreakable and light weight

2.Easiest handing and transportation

3.Water repelling surface

4.Long service life

5.Non-toxic,non-standing and recyclable


Main Dimensions and Standard Particulars:

Rated Voltage of system Line to Line up to22-33kV
Electrical CharacteristicsLow-Frequency withstand voltage dry 1 min70kV
Low-Frequency flashover voltage dry
90kV
Critical dry impulse flashover voltage-positive130kV
Mechanical CharacteristicsUltimate mechanical strength8000N
Main Dimensions(mm)D357
H340
h55
C1250
C2250
Weight(kg)1.2
Qty(pcs)/Ctn6
Qty(pcs)/20FT
2520
