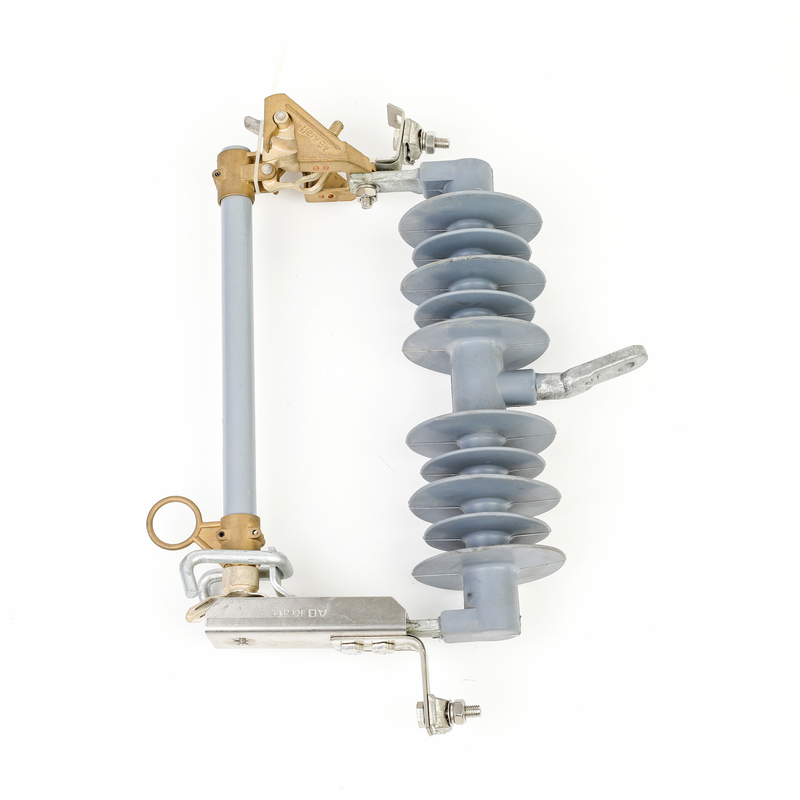

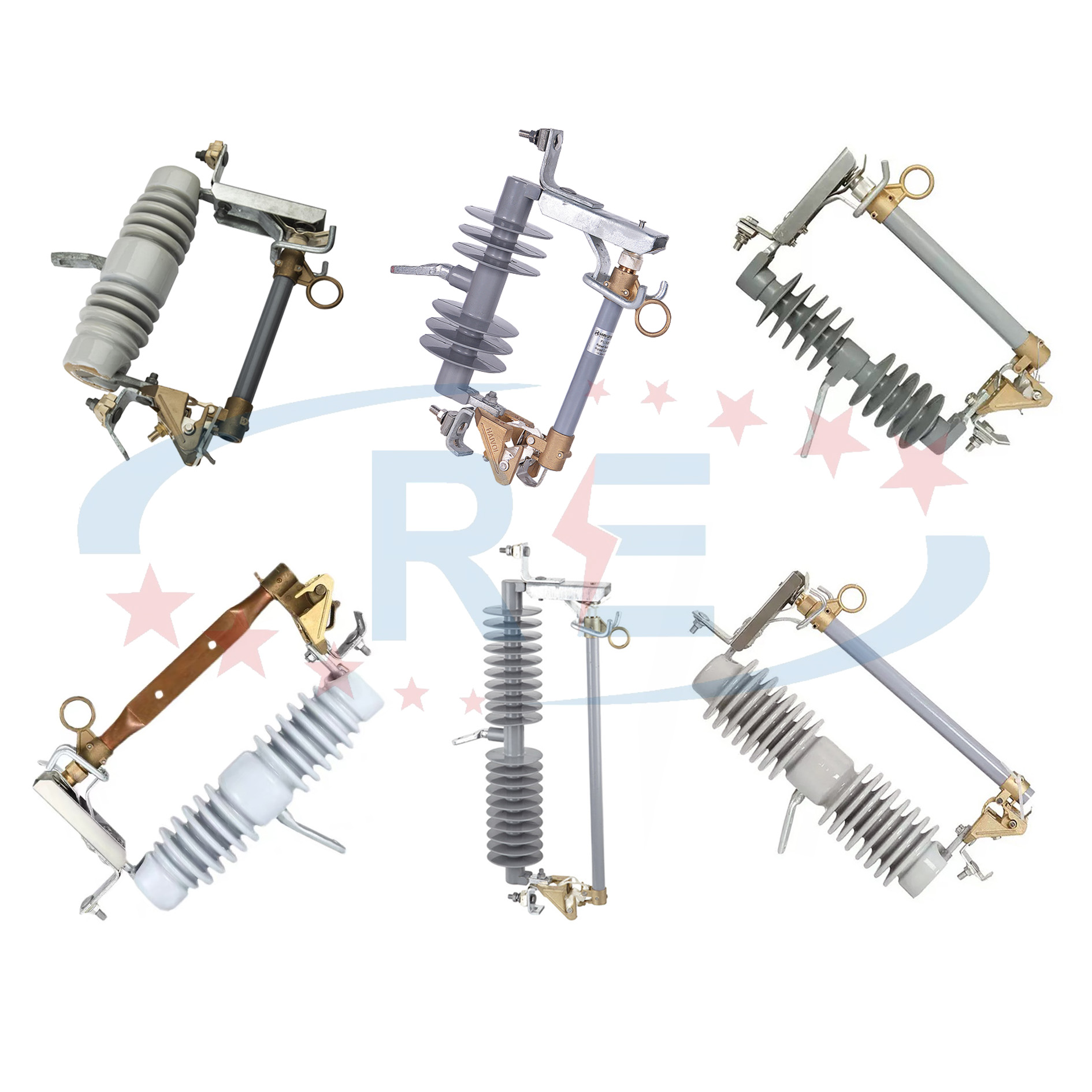

Dropout fuse is the most commonly used short-circuit protection switch for 10kV distribution line branch lines and distribution transformers.
Features:
Provide protection to the line of distribution system and the various apparatus on those line such as transformers and capacitor banks.lt can also be used as a sectionalizing device.Using a portable loadbreak tool,it can function much like an overhead line disconnect switch.
Maximum design voltage from 10Kv-38kv;Maximum Rating current 100-200A
Parameter：
| Rated voltage(KV) | Rated current(A) | Rated interrupting current(KA) | Lightning impulse withstand voltage to ground (BIL KV) | Minimum power frequency withstand dry voltage to ground (KV) | Minimum creepage distance(mm) |
| 11-15 | 100/200 | 12 | 110 | 42 | 220 |
| 11-15 | 100/200 | 12 | 125 | 50 | 320 |
| 24-27 | 100/200 | 12 | 150 | 65 | 470 |
| 33-38 | 100/200 | 8 | 170 | 70 | 660 |
| 33-38 | 100/200 | 8 | 170 | 70 | 720 |
| 33-38 | 100/200 | 8 | 170 | 70 | 900 |
