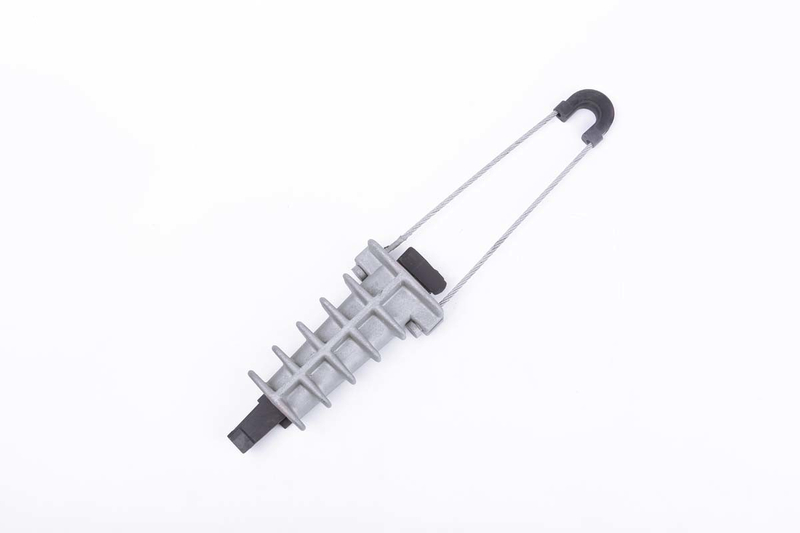

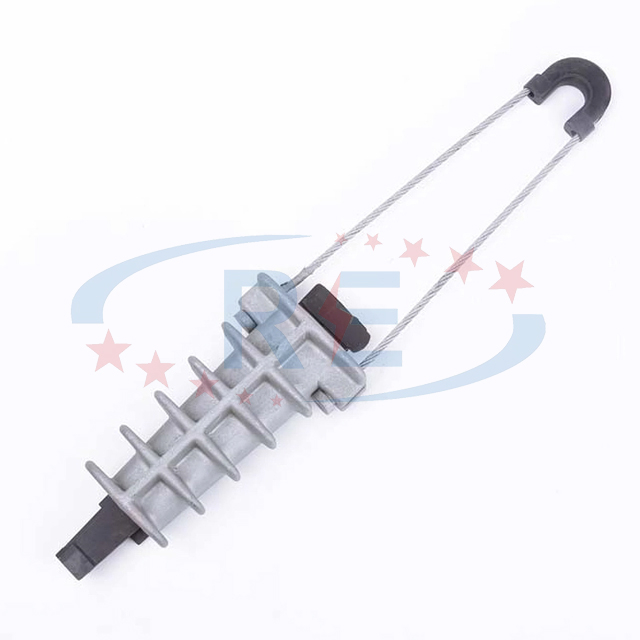

6-10mm² Plastic Dead end Clamp

Availability:

Quantity:



Inquire Add to Basket

Tension Clamp Metal Fitting Dead End Clamp Tension Clamp clamp

Product Description

6-10mm Plastic Dead end Clamp 4x16-35mm²

The Dead End Clamp (Tension clamps, Anchor Clamp) are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp.

Standard: NFC33-042

Technical Specification

Dimension
Weight:	142g
Cable Size:	6-10 mm²
Mechanical
Breaking Load	2.5kN
Specification
Use:	For dead-ending of cables with round shape.
Construction	Component	Material
	Body and Wedge	Weather and UV-radiation resistant thermoplastic
	Bail	Hot-dip galvanized steel
Installation	The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained.
Standard	NFC 33-042; EN 50-483
