Dead End Clamp: Reliable Anchor for Overhead Line Conductors

Dead End Clamps Are Essential

In modern electrical distribution and transmission systems, one of the biggest challenges is maintaining conductor tension while ensuring safety and long service life. The Dead End Clamp is designed to anchor conductors securely at the end of a span or at angle/tension points. It transfers mechanical load from the conductor to the pole or tower, preventing slippage and minimizing stress on the system.

The Dead End Clamp is widely used in transmission line hardware and distribution networks for both overhead and aerial bundled conductors (ABC). Its role in stabilizing conductors makes it a key part of pole line hardware assemblies.

What Exactly Is a Dead End Clamp?

A Dead End Clamp—sometimes called a tension clamp—is a mechanical fitting that grips conductors firmly without damaging them. It is available in several designs:

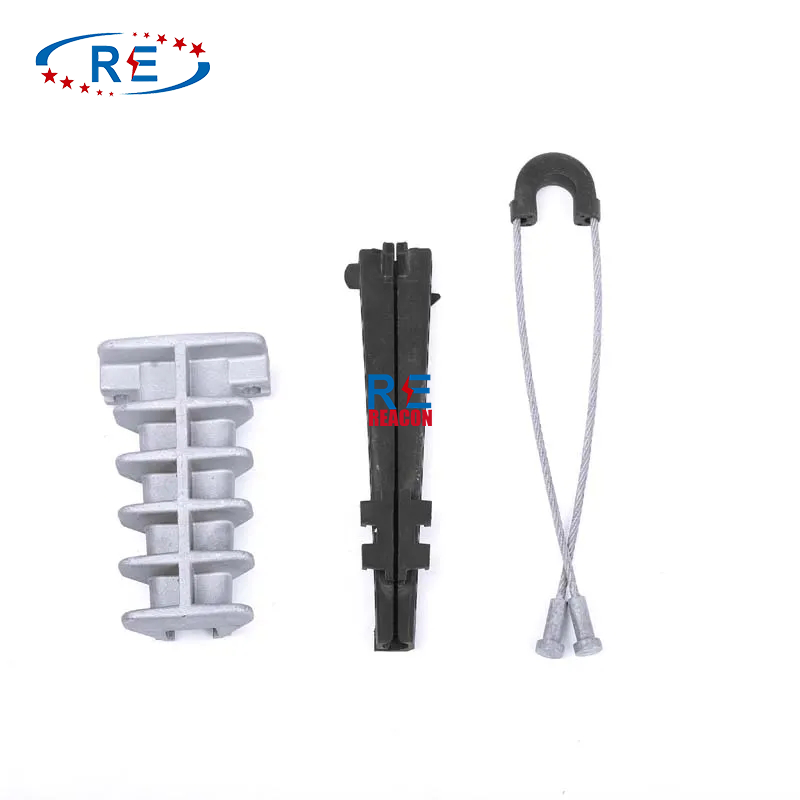

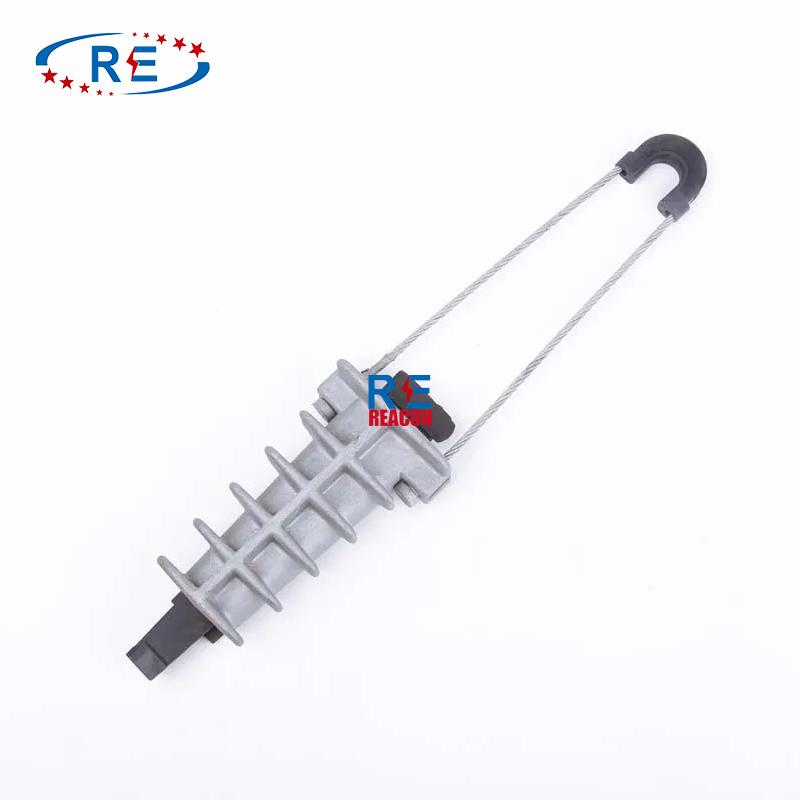

• Wedge-Type Dead End Clamp – commonly used for ABC cables, easy to install without tools.

• Bolted Dead End Clamp – uses bolts to secure the conductor, suitable for heavier loads.

• Compression Dead End Clamp – crimped using hydraulic tools for long-term, permanent connections.

Regardless of type, the Dead End Clamp ensures safe conductor anchoring in power line systems.

Main Features of Dead End Clamps

• High Mechanical Strength – Designed to carry full conductor tension without slipping.

• Durability – Made from aluminum alloy, hot-dip galvanized steel, or polymer composites.

• Corrosion Resistance – Surface-treated to withstand harsh environments.

• Easy Installation – Especially for wedge-type clamps, no special tools are needed.

• Wide Compatibility – Works with aluminum, copper, and ABC conductors.

Advantages of Using Dead End Clamps

1. Secure Load Transfer

Transfers conductor load directly to towers or poles.

2. Long Service Life

Hot-dip galvanized Dead End Clamps resist rust and wear, extending reliability.

3. Flexibility in Application

Suitable for high-voltage, medium-voltage, and low-voltage lines.

4. Reduced Maintenance

Once installed, the Dead End Clamp requires minimal attention.

5. Safety and Stability

Prevents line sagging, breakage, and accidental contact.

Where Dead End Clamps Are Applied

The Dead End Clamp is one of the most versatile pieces of pole line hardware. Its application fields include:

1. Transmission Lines

• Used at dead-end towers, tension towers, and angle towers.

• Provides strong anchoring for long-span overhead conductors.

2. Distribution Networks

• Secures conductors at end poles, junction points, or branch lines.

• Widely applied in urban and rural electricity distribution systems.

3. Aerial Bundled Cable (ABC) Systems

• Wedge-type Dead End Clamps are especially suited for ABC lines.

• Provide tool-free, reliable connections for secondary distribution.

4. Renewable Energy Grids

• Applied in solar and wind projects to anchor service lines connecting renewable energy to local distribution networks.

5. Industrial and Commercial Power Systems

• Heavy-duty Dead End Clamps used for plant, refinery, and factory power systems.

• Maintain conductor stability in demanding environments.

6. Railway and Infrastructure Electrification

• Essential for securing conductors in railway overhead contact systems.

• Ensures stable and safe operation under constant vibration.

Quality Assurance for Dead End Clamps

To guarantee performance, manufacturers subject Dead End Clamp fittings to strict quality checks:

• Material Tests: Aluminum alloy and galvanized steel tested for strength.

• Mechanical Load Tests: Ensure clamps can carry maximum conductor tension.

• Corrosion Resistance Tests: Verify performance in coastal or industrial regions.

• Standard Compliance: Must meet IEC, ANSI, and ASTM standards.

This ensures every Dead End Clamp delivers reliable service over decades of operation.

Frequently Asked Questions

Q1: What is the difference between a Dead End Clamp and a Suspension Clamp?

A: The Dead End Clamp anchors conductors under full tension, while the Suspension Clamp supports conductors with some flexibility.

Q2: Can Dead End Clamps be reused?

A: Some wedge-type Dead End Clamps can be reused, but compression clamps are designed for single use.

Q3: Are Dead End Clamps suitable for all conductor types?

A: Yes. They are available for ACSR, AAAC, copper, and ABC conductors.

Q4: How do Dead End Clamps resist corrosion?

A: They are manufactured with hot-dip galvanization or anti-oxidation aluminum alloys.

Q5: Where are Dead End Clamps most critical?

A: They are essential in tension points of transmission towers, distribution poles, and renewable energy grids.

Final Thoughts

The Dead End Clamp plays a crucial role in ensuring the safety and reliability of power systems. By securely anchoring conductors, it prevents line sag, breakage, and outages.

From high-voltage transmission towers to urban distribution poles and renewable energy projects, the Dead End Clamp is indispensable in modern overhead line hardware. Choosing high-quality Dead End Clamp fittings reduces maintenance costs, improves system reliability, and guarantees safe power delivery for decades.

---

YUEQING REACON ELECTRIC CO., LTD. is committed to providing top-quality power fittings that meet global standards, supporting customers with professional solutions and long-term reliability.Click here to get the quotation.
