Reacon Insulation Piercing Connector for Low Voltage ABC Cable Branch Tap Connections

Simplifying Branch Connections in Insulated Cable Networks

Low-voltage aerial bundled cable (ABC) systems are widely used in modern distribution networks because they improve electrical safety and reduce conductor exposure. Creating branch connections on insulated conductors traditionally required stripping insulation before making electrical contact, increasing installation time and the possibility of cable damage.

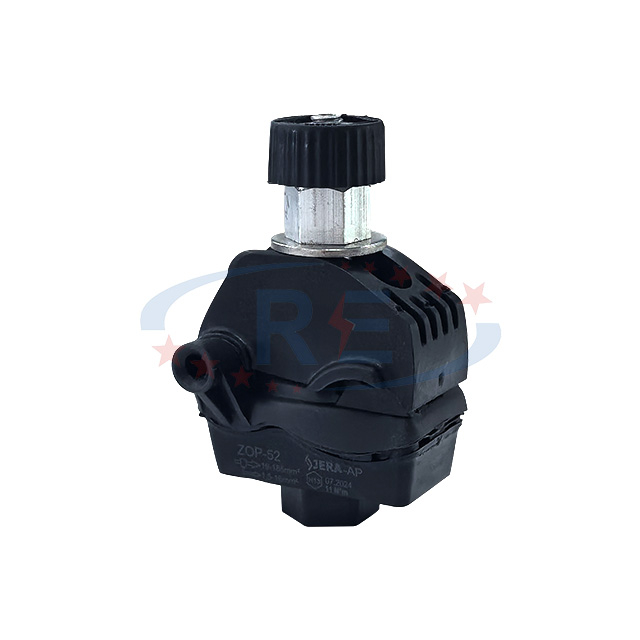

The Reacon Insulation Piercing Connector is designed to establish reliable branch tap connections without removing the insulation from the main conductor. During installation, the connector’s contact teeth pierce the insulation layer and create an electrical connection while maintaining the integrity of the cable insulation around the connection point.

This solution is commonly used in utility distribution systems, service drop installations, public lighting networks, and residential electrical infrastructure.

Product Information

Designed for ABC Cable Branch Tap Applications

The connector is specifically developed for insulated conductor systems where fast and consistent branch connections are required.

Key product features include:

• Suitable for low-voltage ABC cable systems

• No insulation stripping required

• Designed for branch tap connections

• Sealed structure for outdoor service

• Compatible with insulated aluminum and copper conductors (depending on model)

• Torque-controlled installation (model dependent)

• Suitable for new installations and network upgrades

• OEM manufacturing available

Features:

Insulation Piecring Connector enables quick low-voltage cable branching without stripping insulation.Its waterproof seal and durable,UV-resistant construction ensure reliable performance outdoors.A torque-controlled bolt provides consistent contact pressure for safe,effective connections with both aluminum and copper conductors.

Typical Installation Applications

This product is widely used in:

• Low-voltage aerial bundled cable networks

• Utility service drop connections

• Street lighting systems

• Residential distribution networks

• Commercial building power connections

• Rural electrification projects

• Temporary utility extensions

• Distribution network modernization

Improving Installation Efficiency

Compared with conventional connection methods, insulation piercing connectors simplify field work by eliminating insulation stripping and reducing installation steps.

Typical benefits include:

• Faster branch tap installation

• Reduced risk of conductor damage

• Consistent electrical contact

• Simplified field maintenance

• Suitable for outdoor utility environments

Suitable for Utility Distribution Projects

The Reacon Insulation Piercing Connector is suitable for:

• Electric utility companies

• Distribution network contractors

• Street lighting projects

• Residential power supply systems

• Commercial infrastructure

• Rural electrification programs

• EPC contractors

• Grid expansion and upgrading projects

Different conductor ranges and customized configurations are available to meet specific project requirements.

FAQ

What is an insulation piercing connector used for?

It is used to create branch tap connections on insulated conductors without removing the cable insulation.

Can the connector be used with ABC cables?

Yes. It is widely used in low-voltage aerial bundled cable (ABC) distribution systems.

Is insulation stripping required before installation?

No. The connector is designed to pierce the insulation and establish electrical contact directly.

Where is this connector commonly installed?

It is commonly used in service drops, street lighting systems, residential distribution networks, and utility branch connections.

Does Reacon provide different connector sizes?

Yes. Various conductor ranges and customized models are available according to project requirements.
