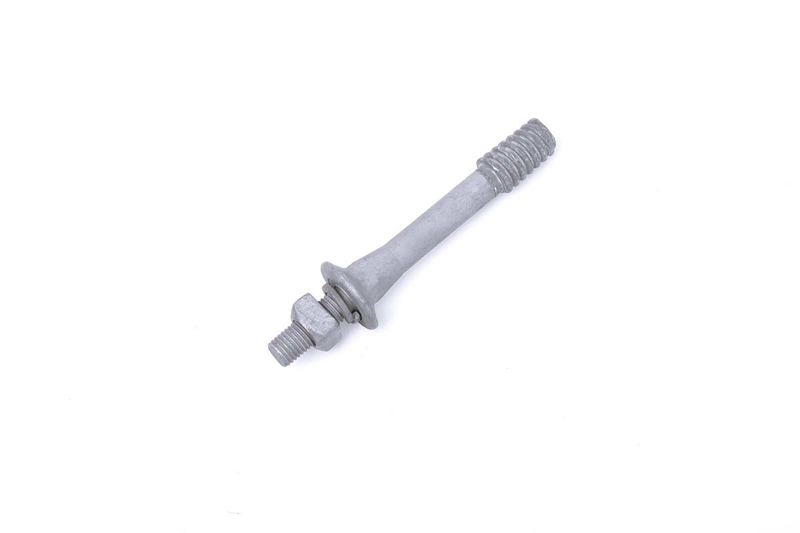

The RE High Voltage Insulator Crossarm Pin, 14" long with 7" height above crossarm and 5/8" diameter shank. Made with 1-3/8" lead/Nylon thread. Furnished WIth 2 1/4"x3/16" square washer, square nut and curved lock nut. Hot dip galvanized.
Parameter
| HE Code | Dimensions | For | |||||||
| A | B | C | D | E | F | G | d | crossarm | |
| IPTL5/8-1 | 6 1/2″ | 6″ | 2 3/4″ | 2″ | 1″ | 3 1/2″ | 1″ | 5/8″ | wood |
| IPTL5/8-2 | 7″ | 7″ | 3″ | 2″ | 1 3/8″ | 3 1/2″ | 1″ | 5/8″ | wood |
| IPTS5/8-3 | 1 3/4″ | 8″ | 2 1/8″ | 2″ | 1 3/8″ | 1 1/2″ | 1″ | 5/8" | Steel |
| IPTS3/4-1 | 1 3/4″ | 7″ | 3″ | 2 3/8″ | 1 3/8″ | 1 1/2″ | 1″ | 3/4″ | Steel |
| IPTL3/4-1 | 6 1/2″ | 5″ | 2 5/8″ | 2 1/8″ | 1″ | 2 1/2″ | 7/8″ | 3/4″ | wood |
| IPTL3/4-2 | 6 1/2″ | 6″ | 2 5/8″ | 2 1/8″ | 1″ | 2 1/2″ | 7/8″ | 3/4″ | wood |
| IPTL3/4-3 | 6 1/2″ | 7″ | 2 3/4″ | 2″ | 1″ | 3 1/2″ | 7/8″ | 3/4″ | wood |
| IPTL3/4-4 | 7″ | 7″ | 3″ | 2″ | 1 3/8″ | 3″ | 1″ | 3/4″ | wood |
| IPTL3/4-5 | 7″ | 8″ | 3″ | 2″ | 1 3/8″ | 3″ | 1″ | 3/4″ | wood |
| IPTS3/4-5 | 1 3/4″ | 8″ | 2 1/8″ | 2″ | 1 3/8″ | 1 1/2″ | 1″ | 3/4″ | Steel |
| IPTL3/4-6 | 7″ | 10″ | 3 1/2″ | 2 1/8″ | 1 3/8″ | 3 1/2″ | 1 1/8″ | 3/4″ | wood |
