In today’s rapidly evolving power-transmission environment, the role of auxiliary components such as spacers, clamps and insulators is more critical than ever. With more focus on efficient overhead lines, better insulation, and resilience in challenging conditions, accessories like a well-designed cable spacer are not a mere add-on but a vital link in the chain. This article focuses on the “polyethylene cable spacer” — a modern solution that has started to attract strong interest for overhead conductor systems.

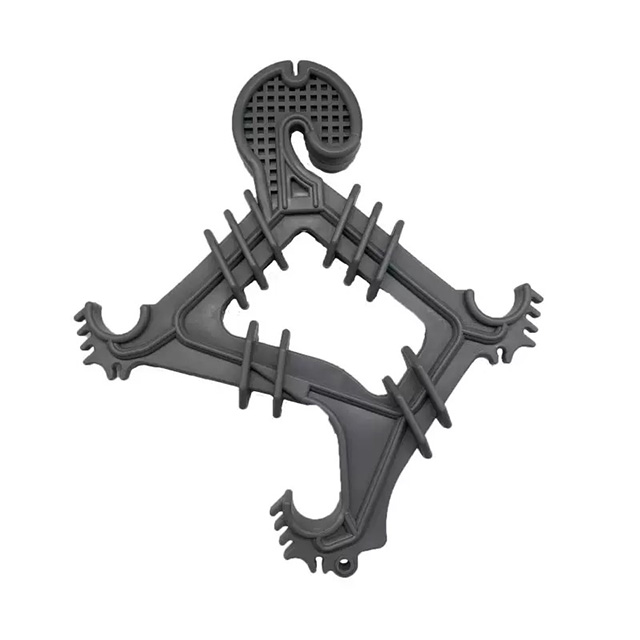

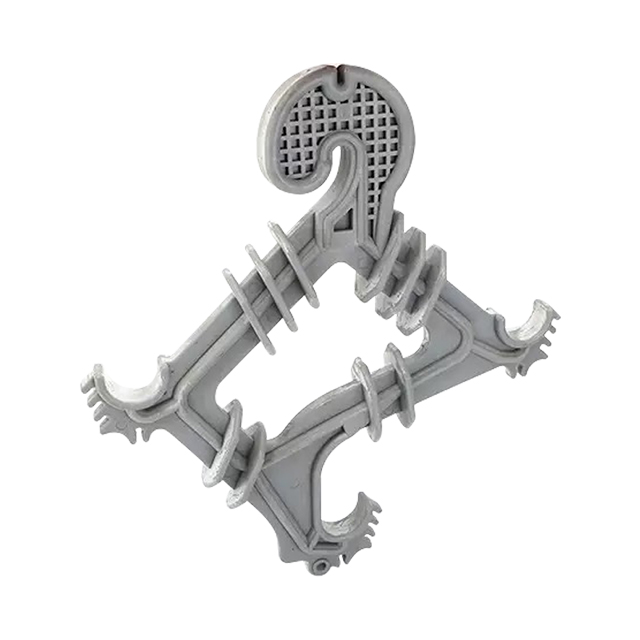

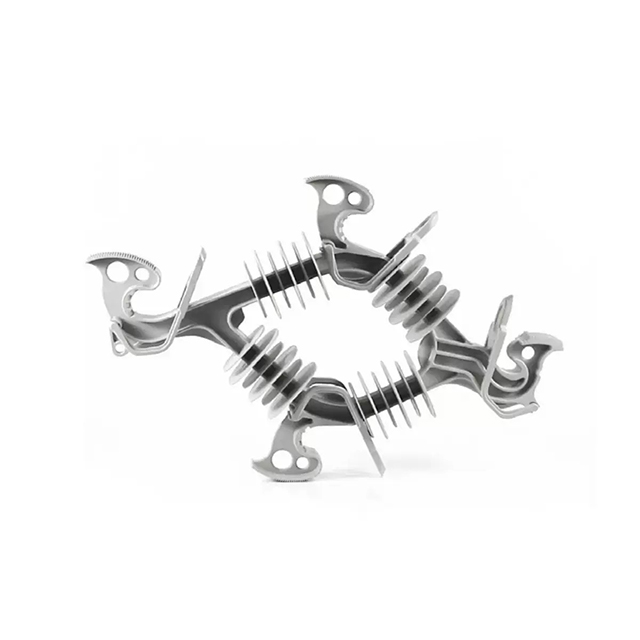

A polyethylene cable spacer is a device used in overhead cable systems (especially aerial bundled conductors (ABC) or phase-conductor systems) to maintain correct spacing between conductors, to prevent clashing or galloping, and to support layout stability. It is moulded or fabricated from polyethylene (or modified/high-density polyethylene) material. For example, one supplier describes a “density polyethylene cable spacer … suits for polluted area or salty coastal area in tropical zone” for 15 kV, 22 kV and 35 kV systems.
There are several reasons why polyethylene (PE) or high-density polyethylene (HDPE) is chosen:
Lightweight yet robust plastic that resists fracture or severe impact.
Good dielectric properties: the insulating material helps prevent flashover and offers long leakage distances.
Resistant to weather, UV and contaminated environments (especially when modified).
Economical and easier to handle than heavy insulators or metal spacers.
In short, the term “polyethylene cable spacer” covers products whose body material is PE/HDPE and whose function is conductor spacing and structural support in overhead line systems.
Here we examine the standout attributes of high-quality polyethylene cable spacer products.
The use of high-density polyethylene (HDPE) or modified polyethylene provides excellent durability and weather resistance.
The material is also lightweight and easier to transport and install.
Non-toxic and recyclable in many cases — enabling more sustainable infrastructure.
High leakage distance and dielectric strength help prevent flashover under polluted conditions.
Resistance to shock, impact or harsh mechanical stress.
Some types are designed for installation with hot-line tools (indicative of live-line maintenance capability).
Suitable for polluted areas, salty coastal zones, tropical climates.
The weather-washing performance (self-cleaning under rain) is often emphasised.
• • Maintains correct phase spacing and reduces conductor gallop or contact risk.
• • Improves insulation performance in overhead cable systems by using insulating body rather than metal.
• • Simplifies installation logistics due to lighter weight and fewer lifting constraints.
• • Reduces maintenance costs because of long service life and resistance to contaminants.
• • Enables safer live-line operations in some designs.

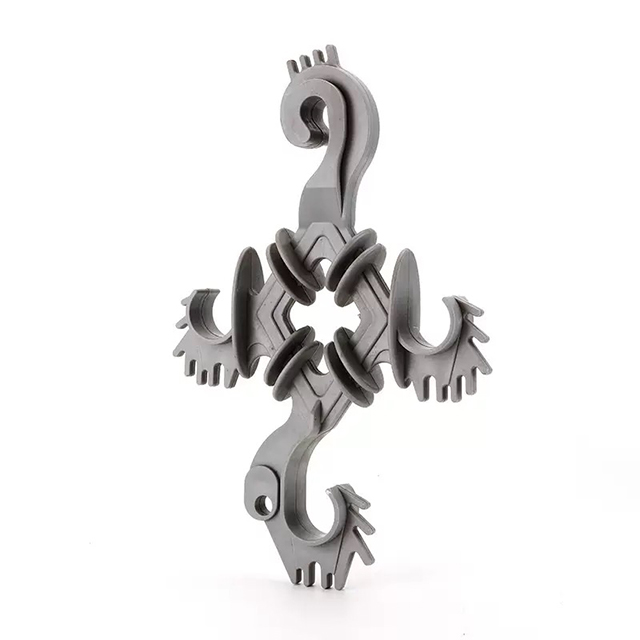

In many utility networks, three conductors are arranged overhead in bundles or spaced configuration. Using a polyethylene cable spacer ensures stable geometry and prevents phase conductors from undesired movement or contact. One HDPE spacer product is described as “mounted on a messenger wire… supports and separates the messenger and phase conductors in a diamond configuration” for 15 kV systems.
In coastal or industrial zones where salt spray, heavy pollution or strong UV can degrade traditional materials, a modified polyethylene cable spacer becomes highly favourable. One supplier states explicitly that their “density polyethylene cable spacer … suits for polluted area or salty coastal area in tropical zone”.
When upgrading existing overhead systems to aerial bundled conductor (ABC) or modern pole-mounted layouts, spacers made of polyethylene offer a cost-effective accessory with good performance. Their ease of installation means they are suited both for new installations and retrofit/maintenance contexts.
Select a spacer compatible with the system voltage (e.g., 15kV, 22kV, 35kV).
Ensure it supports the conductor size, type and messenger size (if used) as the mechanical load requirements differ. For instance: the “RTL-15” HDPE spacer supports up to conductor size 2.0 in and 13.5 kA short-circuit rating.
The phase spacing required depends on conductor layout (diamond, triangle, horizontal) — the spacer must maintain correct spacing for insulation and clearance.
Determine if standard HDPE is sufficient or if a modified/UV-stabilised polyethylene is needed for harsh environments. One product mentions “modified polyethylene 15kV-35kV cable spacer HDPE”.
Confirm UV and track resistance, weather profiling, and mechanical reinforcement features.
Follow manufacturer’s mounting interval recommendations: e.g., one product suggests mounting at 30-foot (≈9 m) intervals.
Consider anti-sway brackets or accessories if the span or messenger system allows conductor sway.
For maintenance access or hot-line tool compatibility, verify the spacer design (ratcheting clamps, integrated attachments, etc).
In polluted environments, spacing and geometry can significantly affect leakage current and flashover – the spacer plays a role in increasing leakage path and preventing contaminant bridging.
Visual inspection for cracking, UV degradation, or mechanical damage.
Check for any conductor movement or abnormal spacing which might indicate spacer failure or loosening.
Monitor leakage currents or partial discharge (if applicable) in proximity to the spacer region, especially in polluted zones.
Although polyethylene spacers are designed for long service life, environmental extremes (coastline salt, strong UV, industrial pollution) may shorten life.
If conductor spacing has changed (e.g., system upgrade) or new standards require different layout, replacement is prudent.
If mechanical damage from wind, vibration or external impact is found, immediate replacement is required.
Many products claim “long service life” and resistance to impact, UV, weather-washing.
Choosing a spacer from a proven manufacturer (such as the one listed by Reacon) ensures quality materials and testing standards are met.
Metal spacers often require additional insulation or coatings; aluminium or steel spacers can corrode, especially in polluted/coastal environments. PE spacers eliminate some corrosion risk.
Ceramic or porcelain insulators are durable but heavier and more costly. PE spacers provide lighter weight, simpler handling and lower cost.
Polymer insulators are used widely, but a dedicated polyethylene cable spacer is purpose-designed for conductor spacing rather than pure insulation function — hence optimised for overhead line layouts.
The lighter weight reduces logistics and installation cost.
Better dielectric and leakage performance in contaminated environments reduces risk of flashover and maintenance outage.
By maintaining correct conductor spacing, the risk of phase-to-phase or phase-to-ground contact is reduced, enhancing reliability.
As utilities push for higher reliability, lower maintenance overhead and adaptation to adverse environmental conditions, accessories such as high-quality polyethylene cable spacers become part of the overall system optimisation.
The push toward ABC (aerial bundled conductors), more compact pole-mounted solutions, and installations in remote or harsh regions mean that lightweight, weather-resistant spacers are increasingly favoured.
The description from a manufacturer: “It’s a new material for transmission line cable spacer … mainly applied in electrical system of 15kV, 22kV and 35kV.”
In summary, a polyethylene cable spacer is an increasingly important component in modern overhead conductor systems. Thanks to its insulating material (HDPE or modified polyethylene), mechanical robustness, lightweight design and suitability for harsh environmental conditions, it offers utilities and system designers a compelling solution for conductor spacing, stability and reliability.
For companies seeking to deliver high-quality accessories that align with contemporary overhead line demands, Reacon stands at the forefront: our polyethylene cable spacers are engineered for real-world conditions — from polluted industrial zones to coastal circuits. We invite users, specifiers and engineers to explore how upgrading to an engineered polyethylene cable spacer from Reacon not only enhances system performance, but also helps fulfil long-term infrastructure reliability and social responsibility in power delivery.
Let Reacon help you build overhead systems that demand less maintenance, offer greater resilience and deliver the reliability that modern power grids require.
