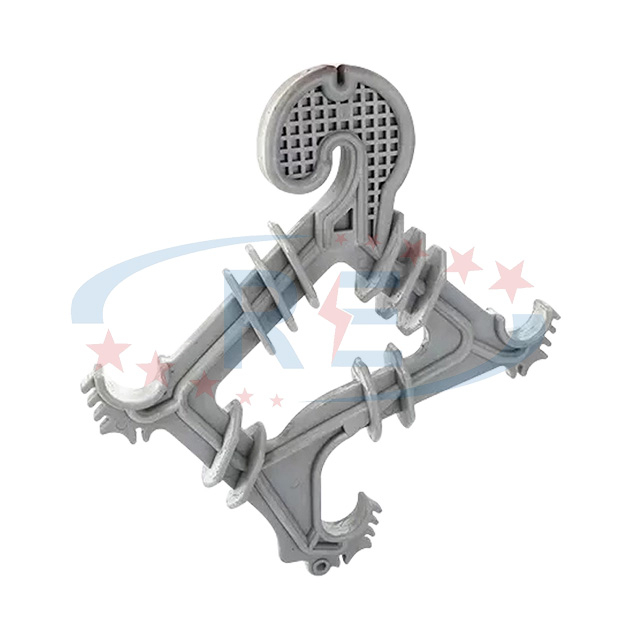

The 22–33kV Polyethylene Cable Spacer is designed to maintain proper spacing and alignment of overhead insulated or covered conductors in medium and high voltage distribution lines. Made from high-strength polyethylene, this high voltage cable spacer offers excellent electrical insulation, mechanical stability, and resistance to UV radiation and harsh outdoor environments. It effectively prevents conductor clashing, vibration damage, and phase-to-phase contact, improving the overall safety and reliability of overhead power systems.
Designed for 22kV–33kV overhead distribution systems
High-strength polyethylene material with excellent insulation
Lightweight structure reduces line load
Effectively maintains conductor spacing
Prevents conductor galloping and phase collision
Strong resistance to UV, moisture, and aging
Smooth surface minimizes cable abrasion
Suitable for covered and insulated conductors
Easy installation with standard line tools
Improves long-term reliability of overhead lines
22kV–33kV overhead distribution lines
Covered conductor and insulated conductor systems
Urban and rural power distribution networks
Areas with strong wind or complex terrain
Lines requiring phase spacing control
• Select the appropriate polyethylene cable spacer according to conductor size and system voltage (22kV or 33kV).
• Position the spacer between adjacent phase conductors at designed intervals along the span.
• Secure the spacer firmly using built-in locking or clamping structures.
• Ensure conductors are evenly spaced to prevent contact during wind-induced movement.
• Periodically inspect spacers during line maintenance to ensure long-term performance.
| Rated Voltage of system Line to Line up to | 22-33kV | |
| Electrical Characteristics | Low-Frequency withstand voltage dry 1 min | 70kV |
| Low-Frequency flashover voltage dry | 90kV | |
| Critical dry impulse flashover voltage-positive | 130kV | |
| Mechanical Characteristics | Ultimate mechanical strength | 8000N |
| Main Dimensions(mm) | D | 357 |
| H | 340 | |
| h | 55 | |
| C1 | 250 | |
| C2 | 250 | |
| Weight(kg) | 1.2 | |
| Qty(pcs)/Ctn | 6 | |
| Qty(pcs)/20FT | 2520 | |
Manufactured from high-quality polyethylene material
Tested for electrical insulation and mechanical strength
UV and aging resistance verified for outdoor use
Strict quality control before delivery
Suitable for long-term outdoor power line operation
Q1: What is a polyethylene cable spacer used for?
A1: It is used to maintain proper spacing between overhead conductors and prevent phase collision.
Q2: Is it suitable for 33kV overhead lines?
A2: Yes, it is designed for 22kV–33kV distribution systems.
Q3: Can it be used with covered conductors?
A3: Yes, it is suitable for covered and insulated conductors.
Q4: Is the material resistant to UV and weather?
A4: Yes, polyethylene provides excellent UV and weather resistance.
Q5: Is installation complicated?
A5: No, installation is simple using standard overhead line tools.
