H Type Clamp

Product Description

The Aluminum H Type Clamp for grounding and bonding is specially designed for overhead distribution systems requiring reliable electrical continuity. Made of anti-corrosion aluminum alloy, this H type grounding connector provides secure bonding between conductors, ground wires, and structural fittings. Its lightweight structure and strong clamping force ensure long-term stability even in harsh outdoor environments. The aluminum H type clamp is widely used in grounding grids, pole line connections, transformer earthing links, and distribution equipment bonding.

Product advantages

1.High-strength aluminum alloy ensures excellent conductivity

2. Corrosion-resistant surface for long-term outdoor exposure

3. Strong clamping force maintains stable grounding and bonding

4.Compatible with multiple conductor sizes

5.Lightweight structure for easy field installation

6.Reliable performance for overhead distribution systems

Application Scenarios

1.Overhead Distribution Line Grounding:Clamp the grounding conductor and main line together using the aluminum H type grounding clamp to create a stable grounding path.

2.Bonding Between Pole Hardware:Used to bond brackets, crossarms, and metal fittings to ensure equal potential on the pole.

3.Transformer Earthing Link:Connect the transformer ground terminal to the ground wire using the H type aluminum bonding connector.

4.Substation Grounding Grid Extension:Link auxiliary grounding conductors to the main grid using the clamp for secure bonding.

5.Lightning Protection System:Provides a secure pathway between down-conductors and grounding rods.

Quality Assurance

Each aluminum H type clamp is tested for mechanical strength, contact resistance, corrosion resistance, and conductor holding capability. Manufactured under ASTM and utility standards.

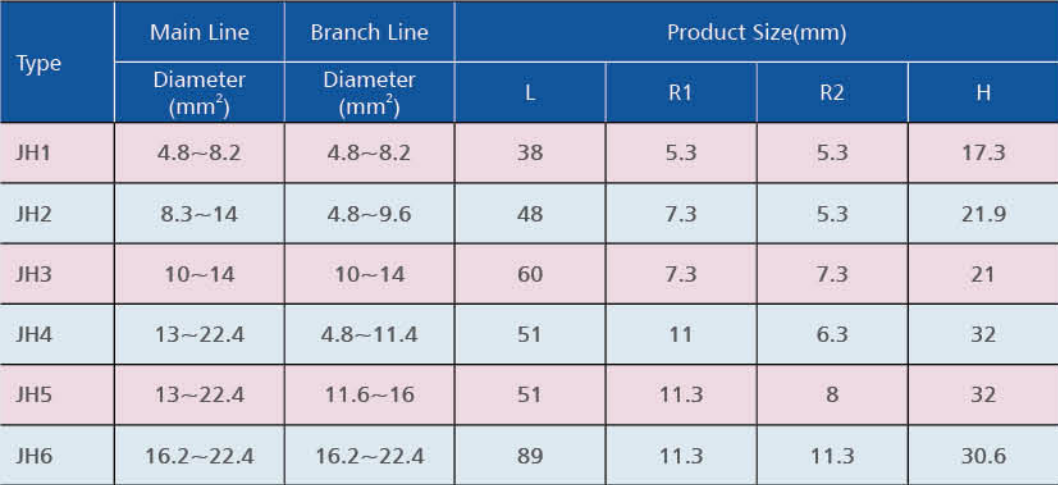

Parameter

FAQ

Q1: Can it be used outdoors long-term?

A1: Yes, the aluminum alloy provides excellent corrosion resistance.

Q2: Is it compatible with multiple conductor sizes?

A2: Yes, it supports various grounding and bonding conductors.

Q3: Does installation require special tools?

A3: Only standard crimping or clamping tools.
