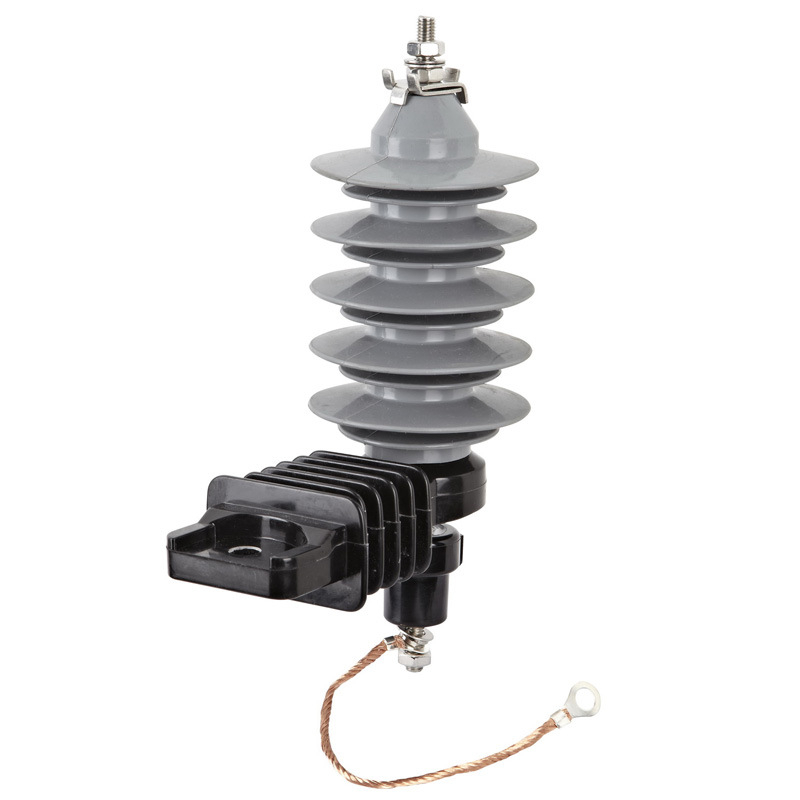

Zinc oxide lightning arrester is a lightning arrester with good protective performance. Utilizing the excellent nonlinear volt-ampere characteristics of zinc oxide, the current flowing through the lightning arrester at normal operating voltage is extremely small (microampere or milliampere level); When overvoltage occurs, the resistance drops sharply, releasing the energy of overvoltage to achieve protection.
1.Current handling capability: Surge arresters can effectively deal with various types of overvoltages, including lightning overvoltages, power frequency transient overvoltages, and operational overvoltages, demonstrating strong current handling capabilities.
2.Protection advantage: Zinc oxide lightning arrester, as an electrical protection equipment, plays a crucial role in the power system. It can protect various electrical equipment from overvoltage damage and demonstrate excellent protection performance.
3.Sealing reliability: the lightning arrester components use high-quality composite jackets, which not only have good anti-aging performance, but also have excellent air tightness.
4.Anti pollution capability: Zinc oxide lightning arresters have been designed with full consideration of anti pollution performance, thus possessing high anti pollution capability.
Type | MOA Rated voltage | MCOV | Current Impulse Residual Voltage | 2ms Rectangular current impulse withstand
| 4/10μs High current impulse withstand | ||
1/4μs Lightning current impulse KV(crest) | 8/20μs Lightning current impulse KV(crest) | 30/60μs Switching current impulse
| |||||
YH5W-9 | |||||||
9 | 7.65 | 33.7 | 27 | 23.8 | 150 | 65 | |
