RE-100R-E Series Meter Base Socket | Durable Weatherproof Meter Socket for Safe Residential & Commercial Power Connection

Meter Socket

Product Description：

The RE-100R-E Series Meter Base Socket is a durable and safe power connection solution designed for residential, commercial, and light industrial electrical distribution systems. This meter base socket ensures stable current flow, reliable protection, and long-term weather resistance. With a reinforced structure and corrosion-resistant materials, the RE-100R-E Series provides secure and accurate metering performance for utility power connections.

Product Advantages：

1. Heavy-duty construction for stable meter mounting

2. Weatherproof performance for outdoor use

3. Corrosion-resistant metal housing

4. Accurate and safe meter connection

5. Compatible with standard utility metering systems

6. Easy installation and maintenance


Application Scenarios：

1. Residential power metering installations

2. Commercial buildings requiring stable power connection

3. Outdoor wall-mounted electrical service entry

4. Light industrial facilities requiring accurate metering

How to Apply ：

• The meter base socket is installed on an exterior wall or meter panel using expansion bolts.

• Connect incoming service wires to the line terminals, ensuring proper torque.

• Connect load wires from the bottom terminals to the distribution panel.

• Snap-fit or bolt the utility meter into the socket for power activation.

Housing：

Die cast Aluminum electrostatically applied epoxy baked gray powder finished.Round type base.

NEMA 3R Rating for outdoor use.

Quality Assurance：

1. Manufactured according to UL and ANSI metering standards.

2. 100% electrical testing for safety, conductivity, and durability.

3. Corrosion-resistant coated metal ensures long service life.

4. Each unit undergoes strict visual and mechanical inspection.

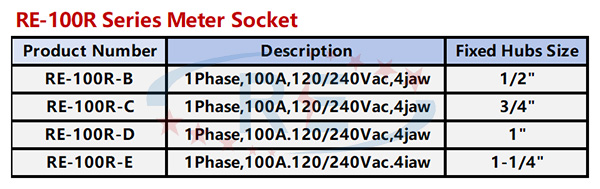

Parameter：

FAQ：

Q1: Is the RE-100R-E Series suitable for outdoor installation?

A1: Yes, it is fully weatherproof and designed for long-term outdoor use.

Q2: What amperage does this meter base support?

A2: It typically supports standard 100A–200A service ratings.

Q3: Can it be used for commercial buildings?

A3: Yes, it is suitable for both residential and commercial metering.

Q4: Does it require special tools for installation?

A4: No special tools are required—standard electrical installation tools are sufficient.
